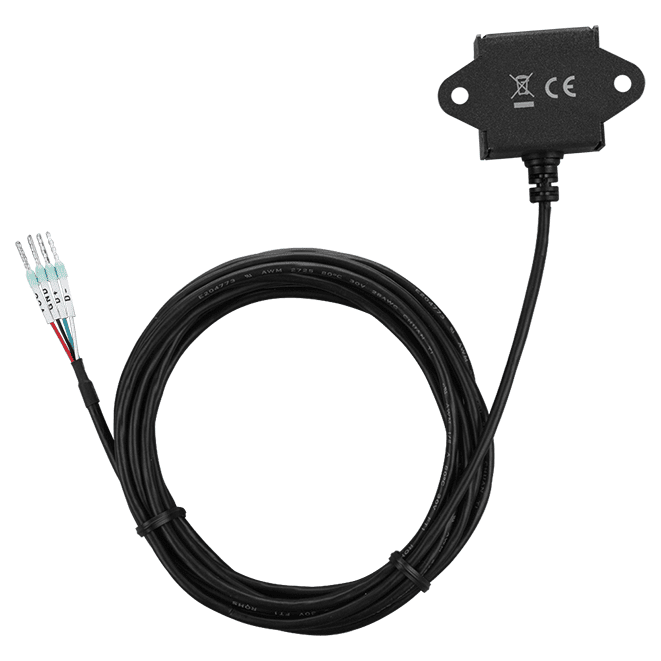

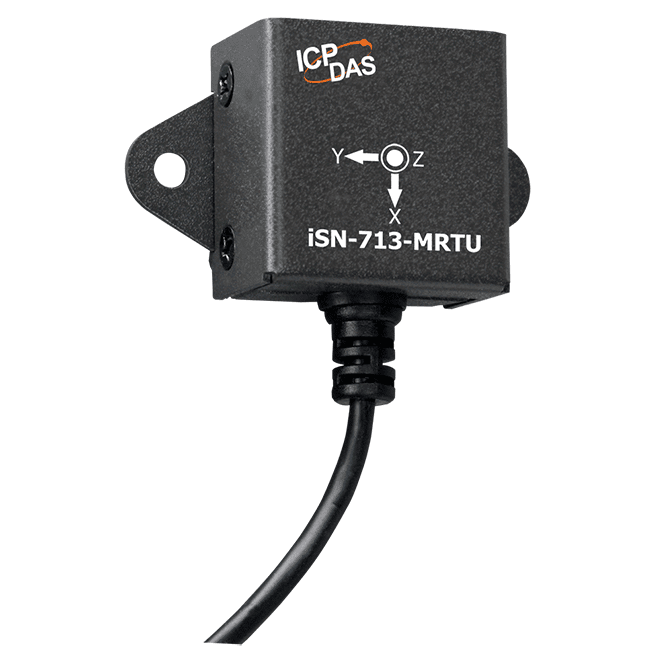

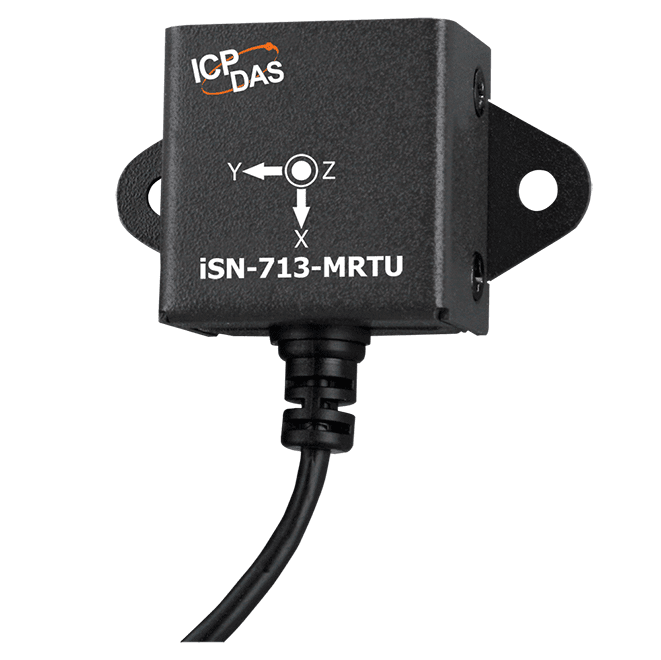

Three-axis vibration sensor module (RS-485)
Features
- 3-axis MEMS vibration measurement
- Suitable for low frequency vibration measurement
- Support Modbus RTU slave protocol
- Data Format:
• Acceleration: RMS, Maximum, P-P
• Velocity: RMS
• Displacement: P-P
• Crest Factor
• Top 20 spectrum values(Magnitude/Frequency)
- Vibration eigenvalues threshold alarm function
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The iSN-713-MRTU module is a three-axis vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor's data by RS-485 interface. The iSN-713-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.
| Model | Channel | Sampling Rate | Connector | Sensor Type | Interface | Analog Output | IP Code |
|---|---|---|---|---|---|---|---|
| iSN-701X-mA | 1 | 32/64 KHz | BNC | External IEPE accelerometer | Ethernet/ RS-485 |
0 ~ 20 mA 4 ~ 20 mA |
- |
| iSN-701X | 1 | 32/64 KHz | BNC | External IEPE accelerometer | Ethernet RS-485 |
N/A | - |
| iSN-711-MRTU | 1 | up to 1KHz | 4 Pin Terminals | Built-in MEMS | RS-485 | N/A | IP30 |
| iSN-713-MRTU | 3 | up to 1KHz | 4 Pin Terminals | Built-in MEMS | RS-485 | N/A | IP30 |
| iSN-711-MRTU-IP68 | 1 | up to 1KHz | 4 Pin Terminals | Built-in MEMS | RS-485 | N/A | IP68 |
| iSN-713-MRTU-IP68 | 3 | up to 1KHz | 4 Pin Terminals | Built-in MEMS | RS-485 | N/A | IP68 |
Application

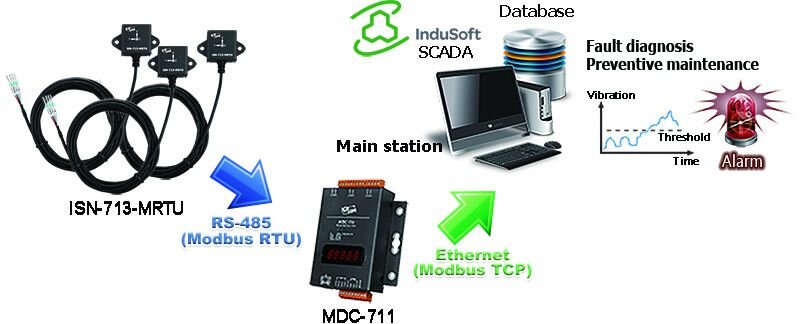

Vibration monitoring system
Specification
| Vibration Measurement | |
|---|---|
| Axes | 3 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.35 W@24VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 51 x 30 x 19 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
