8-ch Isolated Dl and 8-ch Isolated DO Expansion Board
Features
- Sink-type Digital Output
- Source-type Digital Input
- All Input Channels Can Be Used As 32-bit Counters
- Configurable Power-on Value Settings
- 70 VDC Overvoltage Protection for Digital Input
- Overload Protection for Digital Output
- Short-circuit Protection for Digital Output
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

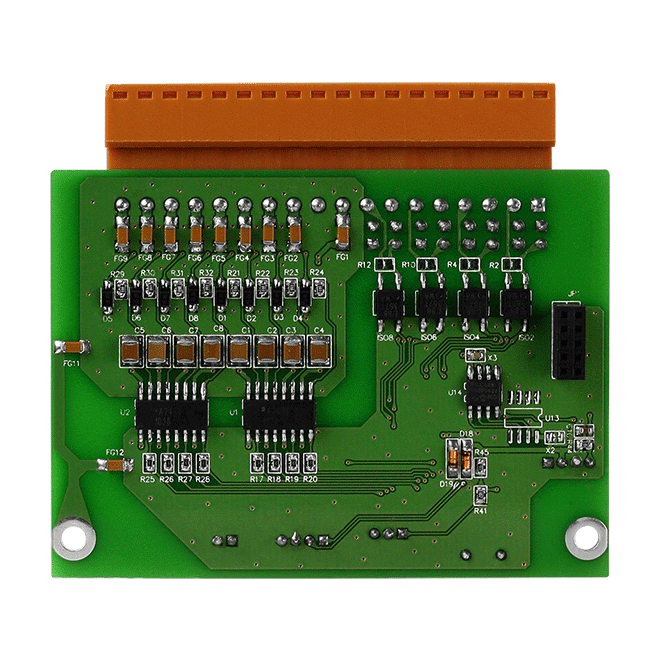

The XV107 provides 8 channels for digital input and 8 channels for digital output, each of which features photocouple isolation. The XV107 supports sink-type output with short circuit protection, while the input is source-type. All input channels can be used an 32-bit counters. There are options for configuring power-on digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The XV107A has the same specifications as the XV107, except that the input and output types are reversed.
| XV Board | |
|---|---|
| Model | Specification |
| DIO Expansion | |
| XV107 | 8x DI (Wet), 8x DO (NPN) |
| XV107A | 8x DI (Wet), 8x DO (PNP) |
| XV110 | 16x DI (Dry/Wet) |
| XV111 | 16x DO (NPN) |
| XV111A | 16x DO (PNP) |
Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Terminal |
| Digital Input / Counter | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | +3.5 ~ 50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4,294,967,285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | 3.5 ~ 50 VDC |
| Load Current | 700 mA / channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Ports | 1 × RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
|---|---|
| Consumption | 0.15 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm × 82 mm × 13 mm (W × L × H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
