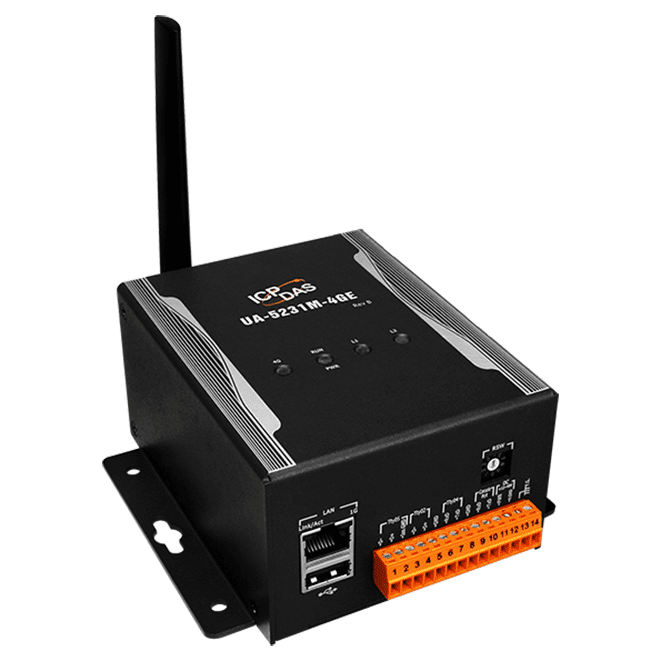

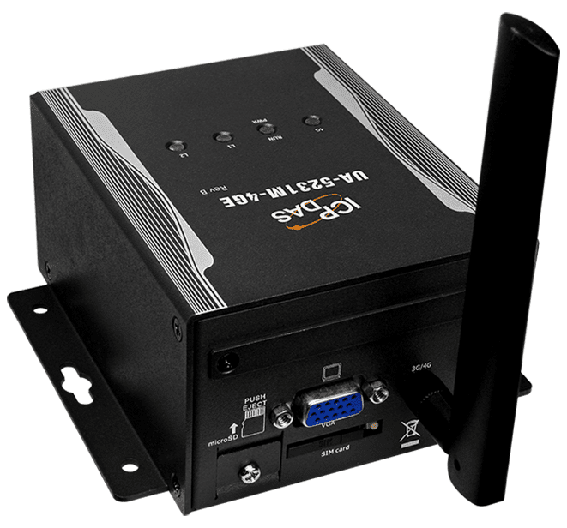

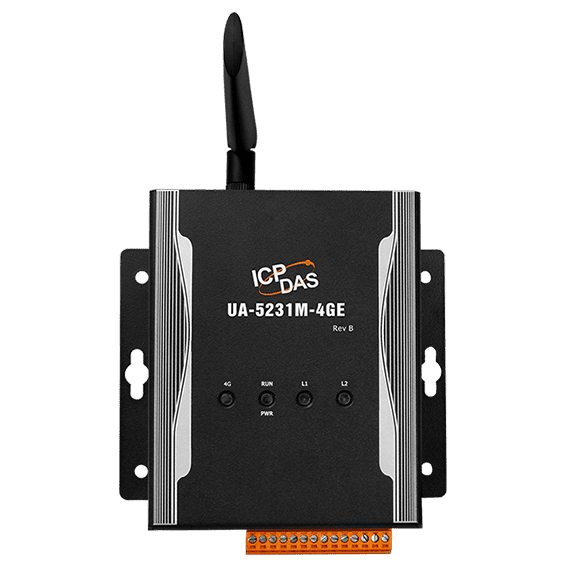

IIoT Communication Server with 1 Ethernet Port, 4G Communication
Features
- Simultaneous Writing for Remote Database and Local Data Logger
- Offline Data Recovery Mechanism for Remote Database
- Support to Enable OPC UA, MQTT and SNMP at the Same Time
- MQTT Broker (Including WebSocket)
- Support a Complete Information Protection Mechanism
- HTTPS, SNMP v3, Communication Encryption, Dynamic Blocklist, Whitelist
- IoT Cloud Platform Connection
- Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud
- IFTTT Logic Control Triggers the APP Notification Function
- PID Logic Operation Function
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

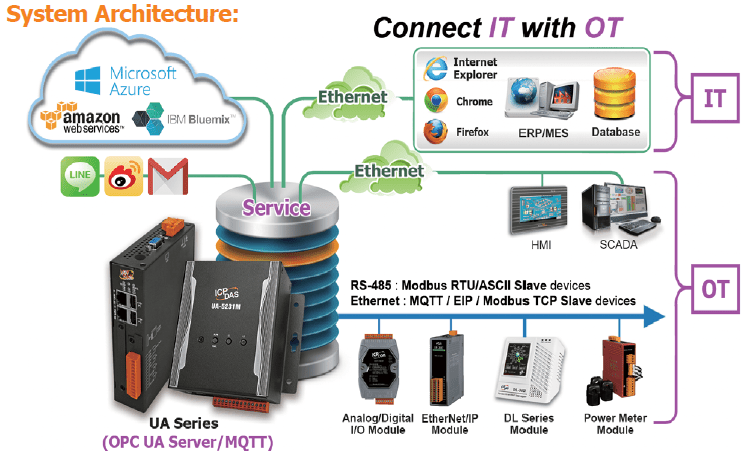

UA-5200 Series is a series of IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services (Support to execute OPC UA and MQTT communication at the same time). Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database, and save to the local file as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.
| Model | OS | CPU | SDRAM | Flash | Non-Volatile Memory |
microSD Card |
Ethernet Port |
RS-232/ RS-485 | Port Expansion | Wireless |
| UA-2241M | Linux Kernel 3.2.14 |
ARM CPU, 1.0 GHz |
DDR3 512 MB |
512MB | FRAM 64 KB |
4 GB (Max. 32 GB microSDHC) |
2 | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
1 (*1) |
- |
| UA-2241MX-4GE | 4G (*2) |
|||||||||
| UA-2241MX-4GC | ||||||||||
| UA-5231 | 8 GB | 1 | 1 (*1) |
- | ||||||
| UA-5231M | ||||||||||
| UA-5231M-3GWA | 3G | |||||||||
| UA-5231M-4GE | 4G (*2) |
Application
Specification
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card or SSD in CSV format. |
| Remote Database |
Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Recommend Max. 1 Database per Time, and Max. 1000 Tags. |
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Protocol | OPC UA Server MQTT Broker/Client Modbus TCP Master Modbus RTU/ASCII Master EtherNet/IP Scanner SNMP Agent |
| Function | Internal Module PID Function |
| IoT Service Integration | Microsoft Azure Amazon Web Services IBM Bluemix ThingSpeak IFTTT |
| Main Unit | |
|---|---|
| CPU | ARM CPU, 1.0 GHz |
| System Memory | DDR3 SDRAM 512 MB |
| Storage |
Flash 8 GB microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
|---|---|
| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
|---|---|
| Status |
1 x PWR/RUN 2 x User Defined LEDs 1 x 4G |
| 3G System | |
|---|---|
| Data Transmission Rate |
DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
|---|---|
| Data Transmission Rate | Download Max 100 Mbps; Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| I/O Expansion | |
|---|---|
| I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports(For Rev.B version only) (*1) |
| HMI | |
|---|---|
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| USB | |
|---|---|
| Connector | 1 x 2.0 host |
| Power | |
|---|---|
| Input Range | +12 ~ +48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
