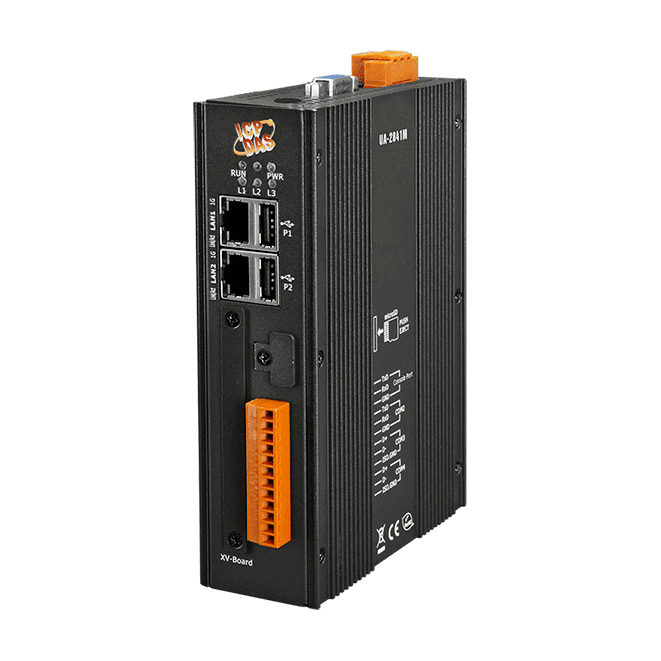

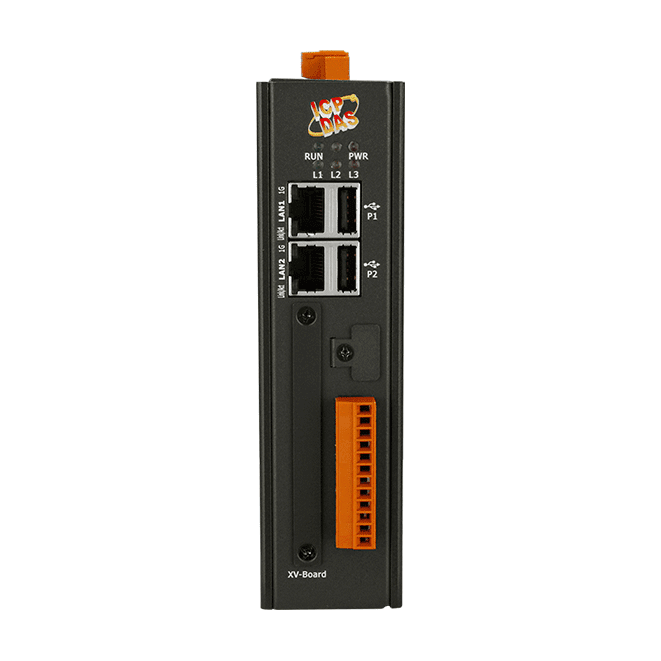

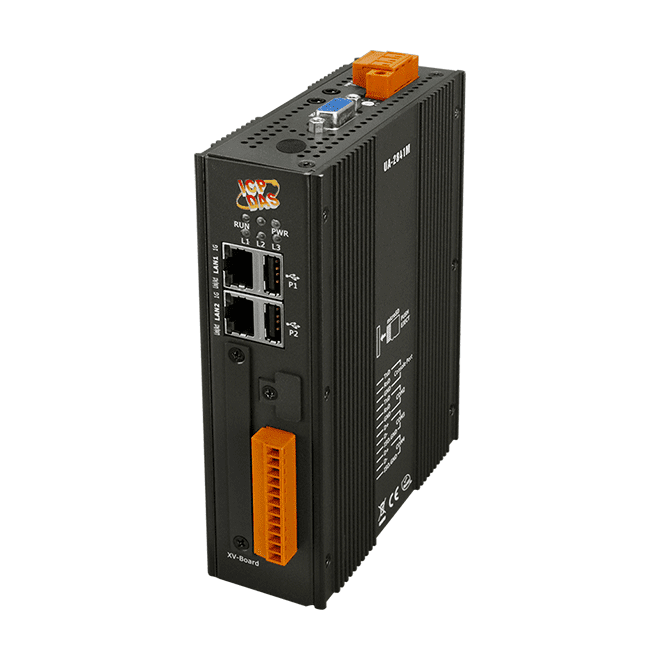

UA-2841M
UA-2841M
IIoT Communication Server with ARM Quad-core CPU and 2 Ethernet Ports
Features
- Simultaneous Writing for Remote Database and Local Data Logger
- Offline Data Recovery Mechanism for Remote Database
- Support to Enable OPC UA, MQTT, SNMP and RESTful at the Same Time
- MQTT Broker (Including WebSocket)
- Support a Complete Information Protection Mechanism
- HTTPS, SNMP v3, Communication Encryption, Dynamic Blocklist
- IoT Cloud Platform Connection
- Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud
- IFTTT Logic Control Triggers the APP Notification Function
- PID Logic Operation Function
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
UA-2841M is an IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services. Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database (MS SQL / MySQL / MariaDB), and save to the local fi le (.csv) as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive fi rst-hand notifi cation messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.

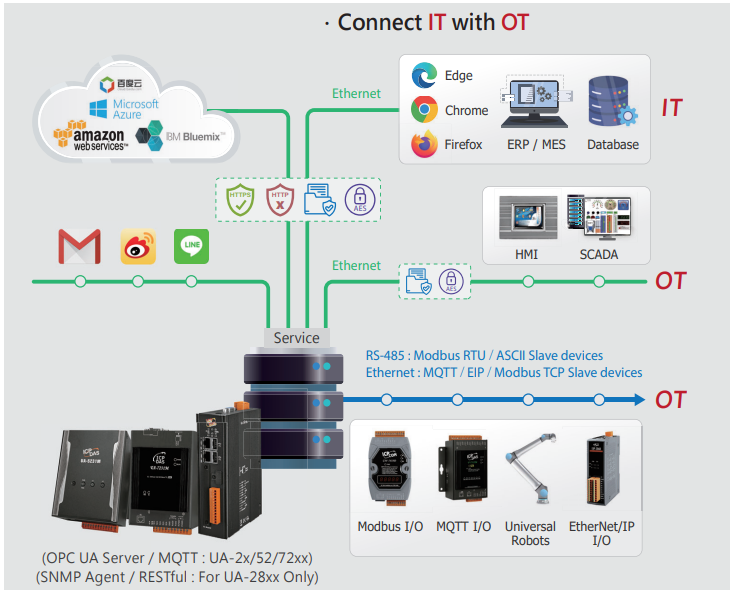

Application
Specification
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card or SSD in CSV format. |
| Remote Database |
Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Recommend Max. 2 Databases per Time, Max. 1000 Tags per database connection. |
| Software | |
|---|---|
| OS | Linux Kernel 5.10.72 |
| Protocol | OPC UA Server MQTT Broker/Client Modbus TCP Master Modbus RTU/ASCII Master EtherNet/IP Scanner SNMP Agent RESTful |
| Function | Internal Module PID Function |
| IoT Service Integration | Microsoft Azure Amazon Web Services IBM Bluemix ThingSpeak IFTTT |
| Main Unit | |
|---|---|
| CPU | ARM Quad-Core CPU, 1.6 GHz |
| System Memory | DDR4 SDRAM 2 GB |
| Storage |
Flash 8 GB microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card or 2 TB microSDXC card) mini PCIe Socket, Solid-state drive (SSD) can be expanded by accessories |
| Non-Volatile Memory |
FRAM 64 KB MRAM 128 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
|---|---|
| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
|---|---|
| Status |
1 x PWR 1 x RUN 3 x User Defined LEDs |
| I/O Expansion | |
|---|---|
| I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports (*1) |
| HMI | |
|---|---|
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| USB | |
|---|---|
| Connector | 2 x 2.0 host |
| Power | |
|---|---|
| Input Range | +12 ~ +48 VDC |
| Consumption | 10 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 42 x 164 x 129 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
