PM-3133-MTCP series
PM-3133-MTCP series

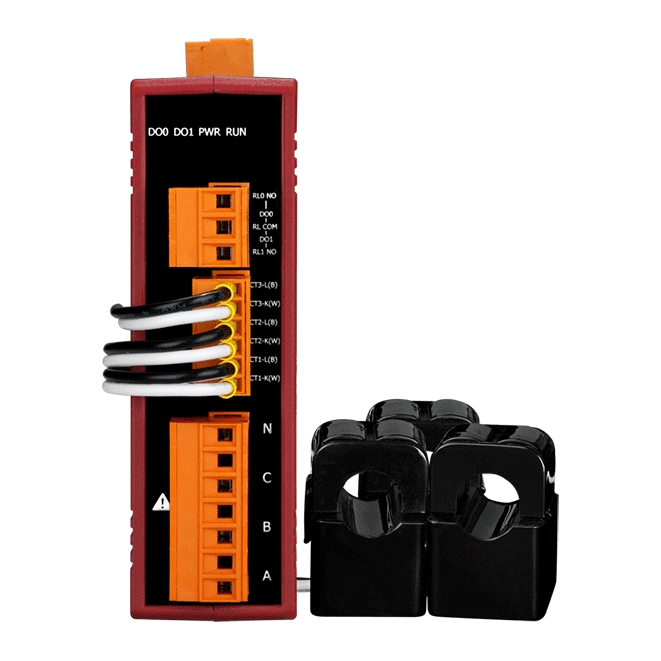

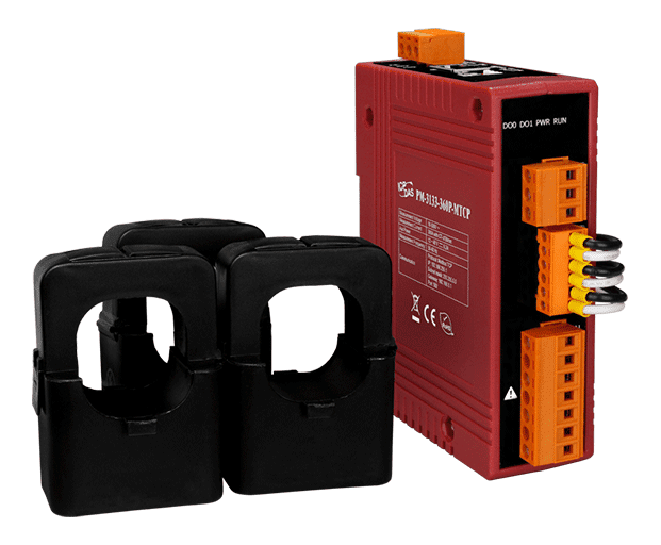

3-phase Smart Power Meter, Modbus TCP Series
Features
- Bi-directional Energy
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 400 A with Different CT Ratio
- Voltage Measurements Up to 500 V
- Clip-on CT for Easy Installation
- Accuracy Better than 0.5% (PF=1)
- Total Harmonic Distortion (THD)
- Supports 2 Power Relay Output (Form A)
- IEC 61010-1 and EN 61010-1
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3133 series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3133 series can be applied to both low voltage primary side and / or medium /high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages.
|
Single-phase / Three-phase / Multi-circuit Smart Power Meters (Modbus-RTU / Modbus-TCP)
|
|||||||||
| Model | Phase | Loops | Bi-directional Energy | CT Included | Max. Voltage | Max. Current | Max. CT Inner Diameter | CT Cable Length | |
|---|---|---|---|---|---|---|---|---|---|
| Modbus/RTU | Modbus/TCP | ||||||||
| PM-3033 | PM-3033-MTCP | Three | 1 | Yes | - | 500V | 5A | - | - |
| PM-3133-xxx | PM-3133-xxx-MTCP | Three | 1 | Yes | Yes | 500V | 400A | 36mm | 1.8m |
| PM-3133-xxxP | PM-3133-xxxP-MTCP | Three | 1 | Yes | Yes | 500V | 400A | 36mm | 4m |
| PM-3133P | PM-3133P-MTCP | Three | 1 | Yes | - | 500V | Depends on selected CT (333 mV input) | ||
| PM-3133-RCTxxxP | PM-3133-RCTxxxP-MTCP | Three | 1 | Yes | Yes | 500V | 4000A | 185mm | 4m |
| PM-3133i-xxxP | PM-3133i-xxxP-MTCP | Three | 1 | Yes | Yes | 600V | 400A | 36mm | 4m |
| PM-3133i-RCTxxxP | PM-3133i-RCTxxxP-MTCP | Three | 1 | Yes | Yes | 600V | 4000A | 185mm | 4m |
Application
Specification
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops |
3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current |
PM-3133-005P-MTCP: CTØ10 mm (0.05 A ~ 5 A) PM-3133-100P-MTCP: CTØ10 mm (0.05 A ~ 60 A) PM-3133-100-MTCP: CTØ10 mm (0.05 A ~ 60 A) PM-3133-160P-MTCP: CTØ16 mm (0.1 A ~ 100 A) PM-3133-160-MTCP: CTØ16 mm (0.1 A ~ 100 A) PM-3133-240P-MTCP: CTØ24 mm (0.15 A ~ 200 A) PM-3133-240-MTCP: CTØ24 mm (0.15 A ~ 200 A) PM-3133-360P-MTCP: CTØ36 mm (0.3 A ~ 300 A) PM-3133-400P-MTCP: CTØ36 mm (0.3 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
|---|---|
| Channels | 2 |
| Type | Power Relay |
| Contact Rating |
Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| Ethernet | |
|---|---|
| Ports | 1x RJ45, 10/100 Base-TX |
| PoE | Yes |
| Protocol | Modbus TCP |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC or PoE |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
