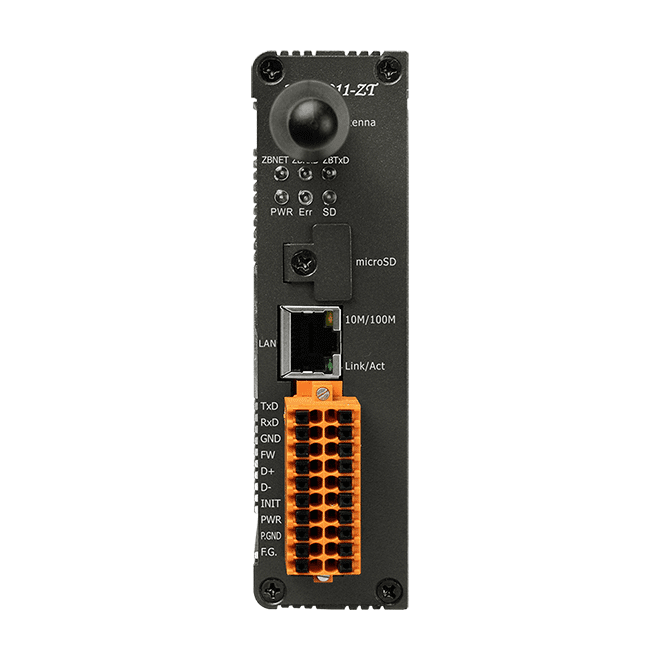

MDC-211-ZT
MDC-211-ZT
ZigBee Modbus data concentrator with 1x Ethernet, 1x RS-232 and 1x RS-485(Asia Only)
Features
- Supports the Modbus RTU Master and Slave
- Upgrade Modbus/RTU Devices with Ethernet Communication Ability
- Accelerate the Reading of Multiple Modbus/RTU Devices
- Supports Execution of up to 240 Modbus Polling Commands
- Supports up to 9600 Modbus Registers for each DI/DO/AI/AO
- Supports Friendly Web UI Configuration
- Easy System Backup and Copy with .CSV file
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

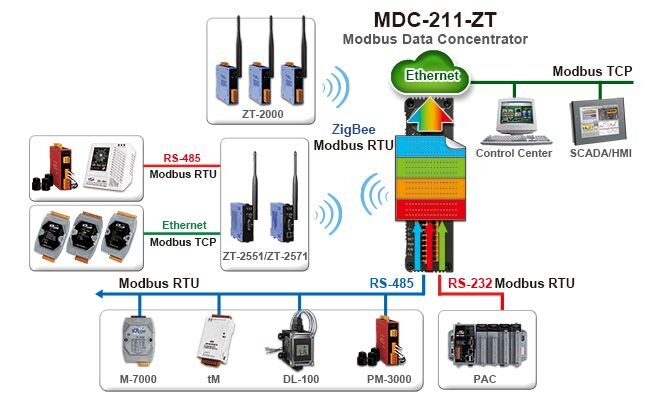

MDC-211-ZT Modbus data concentrator developed by ICP DAS, with Ethernet, ZigBee Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-ZT can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-ZT from Ethernet to access the data of multiple Modbus RTU devices at once.
Through MDC-211-ZT's Modbus data centralized management function, as well as the Ethernet network convenient link and the communication ability, it can quickly establish a stable remote monitoring system, simplify the complexity during the process of data acquisition operation, reduces the Ethernet network traffic load, and enhances the system efficiency.
Application
Specification
| RF | |
|---|---|
| Channels | 16 |
| Transmission Power | 11 dBm |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz, 5 dBi omni-directional |
| Transmission Distance (LoS) | 700 m (typical) |
| Ethernet | |
|---|---|
| Ports | 1 × 10/100 Base-TX |
| Protocol | Modbus TCP slave |
| COM Ports | |
|---|---|
| Ports |
1 × RS-232 1 × RS-485 |
| Baud Rate | 1200 – 115200 bps |
| Data Format | N81, N82, O71, O81, E71, E81, S71, S81, M71, M81 |
| Protocol | Modbus RTU master / slave |
| Polling Definition | Up to 240 Modbus command definitions for all ZigBee, RS-232, and RS-485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI, and DO data |
| Power | |
|---|---|
| Consumption | 5 W @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 × 120 × 116 mm (W × L × H) |
| Installation | DIN rail |
| Environment | |
|---|---|
| Operating Temperature | −25 °C – +75 °C |
| Storage Temperature | −30 °C – +80 °C |
| Humidity | 10 – 90% RH, non-condensing |
