IR-210-5
IR-210-5
Universal IR Learning Module (6x IR outputs, 224x IR cmds)
Features
- 6 IR output channels.
- 1 IR learning input.
- Supports 6 IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
- IR command capacity: 224.
- Supports RS-232 and RS-485 serial interface.
- Supports function code 0x06/0x10 of Modbus/RTU protocol to emit IR commands.
- Provides ASCII String Command (DCON protocol) to emit IR commands.
- Provides API library for PC program development.
- Includes 2x CA-IR-SH2251-5 IR emitter cables.
(Remote control range: CA-IR-SH2251-5 is 125% of CA-IR-SH2251)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
IR-210 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-210 supplies 6 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus RTU and DCON protocols provide flexible expansion and control on the module. Besides, IR-210 software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-210 is well-suited for smart home and building automation.

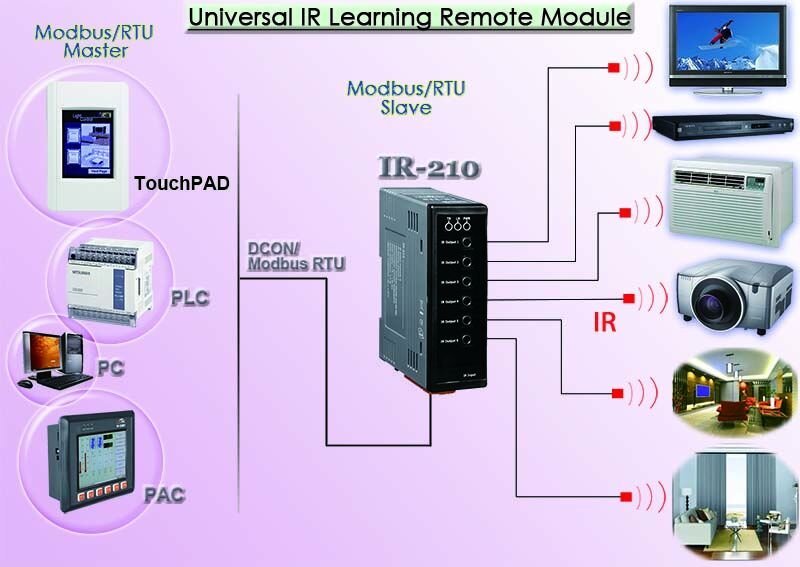

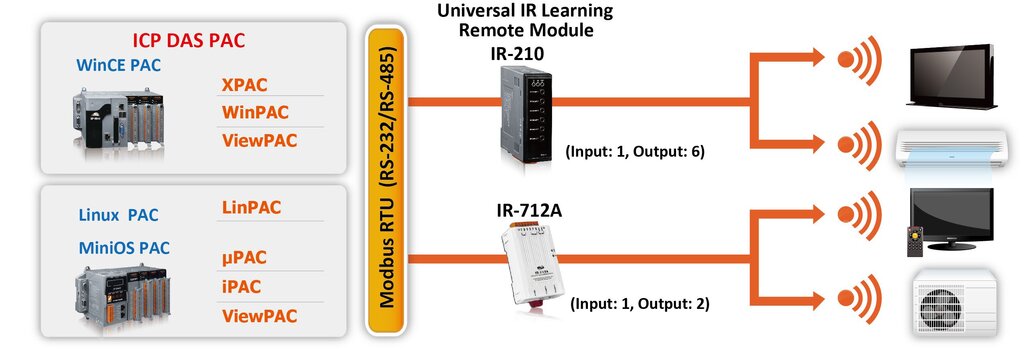

Application
Specification

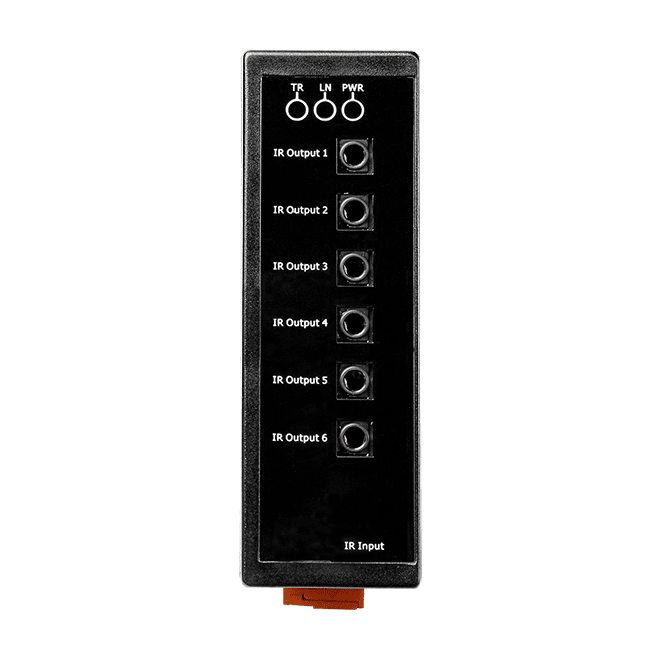

| LED Indicators | |
|---|---|
| Status |
1 x TR (IR Transmitting) 1 x LN (IR Learning) 1 x PWR (Power) |
| Infrared | |
|---|---|
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |
| IR Output Channels | 6 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 224 |
| COM Ports | |
|---|---|
| Ports |
RS-232 (TxD, RxD, GND) RS-485 (DATA+, DATA-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU Slave |
| Power | |
|---|---|
| Consumption |
Standby: 0.65 W Using 1 IR Output: 2.5 W Using 6 IR Outputs: 12 W (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 78 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
