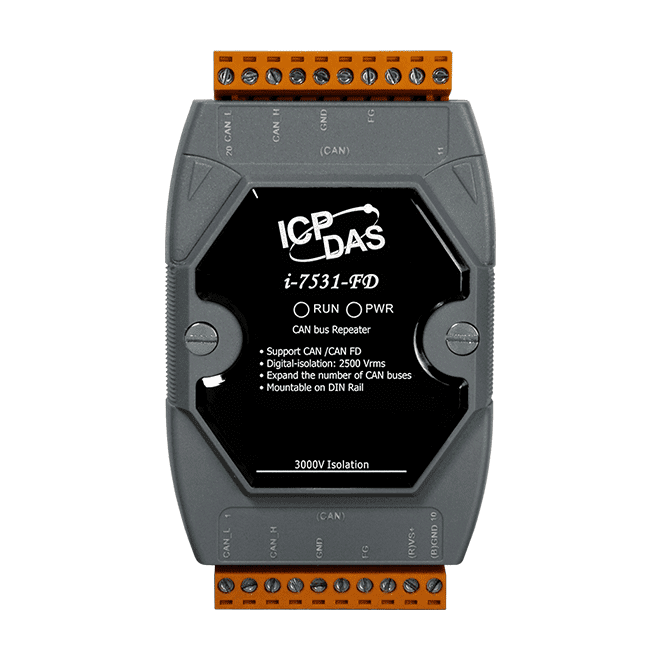

I-7531-FD-G

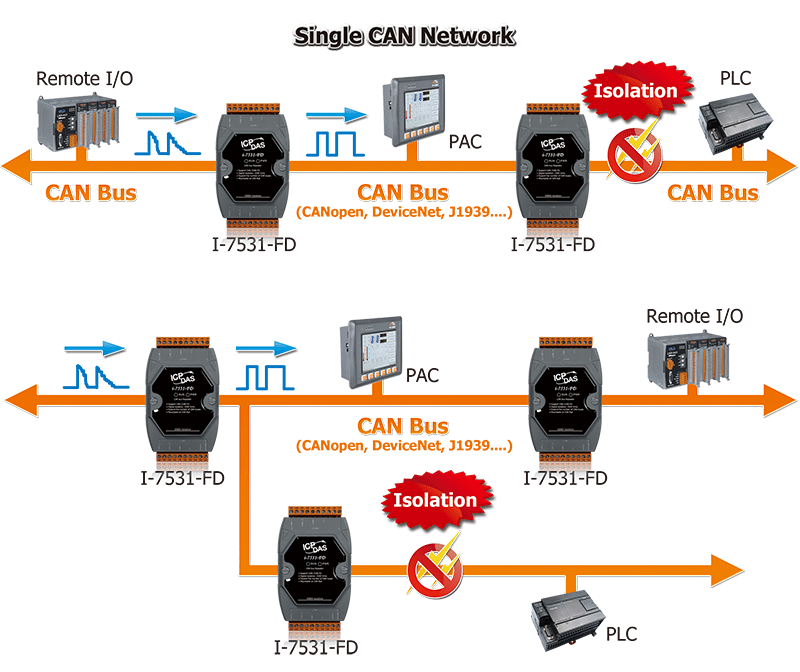

The I-7531-FD-G is an isolated CAN/CAN FD signal repeater with two CAN ports, that can connect and isolate two CAN signals with the same CAN baud rate. When the CAN signal received by one of the CAN ports is attenuated due to cable length or noise interference, this module can restore the CAN signal to its original shape and output it from the other CAN port. Additionally, the module can automatically adjust its CAN baud rate to match the CAN bus, so users do not need to configure any module parameters. Users only need to connect the module to the CAN bus, supply power, and it will function normally.

However, please note that although the attenuated CAN signal can be restored to its original shape after passing through this module, there will be a slight time delay at the physical layer, and the communication distance of the CAN signal will not be extended. If users need to extend the communication distance of the CAN signal, please refer to the I-7532M-FD.

CAN Bus Repeater
Module Name		I-7531-FD-G	I-7532-G	I-7532M-FD	I-2534	I-5534-M
		I-7531-FD-UTA-G		I-7532RM-FD New
CAN Interface
Module Type
Connector		Screwed terminal block	Screwed terminal block	Screwed terminal block	Screwed terminal block	9-pin male D-Sub
Channel Number		2	2	2	4	4
Baud Rate (bps)		CAN: 5k ~ 800k CAN FD: up to 8000k	5k ~ 1M (user-defined)	CAN: 10 ~ 1000 kbps FD: 100 ~ 10000 kbps	5k ~ 1M (user-defined)	5k ~ 1M (user-defined)
CAN Filter		No	Yes	Yes	Yes	Yes
Isolation		3000 VDC / 2500 Vrms	3000 VDC / 2500 Vrms (photo-coupler)
120Ω Resistor		Built-in
Propagation Delay		175 ns	134 μs ~ 30 ms *	142 μs ~ 13.8 ms **	240 μs ~ 1360 μs *	240 μs ~ 1360 μs *
Miscellaneous
Extend CAN Distance		No	Yes
Repeat CAN Signal		Yes
Different Baud Integration		No	Yes
Note		-	-	Rotary switch for CAN rate	-	-
* Note 1: Delay depends on CAN baud rate and message format. ** Note 2: Delay depends on CAN baud rate and message format.
