Modbus/OPC UA to EtherCAT Main Device Accelerator
Features
- Built-in EtherCAT Main Device
- Free Run mode
- Connect to SubDevice's PDO without ESI file
- Supports Third-party SubDevice
- Automatically connect to the EtherCAT SubDevice in 10 seconds after power-on
- User-defined SDO Startup Entry
- Cycle time 125us (Max.)
- Dual-stack networking (IPv4, IPv6)
- Support Modbus Server
- Supports OPC UA Server
- Built-in Web Server (HTTP/HTTPS)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

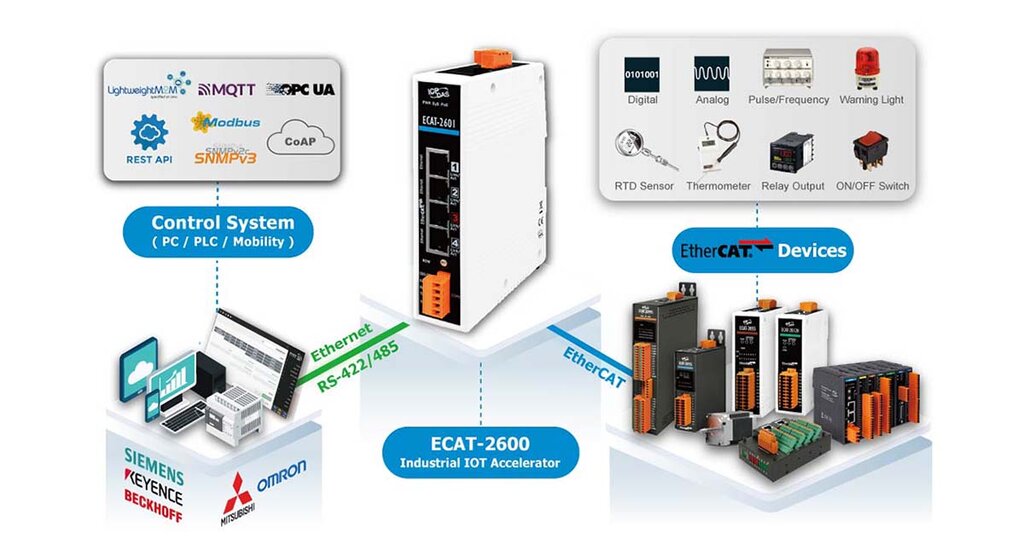

The ECAT-2601 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus/OPC UA networks. The ECAT-2600 acts as a MainDevice on EtherCAT networks, allowing I/O data to be transferred between the two networks. The ECAT-2601 provides a data exchange buffer that allows two different systems (EtherCAT and the Modbus/OPC UA) exchange data easily and faster for more diverse applications.
Application
Specification
| Software | |
|---|---|
| Function | Web Interface for Configuration |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 3 2 x Distance between Stations: Max. 100 m (100BASE-TX) 1 x PoE (IEEE 802.3af, Class 2) |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports | |
|---|---|
| Ports | 1 x 422/485 |
| Protocol | Modbus RTU (Slave) |
| EtherCAT | |
|---|---|
| Ports | RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 0.125 ~ 32ms |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Consumption | 0.22 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 119 x 31 x 157 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
