R5020-Lite
R5020-Lite

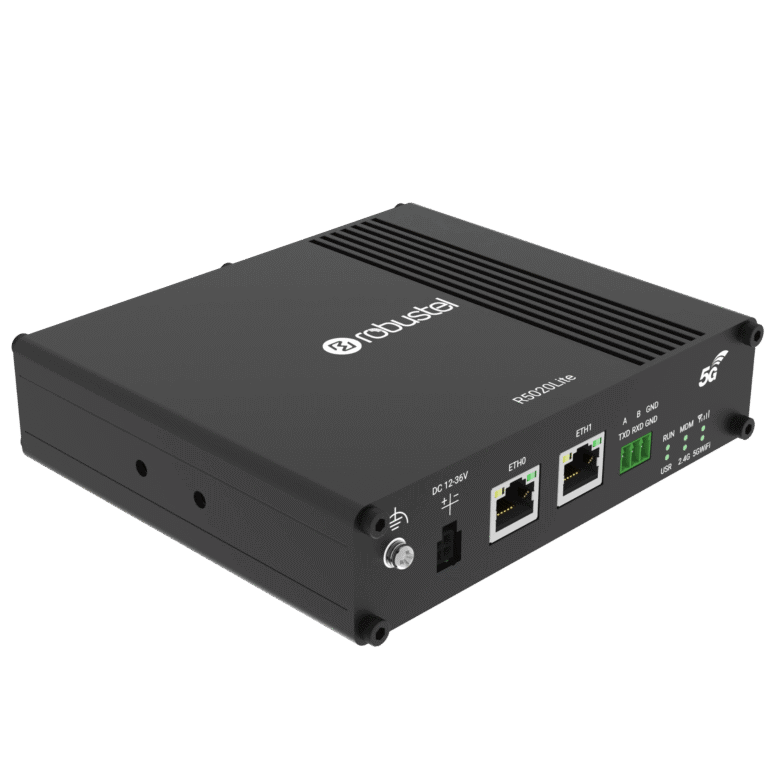

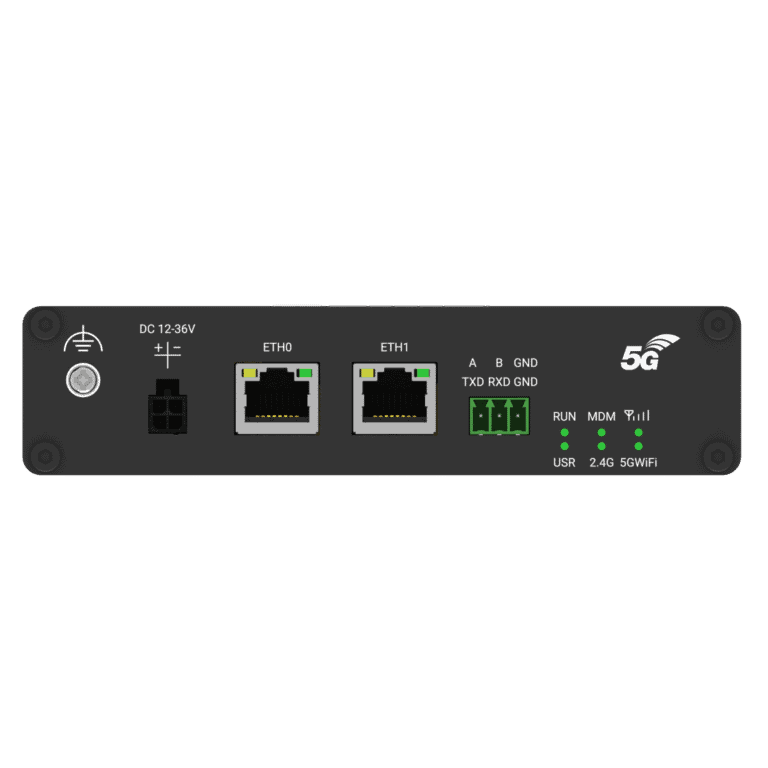

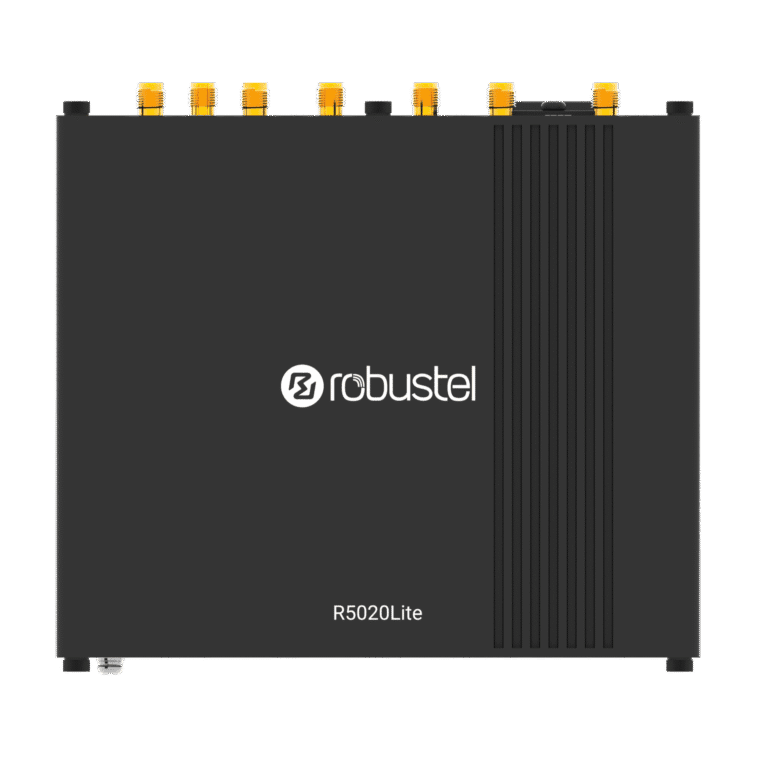

Industrial Dual-SIM 5G Router with 2x LAN, Serial & GNSS
The Robustel R5020-Lite is an industrial 5G router built to bring high-speed connectivity to branches and edge sites without the cost or delay of new fixed lines.
It supports global 5G/4G/3G bands and 3GPP Release 16, runs on RobustOS, and is managed at scale with RCMS for monitoring, configuration, and updates. Use Ethernet or Wi-Fi as the primary link with automatic failover to 5G/4G, or run 5G as primary; its ability to be mounted externally helps achieve stronger signal.
Security and interoperability are covered with IPsec, DMVPN, GRE, L2TP and more.
A software-configurable RS-232/RS-485 port connects legacy industrial devices to IP networks alongside LAN equipment. A compact metal enclosure with DIN-rail or wall mounting simplifies installation.
The result: fast, resilient 5G you can deploy quickly and manage centrally, at a cost that fits nationwide or even global rollouts.
Features
- Low-cost industrial 5G router
- 5G/4G/3G cellular connections
- Cutting-edge 5G 3GPP Release 16 cellular interface
- Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
- 1 x RS-232/RS-485 ports (software configurable) for connecting industrial and legacy devices
- Multiple VPN options available including DMVPN, IPsec, L2TP, and more
- Free cloud management platform (RCMS)
- Robust metal enclosure with a compact design for DIN-rail and wall mounting
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The R5020 Lite is Robustel’s latest 5G-capable router supporting 5G, 4G, and 3G networks. It leverages our proven high-performance CPU platform along withRobustOS, an in-house developed operating system that has successfully passed extensive third-party penetration testing. The R5020 Lite is compatible with 3GPP Release 16 and is designed for the following applications:
Broadband Failover: The R5020 Lite can be configured to use Ethernet or Wi-Fi as the primary internet connection, with automatic failover to 5G/4G in the event of an outage. This feature provides resilience for retail shops and small offices at a reasonable cost, ensuring sufficient bandwidth for multiple users. It supports various protocols, including IPsec, DMVPN, GRE, and more, for secure connections to core networks.
Primary Broadband: Cellular network operators now offer unlimited 5G plans at competitive prices. For many businesses, the opportunity to eliminate wired connections and utilize a wireless internet solution can be both technically and commercially advantageous.
SD-WAN: While many appliances include built-in cellular options, the R5020 Lite provides a cost-effective solution to add a 5G backup route. Its ability to be located externally increases the likelihood of receiving a strong 5G signal.
The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance.
Available Models
| Model | Supported Frequency Bands | Certifications | Order Code | Package Contents |
|---|---|---|---|---|
|
R5020L-A-5G-A25GL Global |
5G NR NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 5G NR SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 4G LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 4G LTE TDD: B34/38/39/40/41/42/43/48 4G LTE LAA: B46 3G: B1/2/4/5/8/19 |
CE, UKCA, CB, NTC, TDRA, ANATEL, TELEC, JATE, IMDA, RCM, E-Mark |
A009800013 |
1 × R5020 Lite Router (B Code: B098004) 1 × Wall Mounting Kit |
|
R5020L-A-5G-A25GL Global |
Same frequency bands as above |
CE, UKCA, CB, NTC, TDRA, ANATEL, TELEC, JATE, IMDA, RCM, E-Mark |
A009810002 |
1 × R5020 Lite Router (B Code: B098004) 1 × Wall Mounting Kit 4 × Cellular Antenna 2 × Wi-Fi Antenna 1 × Power Adapter |
|
R5020L-A-5G-A43EA EMEA + APAC |
5G NR NSA/SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 4G LTE FDD: B1/3/5/7/8/20/28/32/71 4G LTE TDD: B38/40/41/42/43 3G: B1/5/8 |
CE, UKCA | A009800010 |
1 × R5020 Lite Router (B Code: B009800009) 1 × Wall Mounting Kit |
|
R5020L-B-5G-A30EU GNSS EMEA + APAC |
Same frequency bands as above |
CE, UKCA, CB, RCM, NTC, TDRA, E-Mark |
A009800014 |
1 × R5020 Lite Router (B Code: B098005) 1 × Wall Mounting Kit 1 × Power Plug Converter |
|
R5020L-C-5G-A25GL No Wi-Fi LATAM |
Same frequency bands as Global model | – | A009800009 |
1 × R5020 Lite Router (B Code: B098008) 1 × Wall Mounting Kit 4 × Cellular Antenna 1 × Power Adapter |
Application
Specification
System Architecture
| Operating System | RobustOS Pro |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512MB |
| Flash | 32MB |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G, 2G |
| Antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 2 x 10/100/1000 Mbps, 2 x LAN by default, can be configured as 1 x WAN + 1 x LAN |
| Magnet Isolation Protection | 1 KV |
Serial Port
| Serial Ports | 1 x RS-232 or 1 x RS-485 (software configurable) |
| Connector | 1 x 3-pin 3.5 mm female socket |
| ESD Protection | ±8 KV air discharge, ±4 KV contact discharge |
| Baud Rate | 300 bps ~ 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Wi-Fi
| Wi-Fi Antennas | 2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 × 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
GNSS/GPS (Optional)
| GNSS Antennas | 1 |
| Connector | SMA-K |
| GNSS Frequency |
GPS: L1, L5 QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |
Other Interfaces
| Reset Button | 1 × RST |
| LED Indicators | 1 × RUN, 1 × MODEM, 1 × NET, 1 × USR, 1 × RSSI, 1 × Wi-Fi |
| Watchdog | External |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5 mm terminal block with lock OR 4-pin Micro-Fit socket |
| Input Voltage |
12/24 V DC, 12 ~ 36 V DC Reverse polarity protection, surge protection |
| Power Consumption | Idle: 3 W@12 V V Max: 11 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 475 g |
| Dimensions | 32 x 115 x 136 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature |
-20 – +55 °C (normal operation) -25 – +70 °C (extended operation) |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++ |
| Flash available for SDK | 5MB |
| RAM available for SDK | 128MB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| Testing |
IEC 60068-2-6 (Sinusoidal Vibration) IEC 60068-2-27 (Mechanical Shock) IEC 60068-2-64 (Random Vibration) |
| EMI |
EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-4 (EFT) Level 3 EN 61000-4-4 (EFT) Power Ports Level 2, Signal Ports Level 3 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 3 EN 61000-4-11 (Dips) Class 2 |
