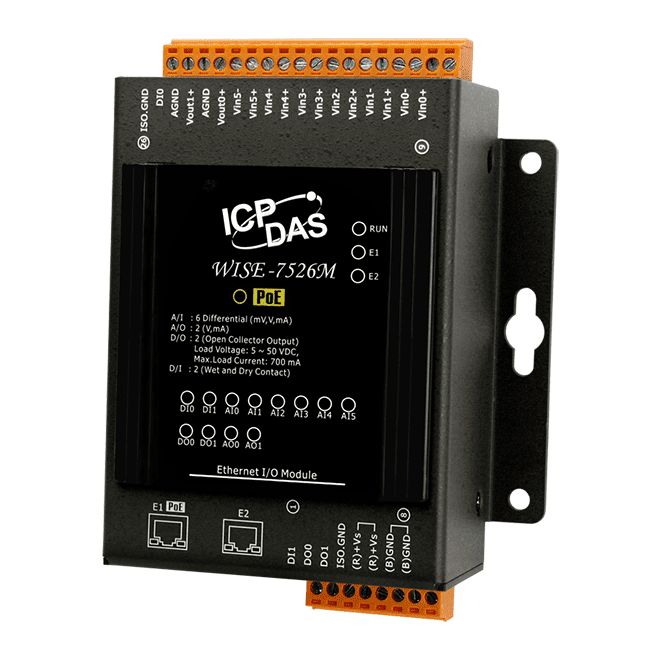

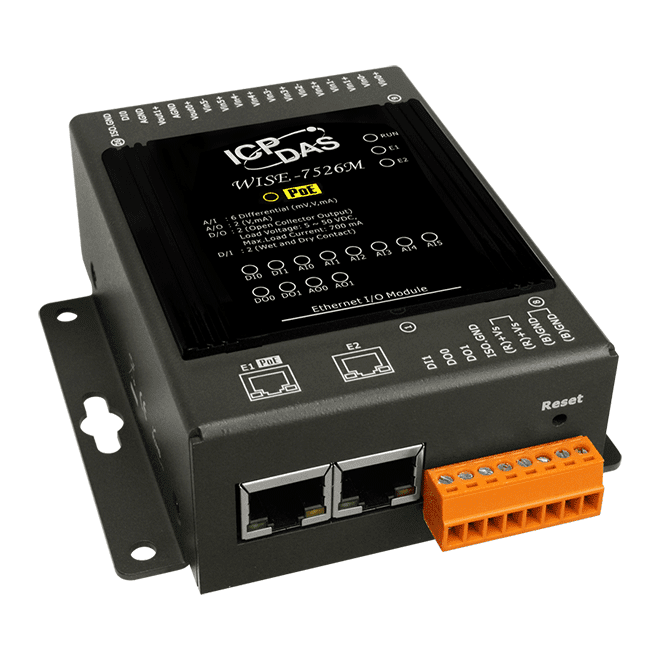

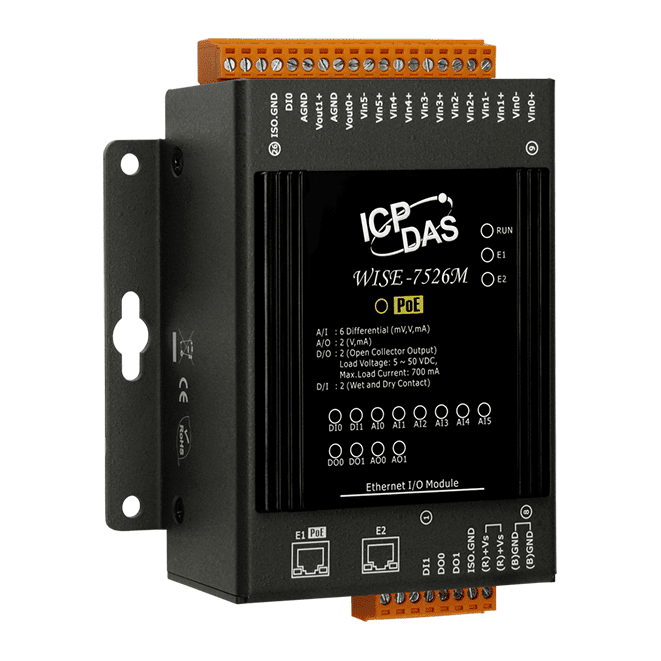

WISE-7526M
WISE-7526M
Intelligent MQTT I/O Module with 2-port Ethernet Switch, 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO
Features
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 6 Channels; AO: 2 Channels; DI: 2 Channels; DO: 2 Channels).
- Support I/O channel monitoring/control, Timer, Schedule operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- MQTT Protocol for IT & IoT (Internet of Things) System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
- 2-port Ethernet Switch for Daisy-Chain Topology.
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

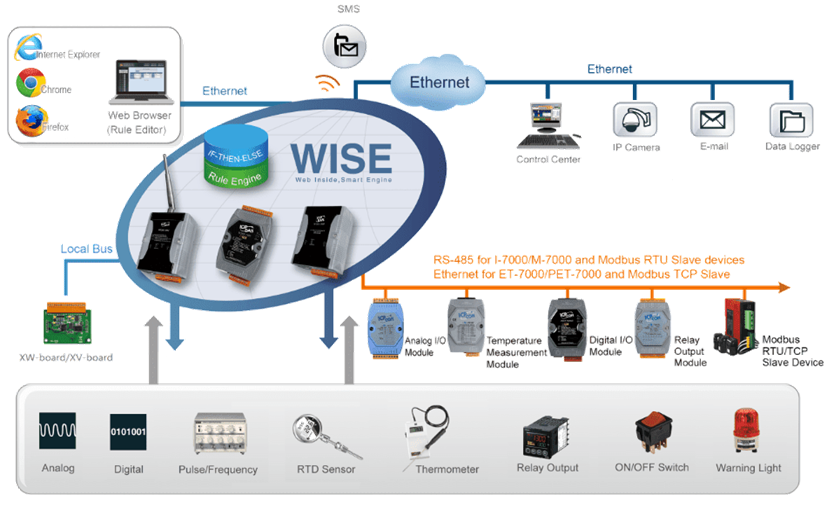

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.
WISE-7526M is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs, and analog outputs. Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. WISE-7526M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7526M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.
By integrating with IF-THEN-ELSE rule engine, WISE-7526M provides more powerful functions such as I/O Moniitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7526M also supports Modbus TCP and MQTT protocol to make seamless integration with SCADA, IT and IoT (Internet of Things) system.
| Model | DI Channel | DO Channel | AI Channel | AO Channel | ||||
|---|---|---|---|---|---|---|---|---|
| Ch. | Type | Ch. | Type | Ch. | Type | Ch. | Type | |
| WISE-7102
|
6 | Wet (Sink,Source) | 3 | Open Collector (Sink) | 3 | ±150mV, ±500mV, ±1V, ±5V, ±10V, 0~20mA, ±20mA, 4~20mA |
- | - |
| WISE-7105
|
- | - | 4 | Open Collector (Sink) | 8 | Thermistor | - | - |
| WISE-7115
|
- | - | - | - | 7 | RTD: Pt100, Pt1000, Ni120, Cu100, Cu1000 | - | - |
| WISE-7117
|
- | - | 4 | Open Collector (Sink) | 8 | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20mA |
- | - |
| WISE-7118Z/S
|
- | - | 6 | Open Collector (Sink) | 10 | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, 0~20mA, 4~20mA Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
- | - |
| WISE-7118Z/S2
|
||||||||
| WISE-7126
|
2 | Dry (Source), Wet (Sink,Source) | 2 | Open Collector | 6 | ±500 mV, ±1V, ±5V, ±10V, 0~20mA, ±20mA, 4~20mA |
2 | 0~5V, ±5V, 0~10V, ±10V, 0~20mA, 4~20mA |
| >WISE-7142
|
- | - | 16 | Open Collector (Sink) | - | - | - | - |
| WISE-7144
|
8 | Wet (Sink,Source) | 8 | Open Collector (Sink) | - | - | - | - |
| WISE-7150
|
12 | Wet (Sink,Source) | 6 | Open Collector (Sink) | - | - | - | - |
| WISE-7151
|
16 | Wet (Sink,Source) | - | - | - | - | - | - |
| WISE-7152
|
8 | Wet (Sink,Source) | 8 | Open Collector (Source) | - | - | - | - |
| WISE-7153
|
16 | Dry (Source) | - | - | - | - | - | - |
| WISE-7160
|
6 | Wet (Sink,Source) | 6 | Power Relay Form A (SPST N.O.) | - | - | - | - |
| WISE-7167
|
- | - | 8 | Power Relay Form A (SPST N.O.) | - | - | - | - |
| WISE-7255
|
8 | Dry (Source), Wet (Sink,Source) | 8 | Open Collectors (Source) | - | - | - | - |
| WISE-7504M
|
4 | Dry (Source), Wet (Sink) |
- | - | 4 | ±500mV, ±1V, ±5V, ±10V, 0~20mA, ±20mA, 4~20mA |
4 | 0~5V, ±5V, 0~10V, ±10V, 0~20mA, 4~20mA |
| WISE-7517M-10
|
- | - | - | - | 10/20 | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20mA |
- | - |
| WISE-7519ZM/S
|
- | - | 3 | Open Collector (Sink) | 8 | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0~20mA, 4~20mA Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
- | - |
| WISE-7519ZM/S2
|
||||||||
| WISE-7526M
|
2 | Dry (Source), Wet (Sink,Source) | 2 | Open Collector | 6 | ±500 mV, ±1V, ±5V, ±10V, 0~20mA, ±20mA, 4~20mA |
2 | 0~5V, ±5V, 0~10V, ±10V, 0~20mA, 4~20mA |
| WISE-7555M
|
8 | Dry (Source), Wet (Sink,Source) | 8 | Open Collector (Source) | - | - | - | - |
| WISE-7560M
|
6 | Wet (Sink,Source) | 6 | Power Relay Form A (SPST N.O.) | - | - | - | - |
Application
Specification
| Software | |
|---|---|
| Protocol | • Modbus TCP • CGI Command (Sending) • MQTT Client (non-SSL) • Active I/O (MQTT Publish) |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (72 rules supported) • I/O channel monitoring and control • Timer operation (24 set supported) • Schedule operation (24 set supported) • Internal Register operation (48 set supported) • Recipe operation (24 set supported) • Advanced P2P (8 set supported) • non-SSL Email sending function • SNTP Time Synchronization |
| CPU Module | |
|---|---|
| CPU | 32-bit CPU (400 MHz) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 12 x I/O Channel Status |
| Analog Input | |
|---|---|
| Channels | 6 (Differential) |
| Type | ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% |
| Sampling Rate | 10 Sample/Sec. (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | Yes, 50 mA Max. at 110 VDC/VAC Max |
| Individual Channel Configuration | Yes |
| Channel-to-Channel Isolation | Yes, ±400 VDC |
| Open Wire Detection | Yes, for 4 ~ 20 mA only |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type | 0 ~ 5 VDC, ± 5 VDC, 0 ~ 10 VDC, ± 10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | Yes, for 4 ~ 20 mA only |
| Voltage Output Capability | 20 mA @ 10 V |
| Current Load Resistance | 500 Ω |
| Digital Input/Counter | |
|---|---|
| Channels | 2 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC Max. |
| OFF Voltage Level | Dry: Open Wet: +3.5 VDC ~ + 30 VDC |
| Max. Counts | 16-bit (65535) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Effective Distance | 500M Max. |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE | Yes |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.4 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
