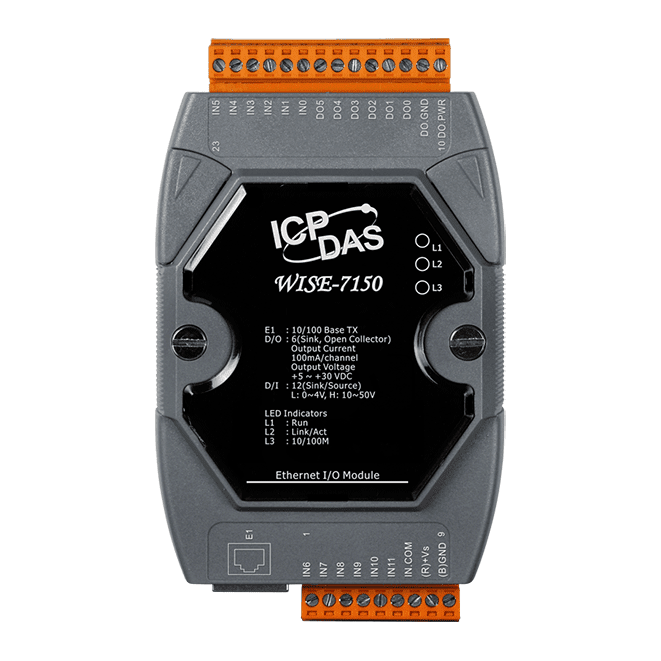

WISE-7150

WISE-7150

Intelligent I/O Module with 12-ch DI, 6-ch DO

Features
  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (DI: 12-channels; DO: 6-channels).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.

WISE-7150 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7150 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.

This module WISE-7150 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6-channel isolated open collector outputs and 12-channel isolated wet contact digital inputs. Each output channel supports 100 mA currnet driving @ 5 ~ 30 VDC and each digital input channel supports counter input.

Model DI Channel DO Channel AI Channel AO Channel
Ch.Type Ch.Type Ch.Type Ch.Type
WISE-7102 6Wet (Sink, Source) 3Open Collector (Sink) 3 ±150mV, ±500mV, ±1V, ±5V, ±10V,
0~20mA, ±20mA, 4~20mA		 --
WISE-7105 -- 4Open Collector (Sink) 8Thermistor --
WISE-7115 -- -- 7RTD: Pt100, Pt1000, Ni120, Cu100, Cu1000 --
WISE-7117 -- 4Open Collector (Sink) 8 ±150mV, ±500mV, ±1V, ±5V, ±10V,
±20mA, 0~20mA, 4~20mA		 --
WISE-7118Z/S - - 6 Open Collector (Sink) 10 ±15mV, ±50mV, ±100mV, ±500mV,
±1V, ±2.5V,
±20mA, 0~20mA, 4~20mA
Thermocouple: J, K, T, E, R, S, B, N, C, L, M 		- -
WISE-7118Z/S2
WISE-7126 2Dry (Source), Wet (Sink, Source) 2Open Collector 6 ±500mV, ±1V, ±5V, ±10V,
0~20mA, ±20mA, 4~20mA		 2 0~5V, ±5V, 0~10V, ±10V,
0~20mA, 4~20mA
WISE-7142 -- 16Open Collector (Sink) -- --
WISE-7144 8Wet (Sink, Source) 8Open Collector (Sink) -- --
WISE-7150 12Wet (Sink, Source) 6Open Collector (Sink) -- --
WISE-7151 16Wet (Sink, Source) -- -- --
WISE-7152 8Wet (Sink, Source) 8Open Collector (Source) -- --
WISE-7153 16Dry (Source) -- -- --
WISE-7160 6Wet (Sink, Source) 6Power Relay Form A (SPST N.O.) -- --
WISE-7167 -- 8Power Relay Form A (SPST N.O.) -- --
WISE-7255 8Dry/Wet 8Open Collector (Source) -- --
WISE-7504M 4Dry/Wet -- 4 ±500mV, ±1V, ±5V, ±10V,
0~20mA, ±20mA, 4~20mA		 4 0~5V, ±5V, 0~10V, ±10V,
0~20mA, 4~20mA
WISE-7517M-10 -- -- 10/20 ±150mV, ±500mV, ±1V, ±5V, ±10V,
±20mA, 0~20mA, 4~20mA		 --
WISE-7519ZM/S - - 3 Open Collector (Sink) 8 ±150mV, ±500mV, ±1V, ±5V, ±10V,
±20mA, 0~20mA, 4~20mA
Thermocouple: J, K, T, E, R, S, B, N 		- -
WISE-7519ZM/S2
WISE-7526M 2Dry/Wet 2Open Collector 6 ±500mV, ±1V, ±5V, ±10V,
0~20mA, ±20mA, 4~20mA		 2 0~5V, ±5V, 0~10V, ±10V,
0~20mA, 4~20mA
WISE-7555M 8Dry/Wet 8Open Collector (Source) -- --
WISE-7560M 6Wet (Sink, Source) 6Power Relay -- --

Application

Specification

Software
Protocol • Modbus TCP
• CGI Command (Sending)
Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rules supported)
• I/O channel monitoring and control
• Timer operation (12 sets supported)
• Internal Register operation (48 sets supported)
• Recipe operation (12 sets supported)
• Advanced P2P (8 sets supported)
• Non-SSL email sending function
CPU Module
CPU 16-bit CPU (80 MHz)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal
±8 kV Air for random point
LED Indicators
Status 1 × PoE Power
1 × System Running
1 × Ethernet Link/Act
1 × Ethernet 10/100M Speed
Digital Input/Counter
Channels 12
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +10 VDC ~ +50 VDC
OFF Voltage Level +4 VDC Max.
Max. Counts 16-bit (65535)
Frequency 50 Hz
Min. Pulse Width 10 ms
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Digital Output
Channels 6
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 VDC ~ +30 VDC
Load Current 100 mA/Channel at 25 °C
Direct Drive Power Relay Module
Overvoltage Protection 60 VDC
Overload Protection 1.3 A
Short-circuit Protection Yes
Ethernet
Ports RJ-45 × 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE Yes
Power
Reverse Polarity Protection Yes
Input Range 12 ~ 48 VDC
Consumption 2.4 W
Powered from PoE Yes, IEEE 802.3af, Class 1
Powered from Terminal Block Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm) 72 × 123 × 35 (W × L × H)
Installation DIN-Rail Mounting / Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

WISE-7150 WISE-7150 Utility Tools
