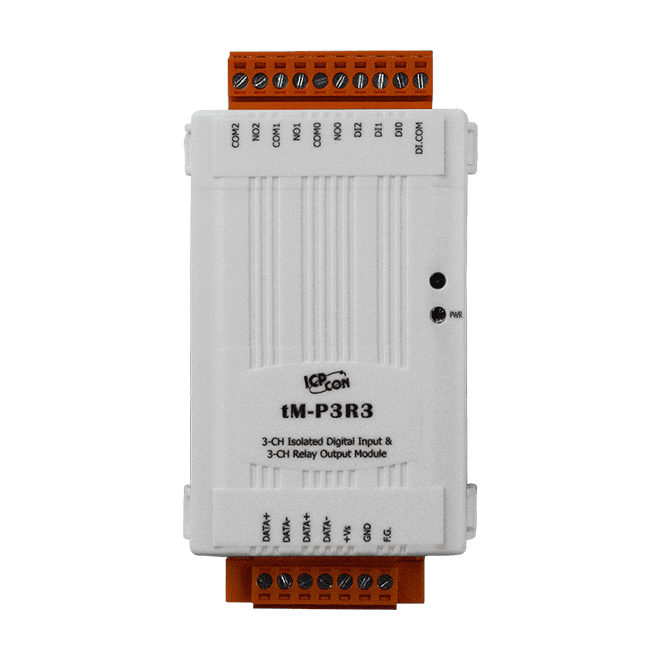

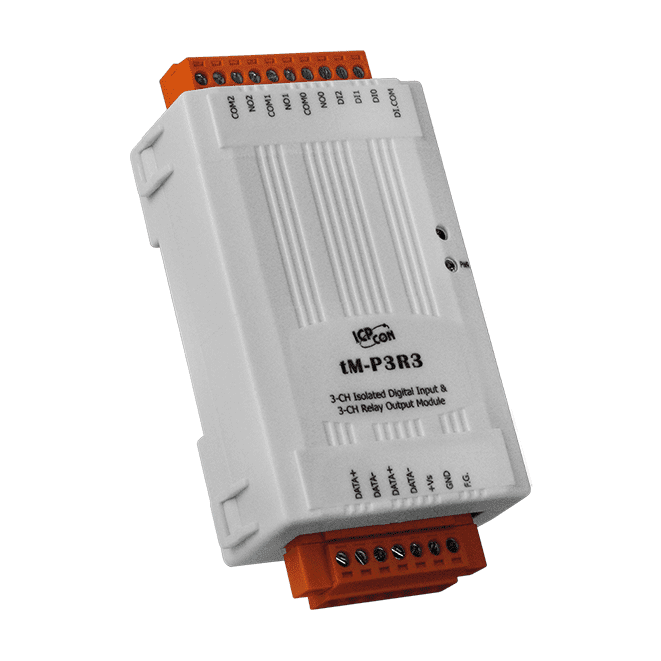

tM-P3R3
tM-P3R3
3-channel Isolation Digital Input and 3-channel Power Relay Module
Features
- Wet Contact, Source- or Sink-type Digital Inputs
- Relay Outputs
- Photocoupler Isolation
- All DI Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are Form A-type relays, while the digital input channels can be configured as either sink- or source-type through wiring. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
| Model | Relay Output | Digital Input (DI) | ||||
|---|---|---|---|---|---|---|
| Channels | Type | Max Load | Channels | Type | Sink/Source | |
| tM-P3R3 | 3 | Power Relay | 5 A / channel | 3 | Wet | Sink/Source (NPN/PNP) |
| tM-PD3R3 | Dry | Source (PNP) | ||||
| tM-R5 | 5 | - | - | - | ||
| tM-P3POR3 | 3 | PhotoMOS Relay | 1 A @ 80 V | 3 | Wet | Sink/Source (NPN/PNP) |
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 × Power and Communication |
| Digital Input/Counter | |
|---|---|
| Channels | 3 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
|---|---|
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance |
VDE: 5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @250 VAC/30 VDC 6,000 ops 3 A @250 VAC/30 VDC 100,000 ops 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C |
| Mechanical Endurance | 20,000,000 ops at no load (300 ops/minute) |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 × RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus RTU, Modbus ASCII |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 0.8 W max. |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 × 98 × 27 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
