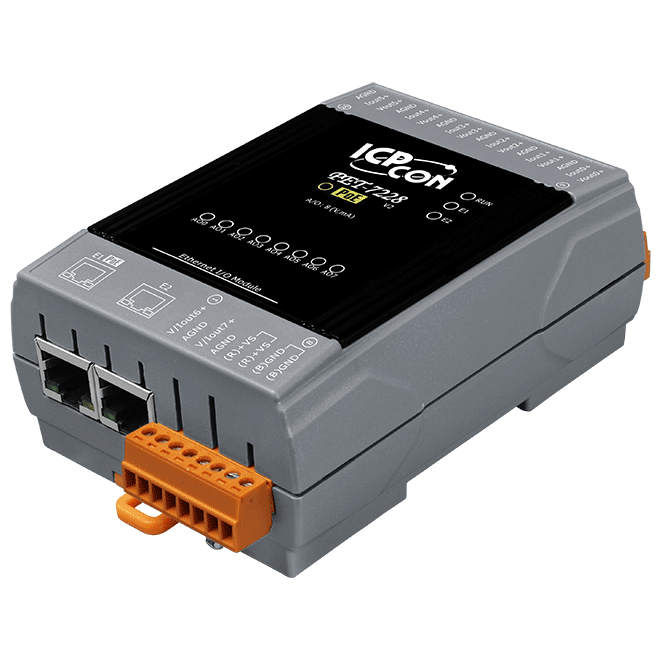

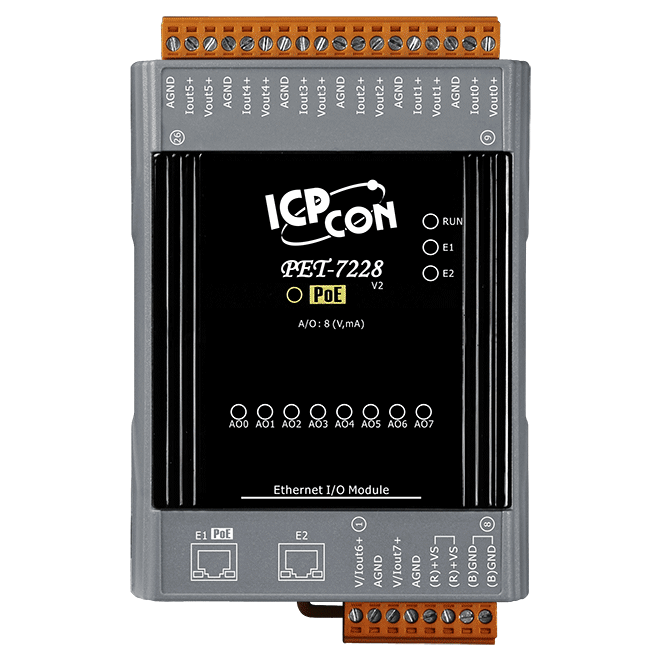

PET-7228
PET-7228
PoE I/O Module with 2-port Ethernet Switch, 8-ch AO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AO: 8 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The PET-7228 is a multifunction module with 8 channels analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper.
| Analog Output | |||||||
|---|---|---|---|---|---|---|---|
| Model | AO | ||||||
| Channel | Resolution | Voltage Output | Current Output | Safe Value | Power-on Value | ||
| ET-7028 | ET-7228 | 8 | 12-bit | 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V | 0 ~ 20 mA, 4 ~ 20 mA | Yes | Yes |
| PET-7028 | PET-7228 | ||||||
Application
Specification
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, I/O, PoE |
| Analog Output | |
|---|---|
| Channels | 8 |
| Type |
Voltage Current |
| Range |
+0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| PoE | Yes |
| LAN Bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 6.0 W (max.) |
| Powered from PoE | IEEE 802.3af, Class1 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
