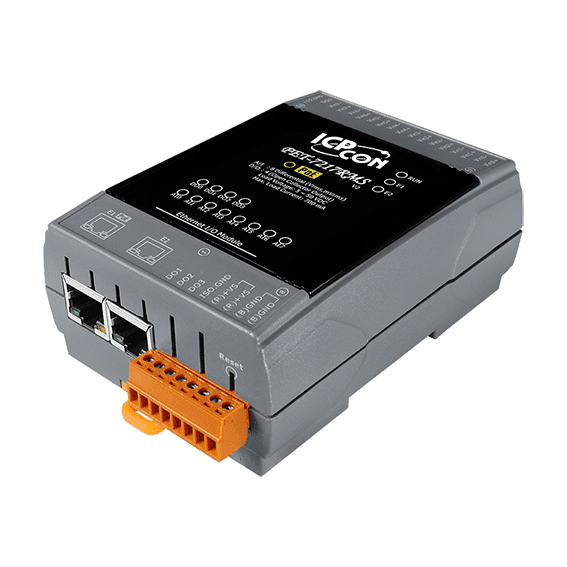

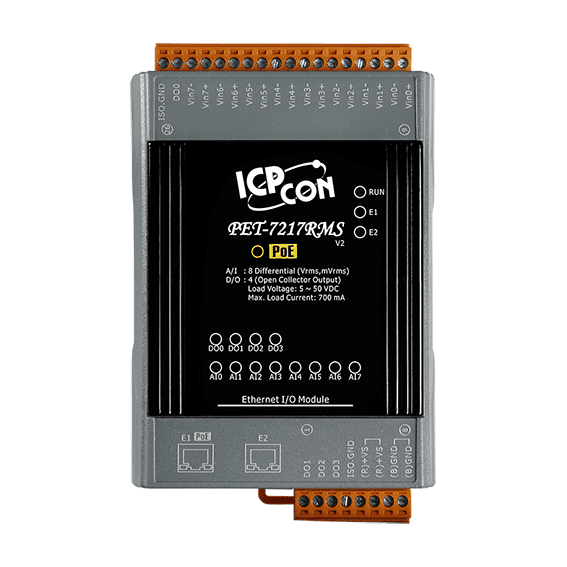

PET-7217RMS
PET-7217RMS
PoE I/O Module with 2-port Ethernet Switch, 8-ch RMS Input, 4-ch DO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Topology
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AI: 8 Channels True RMS Input
- DO: 4 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The PET-7217RMS is an 8-channel differential AC input and 4-channel digital outputs module that is used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually. The PET-7217RMS is a complete, high-accuracy, RMS-to-DC converter that computes the True RMS DC value of any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation, and ±35 Vrms/±28 VDC overvoltage protection.
| Analog Input | |||||||
|---|---|---|---|---|---|---|---|
| Model | AI | DO | |||||
| Channel | Voltage & Current Input | Sensor Input | Channel | Type | Sink/Source (NPN/PNP) | ||
| ET-7005 | – | 8 | – | Thermistor | 4 | Open Collector | Sink (NPN) |
| PET-7005 | – | ||||||
| ET-7015 | ET-7215 | 7 | – | RTD: Pt100, Pt1000, Ni120, Cu100, Cu1000 |
– | – | – |
| PET-7015 | PET-7215 | ||||||
| ET-7017 | ET-7217 | 8 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA |
– | 4 | Open Collector | Sink (NPN) |
| PET-7017 | PET-7217 | ||||||
| ET-7017-10 | ET-7217-10 | 10/20 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA |
– | – | – | – |
| PET-7017-10 | PET-7217-10 | ||||||
| – | ET-7217-A5 | 8 | ±50 V, ±150 V | – | 4 | Open Collector | Sink (NPN) |
| – | PET-7217-A5 | ||||||
| – | ET-7217RMS | 8 |
0~+10 Vrms, 0~+5 Vrms, 0~+1 Vrms, 0~+500 mVrms, 0~+150 mVrms |
– | 4 | Open Collector | Sink (NPN) |
| – | PET-7217RMS | ||||||
|
Note 1: We recommend ET-7018Z / PET-7018Z and ET-7019Z / PET-7019Z for highly accurate thermocouple measurement. Note 2: 6 DO channels for ET-7018Z, PET-7018Z, ET-7019Z, PET-7019Z. 3 DO channels for ET-7218Z, PET-7218Z, ET-7219Z, PET-7219Z. |
|||||||
Application
Specification
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, PoE |
| Analog Input | |
|---|---|
| Channels | 8 (Differential) |
| Type | True RMS |
| Resolution | 16-bit |
| Accuracy |
Sinusoid: 50/60 Hz: ±0.15% of FSR 45 Hz ~ 10 kHz: ±0.5% of FSR Non-Sinusoid: Crest Factor = 1 ~ 2: ±0.2% of FSR Crest Factor = 2 ~ 3: ±0.35% of FSR DC: 0 ~ 10 Vrms / 0 ~ 5 Vrms / 0 ~ 1 Vrms: ±0.3% of FSR 0 ~ 500 mVrms / 0 ~ 150 mVrms: ±0.7% of FSR |
| Sampling Rate | 10 Hz (total channels) |
| Input Impedance | >2 MΩ |
| Overvoltage Protection | ±35 Vrms / ±28 VDC |
| Individual Channel Configuration | Yes |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 4.4 W (max.) |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
