NT-S1-4G
NT-S1-4G
4G IOT Gateway
For acquiring the remote operating parameters and process management, 4G IOT Gateway help machine to access internet via GPRS/4G and establish TCP/IP connection with server. 4G IOT Gateway can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.
Features
- RS485 : 1 RS485 port, Support Modbus RTU protocol over RS485
- 4G communication : RS485 to GPRS/4G two-way data transmission
- System : Adopted highly integrated industrial 32-bit ARM MCU
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
For acquiring the remote operating parameters and process management, NT-S1-4G IOT Gateway help machinetoaccess internet via GPRS/4G and establish TCP/IP connection with server.NT-S1-4G can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

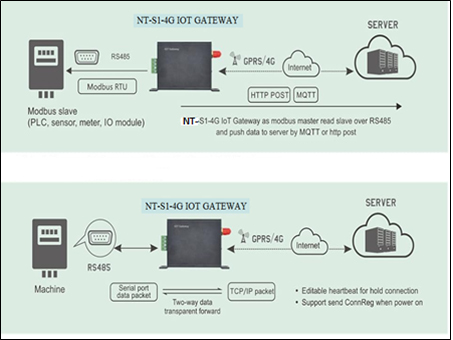

Application
Specification
| Working Environment | |
|---|---|
| Core MCU | Cortex M3 32-bit ARM |
| Power Supply | 9–28V DC (Standard adapter: DC 12V / 1.5A) |
| Power Consumption |
12V input Max: 150 mA Average: 50 mA |
| Optional Network |
GSM/GPRS (4 band 850/900/1800/1900 MHz) FDD LTE (4G) |
| Config Port | Mini USB (CH341 chip) |
| Other Interface | SIM/UIM standard user card interface |
| Antenna | Standard SMA female interface (50Ω) |
| Temperature | -30℃ to +70℃ |
| Humidity | 5% – 95% (non-condensing) |
| Physical | |
| Terminals | 1 × 4-pin, 3.81 mm spacing, pluggable |
| Housing | IP30 protection |
| Dimensions | 21 × 51 × 65 mm |
| Weight | 150 g |
