NT300-4G
NT300-4G
Intelligent 4G LTE VPN Router, Industrial Design, Dual SIM Failover, RS232 and RS485 Serial connection
Features
- Wireless Mobile Broadband 2G / 3G / 4G Connection
- Connection manager ensure seamless communication
- Support WCDMA/HSPA+ Dual-band 900/2100 MHz
- Support GSM/GPRS Dual-band 900/1800 MHz
- Support Multiple VPN tunnels for data encryption
Designed for industrial usage
- Power Input Range 9 to 36 VDC
- Industrial design for harsh environment
- Aluminum casing and din-rail installation
Easy to use and easy maintenance
- User friendly web interface for user interaction
- Support Central Management Platform
- Reduce high costs for onsite maintenance
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
NT300 industrial cellular VPN router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.
NT300 router has dual SIM backup, 1 LAN ports, RS232 and RS485 interfaces are provided to support Serial to IP communication. NT300 router supports 9 to 36 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.

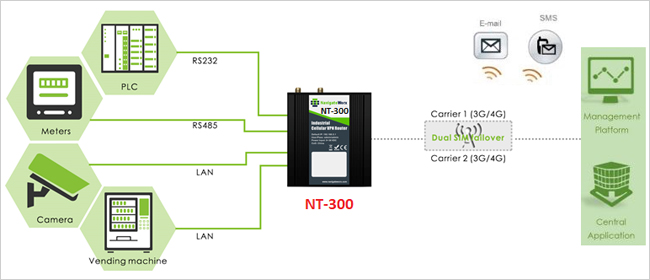

Application
Specification
| CELLULAR | |
|---|---|
| Frequency Bands |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B28A LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 More Bands Demands please contact with us |
| SIM | 2 x SIM slots, 1.8V / 3V |
| SIM Failover | Auto-switch cases: data limited, no network, network denied, data connection fail |
| Antennas | 2 (MAIN + AUX), SMA female |
| ETHERNET | |
| Number of Ports | 1 x LAN, Auto 10/100 Mbps |
| Magnet Isolation Protection | 1.5 KV |
| SERIAL | |
| Number of Ports | 1 x RS-232 (3 PIN) + 1 x RS-485 |
| Connector | Terminal block |
| ESD Protection | ± 15 KV |
| Baud Rate | 300 bps to 115200 bps |
| POWER | |
| Connector | 2-pin 3.5 mm female socket |
| Input Voltage Range | 9 to 36 VDC |
| Power Consumption |
Idle: 50 mA @12 V Data link: 200 mA (peak) @12 V |
| HARDWARE | |
| Watchdog | Built-in watchdog |
| LEDs | SYS, NET, USR, RSSI x3 |
| Reset Button | Reset/restore to factory default button |
| Ingress Protection | IP30 |
| Housing & Weight | Aluminum, 200 g |
| Dimensions | 82.8 mm × 93.3 mm × 28.8 mm |
| Installations | DIN-rail mounting |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| NETWORK | |
| Routing | Static routing |
| Network Protocols | TCP, UDP, IPv4, ICMP, NTP, DNS, HTTP, HTTPS, ARP, PPP, DHCP, IP Passthrough |
| Connection Manager | Ping Detection, Timer Reboot, ICMP for link detection |
| Firewall | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| DDNS | Supported some service providers, others can be configured manually |
| SMS | SMS Configuration |
| VPN | |
| OpenVPN | Server/client mode, client mode supports up to 5 OpenVPN tunnels |
| GRE | Layer2 and Layer3, supports up to 5 GRE VPN tunnels |
| MONITORING & MANAGEMENT | |
| Web GUI | HTTP/HTTPS, firmware upgrade |
| CLI | SSHv2 and TELNET |
| Management Platform | Central Management Platform |
| APP CENTER | |
| Apps |
VPN: IPsec, L2TP, PPTP, DMVPN Network: Dynamic Routing (RIPv1/v2, OSPF, BGP), VRRP, Email Notification, SMS Gateway Management: AT over IP, AT over COM, AT over Telnet, SNMPv1/v2/v3, TR069 Protocol Converter: Modbus Master, Modbus Slave, Modbus Gateway IEC101-104, DLMS to IEC104 |
| APPROVAL | |
| EMI | EN 55032:2012 Class B |
| EMS |
IEC 61000-4-2 ESD Level 4 IEC 61000-4-3 RS Level 3 IEC 61000-4-4 EFT Level 3 IEC 61000-4-5 Surge Level 3 IEC 61000-4-6 CS Level 3 IEC 61000-4-12 Level 3 |
| Vibration | EN50155 |
