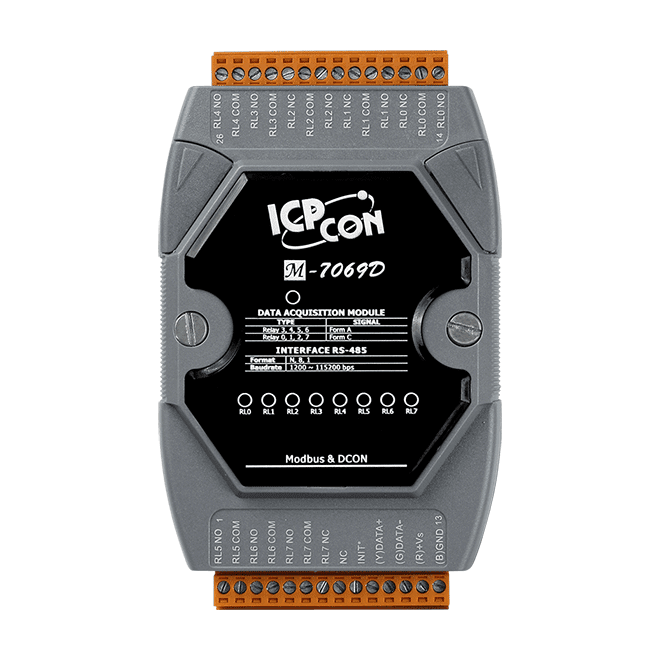

M-7069D-G
M-7069D-G
8-ch Isolated (Wet, 80~250 VAC/±80~±250 VDC) DI Module with LED Display
Features
- Supports AC/DC Digital Input
- 8 Differential Digital Inputs
- High Over-voltage Input Protection
- All Channels Can be Used as 16-bit Counters
- Channel-to-Channel Isolation
- Built-in Dual Watchdog
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The M-7068/M-7068D provides 4 Form A signal relay output channels and 4 Form C signal relay output channels, while The M-7069/M-7069D provides 4 Form A power relay output channels and 4 Form C power relay output channels. The M-7068D/M-7069D includes 8 LED indicators for channel status monitoring.
The M-7068(D)/M-7069(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments. The M-7068(D) is the ideal solution for small signal-switching applications, while The M-7069(D) is the perfect solution for high-power applications.
| Model | Digital Input | Power Relay Output | ||||||
|---|---|---|---|---|---|---|---|---|
| DCON | DCON, Modbus/RTU | Channels | ON Voltage Level | Channels | Contact Rating | Operate Time | Release Time | Electrical Endurance |
| I-7060D-G | M-7060D-G | 4 (3750 Vrms) |
+1 VDC Max. |
RL1, RL2: Form A × 2 RL3, RL4: Form C × 2 |
0.6 A @ 125 VAC, 2 A @ 30 VDC |
3 ms | 2 ms | 5 × 105 |
| - | M-7060PD-G | +4 VDC Max. |
Form A: 16 A @ 250 VAC, 10 A @ 30 VDC Form C: NO 10 A @ 250 VAC, NC 6 A @ 250 VAC |
10 ms | 5 ms | 1 × 107 | ||
| I-7061D-G | M-7061D-G | - | - | Form A × 12 | 5 A @ 250 VAC, 5 A @ 30 VDC |
10 ms | 5 ms | 1 × 105 |
| I-7063D | - | 8 (3750 Vrms) | +1 VDC Max. | Form A × 3 | 6 ms | 3 ms | ||
| I-7065D-G | M-7065D-G | 4 (3750 Vrms) | Form A × 5 | |||||
| I-7067D-G | M-7067D-G | - | - | Form A × 7 | 0.5 A @ 120 VAC, 1.0 A @ 24 VDC |
5 ms | 2 ms | |
| - | M-7068D-G | Form A × 4, Form C × 4 |
2 A @ 30 VDC, 0.24 A @ 220 VDC, 0.25 A @ 250 VAC |
3 ms | 4 ms | 2 × 105 | ||
| - | M-7069D-G |
Form A: 6 A @ 35 VDC, 6 A @ 240 VAC Form C: 5 A @ 30 VDC, 5 A @ 250 VAC |
5 ms | 1 ms | 1 × 105 | |||
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
|---|---|
| Type | I/O LED Indicator |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for 8 Relay and Power Line ±2 kV for RS-485 Port Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x Relay Output |
| Relay Output | |
|---|---|
| Channels | 8 (4 x Form A, 4 x Form C) |
| Type | Power Relay |
| Contact Material | Silver Cadmium Alloy |
| Contact Rating |
Form A: 6 A @ 35 VDC 6 A @ 240 VAC Form C: 5 A @ 30 VDC 5 A @ 250 VAC |
| Operate Time | 5 ms (typical) |
| Release Time | 1 ms (typical) |
| Electrical Endurance | 1 x 105 ops. |
| Mechanical Endurance |
Form A: 30 x 106 ops. Form C: 15 x 106 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 2.5 W max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
