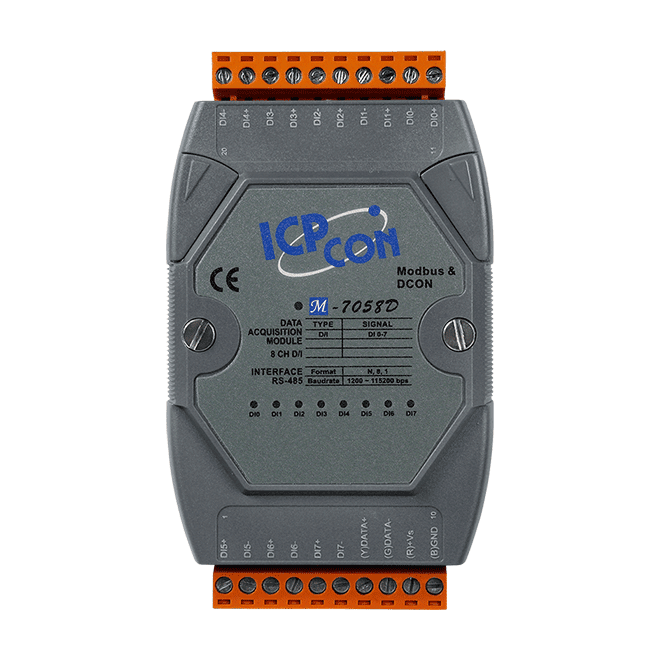

M-7058D-G
M-7058D-G
8-ch Isolated (Wet, 80~250 VAC/±80~±250 VDC) DI Module with LED Display
Features
- Supports AC/DC Digital Input
- 8 Differential Digital Inputs
- High Over-voltage Input Protection
- All Channels Can be Used as 16-bit Counters
- Channel-to-Channel Isolation
- Built-in Dual Watchdog
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The M-7058/M-7058D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All DI channels are also able to be used as 16-bit counters. The M-7058D has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. The M-7058(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7058(D).
| Model | Digital Input | Digital Output | |||||||
|---|---|---|---|---|---|---|---|---|---|
| DCON | DCON, Modbus/RTU | Channels | Type | Sink/Source | ON Voltage Level | Channels | Type | Sink/Source | Load Current |
| I-7058D-G | M-7058D-G | 8 | Wet Contact | Sink/Source | 80 ~ 250 VAC, ±80 ~ ±250 VDC |
- | - | - | - |
| I-7059D-G | M-7059D-G | 10 ~ 80 VAC, ±15 ~ ±80 VDC |
|||||||
| - | M-7058D-16-G | 16 | 80 ~ 250 VAC, ±100 ~ ±250 VDC |
2 | Isolated Open Collector | Sink | 600 mA/Channel | ||
| - | M-7059D-16-G | 10 ~ 80 VAC, ±15 ~ ±80 VDC |
|||||||
| Note: DI channel can be used as DI and low speed (100 Hz) counter. | |||||||||
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
|---|---|
| Type | I/O LED Indicator |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x Digital Input |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | 80 ~ 250 VAC ±80 ~ ±250 VDC |
| OFF Voltage Level | 30 VAC max. ±30 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 68 kΩ |
| Overvoltage Protection | 300 VAC/VDC max. |
| Channel-to-Channel Isolation | ±2 kV |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
