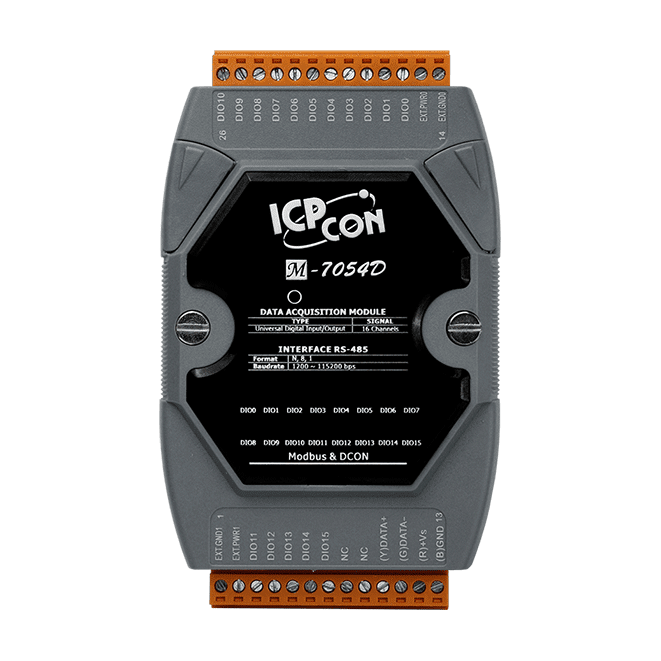

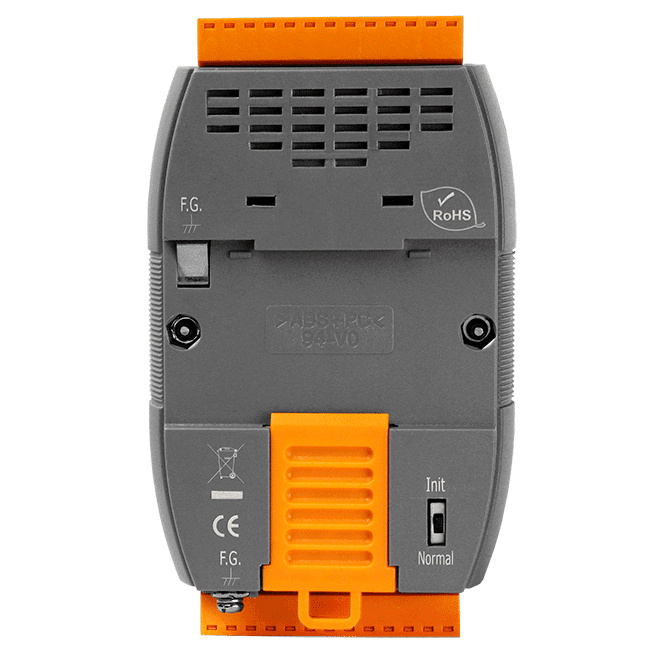

16-ch Isolated Universal DI/DO Module (100 mA Max.), with LED Display
Features
- 16 Universal Digital Inputs or Outputs
- 100 mA Load Current per Channel
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The M-7054/M-7054D provides 16 channels for universal digital input or output, which can be selected via wire connections. The digital input channels are dry contact and can be used as 16-bit counters, while the digital output channels are sink-type with short circuit protection. The M-7054D has 16 LED indicators for channel status monitoring. The M-7054(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. ±4 kV ESD, ±4 kV EFT, and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
| Model | DI + DO | Digital Input | Digital Output | |||||
|---|---|---|---|---|---|---|---|---|
| DCON | DCON, Modbus/RTU | Channels | Type | Sink/Source | Type | Load Voltage | Load Current | Short-circuit Protection |
| - | M-7054D-G | 16 | Dry Contact | Source | Open Collector (Sink) | +5 ~ +30 VDC | 100 mA/channel | - |
| - | M-7054PD-G | +5 ~ +50 VDC | 500 mA/channel | Yes | ||||
| Note: DI channel can be used as DI and low speed (100 Hz) counter. | ||||||||
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
|---|---|
| Type | I/O LED Indicator |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x DIO |
| Digital Input/Counter | |
|---|---|
| Channels | 16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection) |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 10 ms |
| Overvoltage Protection | ±35 VDC |
| Digital Output | |
|---|---|
| Channels | 16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection) |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
