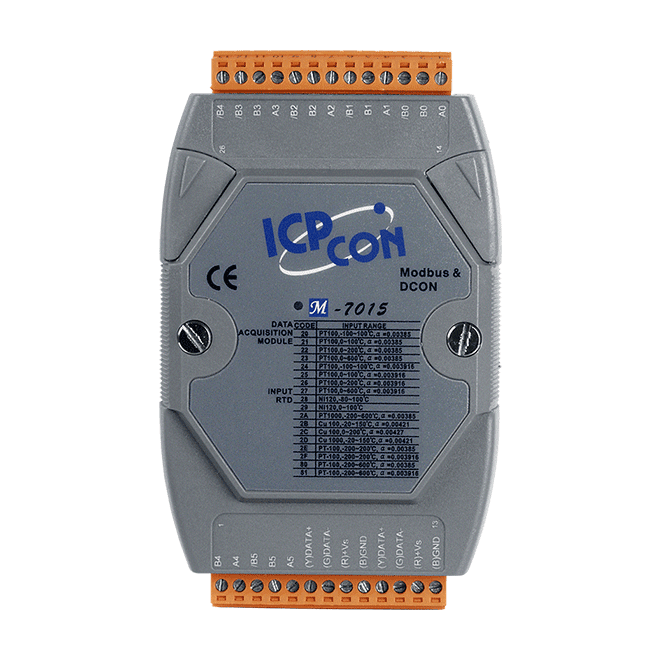

M-7015-G
M-7015-G
6-ch RTD Input Module
Features
- 6 RTD Inputs
- High Resolution: 16-bit
- Open Wire Detection
- Built-in Dual Watchdog
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The M-7015 is a 6-channel RTD input module that is used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor. The M-7015 is fully RoHS-compliant and features 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7015 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7015.
| Model | Analog Input | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| DCON | Modbus/RTU | Channels | Resolution | Sampling | Sensor Type | Open Wire | Configurable | 3-Wire Support | Overvoltage |
| I-7013-G | - | 1 | 16-bit | 10 Hz | Pt100, Pt1000, Ni120 | Yes | - | Yes | ±5 V |
| - | M-7013PD-G | 1 | 16-bit | 10 Hz | Pt100, Pt1000, Ni120 | Yes | - | Yes | ±30 V |
| I-7015-G | M-7015-G | 6 diff. | 16-bit | 12 Hz | Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 | Yes | - | Yes | ±110 V |
| I-7015P-G | M-7015P-G | 6 diff. | 16-bit | 12 Hz | Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 | Yes | Yes | Yes | ±110 V |
| I-7033 | M-7033-G | 3 diff. | 16-bit | 15 Hz | Pt100, Pt1000, Ni120 | - | - | - | ±5 V |
| I-7033D-G | M-7033D-G | 3 diff. | 16-bit | 15 Hz | Pt100, Pt1000, Ni120 | - | - | - | ±5 V |
| Note:
|
|||||||||
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 6 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| Range | 3.2 kΩ max. |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Sampling Rate | 12 Hz (Total) |
| Overvoltage Protection | > 120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
