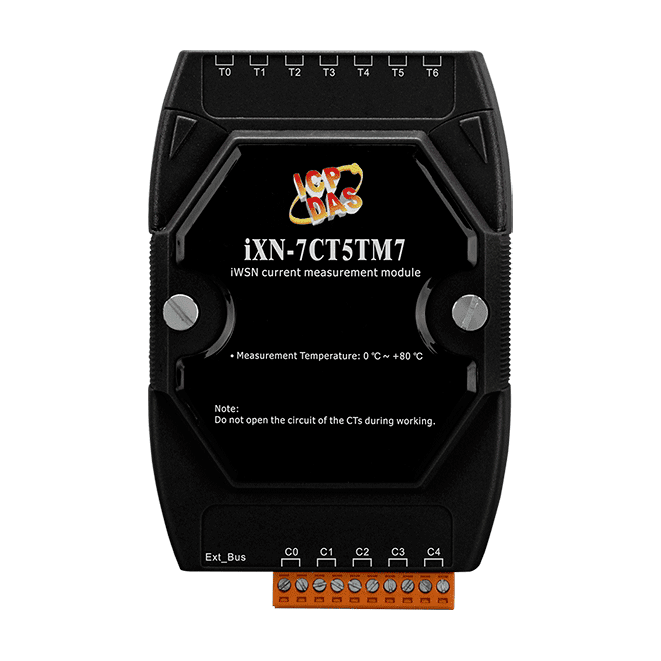

iXN Extension Module with 5-ch CT Input and 7-ch Thermistor Input (Asia Only)

Features

Supports multi-channel IO expansion.
Allows connecting different measurement range of CTs in one expansion module.
Powered by iWSN sensing module.
Removable screwed terminal block for easy maintenance.
Offers wall-mount mechanism and magnet for installation.

Introduction
Application
Specification
Download
Get A Quote

Introduction

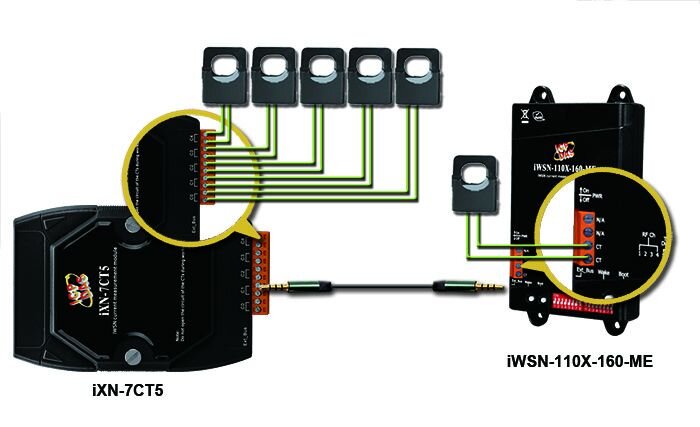

In order to upgrade the flexibility and expansibility of iWSN sensing module, the iXN expansion module is developed to connect to the iWSN sensing module. By means of iXN expansion modules, the iWSN sensing module can offer more current and temperature measurement channels. The iXN expansion module is energized by iWSN sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN expansion module provide removable screwed terminal block, wall-mount mechanism and magnet adsorption for installation, and also allows connecting different measurement range of CTs to fit various applications. More kinds of IO interface will be designed to rich the iWSN functionalities and unleash the power of iWSN sensing modules.

iXN Expansion Sensing Module
Model	Split-core CT Channel Number	Split-core CT Error	Thermistor Channel Number	Temperature Error
iXN-7CT5	5	< 3% or 0.3A	-	-
iXN-7CT5TM7	5	< 3% or 0.3A	7	< 2 °C

Application

Specification

Temperature Measurement
Channels	7
Range	0 °C ~ +80 °C
Accuracy	±2 °C
Installation	Wall-mount or magnet adsorption

CT
Split-core CT Channels	5
Split-core CT Type	Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire
Input Voltage	Maximum 500VAC, 60 Hz
Accuracy	±3% or ±0.3A

Power
Consumption	1-sec Tx Duty: 21 A 10-sec Tx Duty: 13 A 30-sec Tx Duty: 12 A 60-sec Tx Duty: 12 A
Input Type	iWSN sensing module provides power through the audio line.
