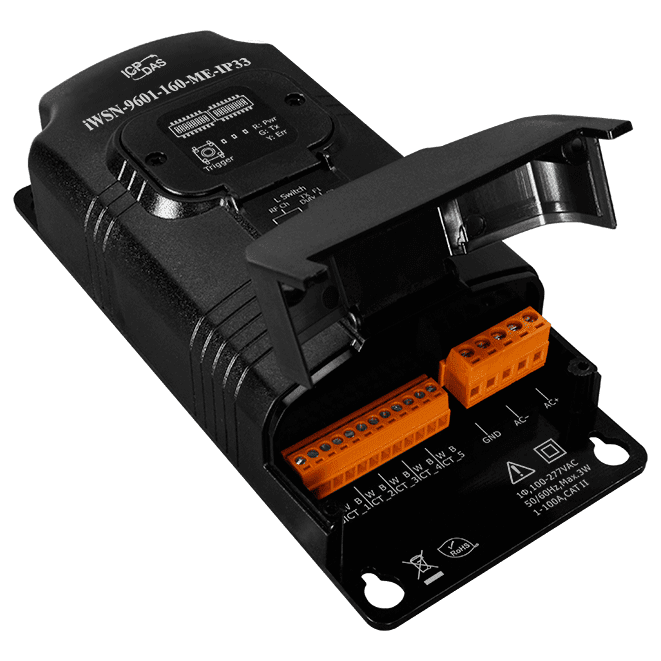

iWSN-9601-xxx-ME-IP33 series

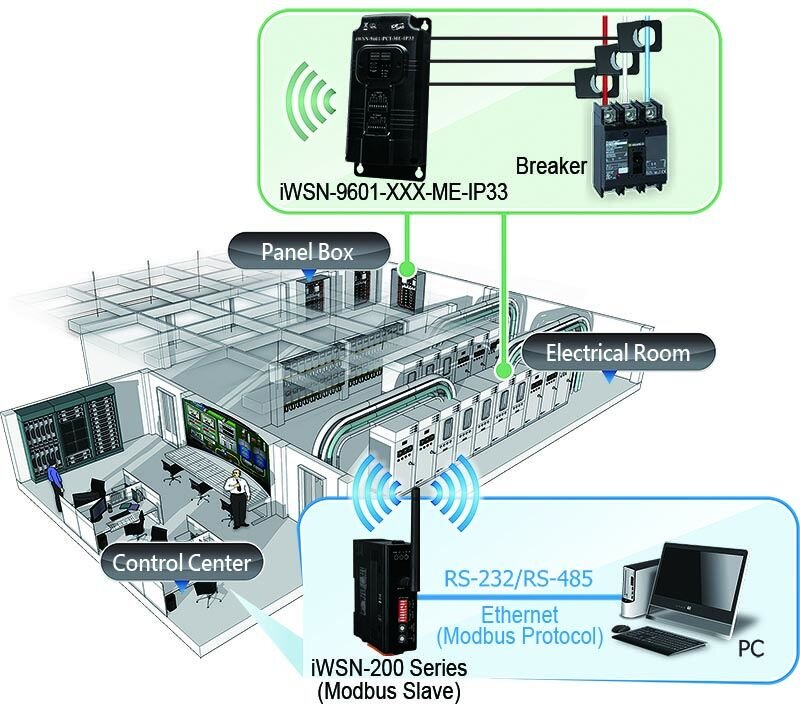

The iWSN-9601 series module is a single-phase AC power meter, which provides one single-phase voltage input and 6 current CT inputs, and suits measuring the power information of different equipment powered by the same AC source. By means of wireless communication and powering from the measured voltage cable, it can greatly reduce the cost and duration of installation, and satisfy to the demand of distributed deployment and quick setup. Moreover, the features of Sub-GHz radio frequency and data supplement mechanism effectively improve the reliability of the wireless communication especially in the crowed or seriously shielded space of the factory environment. Consider the maintenance and installation issues, the iWSN-9601 series module is configured by the DIP switches, and uses special housing with IP33 protection to avoid the circuit short while the fire sprinkler system is activated if the module is located out of the panel box. Through the design of RTC and data timestamp, the iWSN-9601 series can fit the power saving applications, such as machine and process power efficiency improvement, power information administration, calculation of carbon emission, predictive maintenance, and big data analysis of power consumption.
