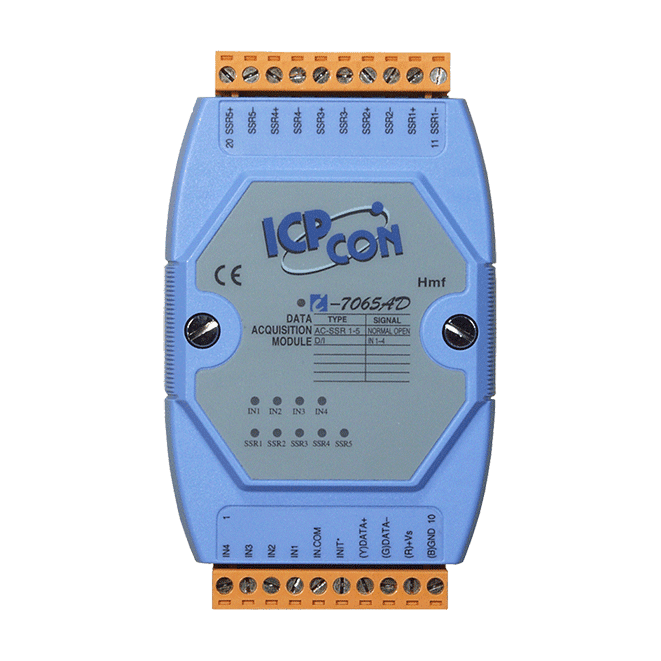

I-7065AD-G
I-7065AD-G
4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch AC-SSR Output Module with LED Display
Features
- 4 Digital Inputs and 5 AC SSR Outputs
- Sink- or Source-type Digital Input
- Form A AC Solid State Relay Output
- No Arcing, No Bounce, and No Switching Noise
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The I-7063A module provides 8 digital input channels and 3 AC SSR(Solid State Relay) output channels, and the I-7065A provides 4 digital input channels and 5 AC SSR output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of AC SSR technology also eliminates potential for arcing, bounce, and switching noise. The I-7063AD provides 11 LED indicators and the I-7065AD provides 9 LED indicators that can be used to monitor the status of the digital input and SSR output. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
| Model | Digital Input | Solid-State Relay Output | |||||
|---|---|---|---|---|---|---|---|
| DCON | DCON, Modbus/RTU | Digital Input Channels | ON Voltage Level | Channels | Contact Rating | Operate Time | Release Time |
| I-7063AD | - | 8 Isolation (Common Source, 3750 Vrms) | +1 VDC Max. | 3 AC-SSR | 24 ~ 265 VAC @ 1A | 1/2 cycle + 1 ms | |
| I-7063BD | - | 3 DC-SSR | 3 ~ 30 VDC @ 1A | 1 ms | |||
| I-7065AD | - | 4 Isolation (Common Source, 3750 Vrms) | 5 AC-SSR | 24 ~ 265 VAC @ 1A | 1/2 cycle + 1 ms | ||
| I-7065BD | M-7065BD-G | 3 DC-SSR | 3 ~ 30 VDC @ 1A | 1 ms | |||
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 9 x Digital Input/Relay Output |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +1 VDC max. |
| OFF Voltage Level | +4 ~ +30 VDC |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±35 VDC |
| Relay Output | |
|---|---|
| Channels | 5 (Form A) |
| Type | AC-SSR |
| Contact Rating | 24 ~ 265 VAC @ 1A |
| Leakage Current | 1.5 mA |
| Operate Time | 1/2 cycle + 1 ms |
| Release Time | 1/2 cycle + 1 ms |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
