NT-T20-4G/WI-FI
NT-T20-4G/WI-FI

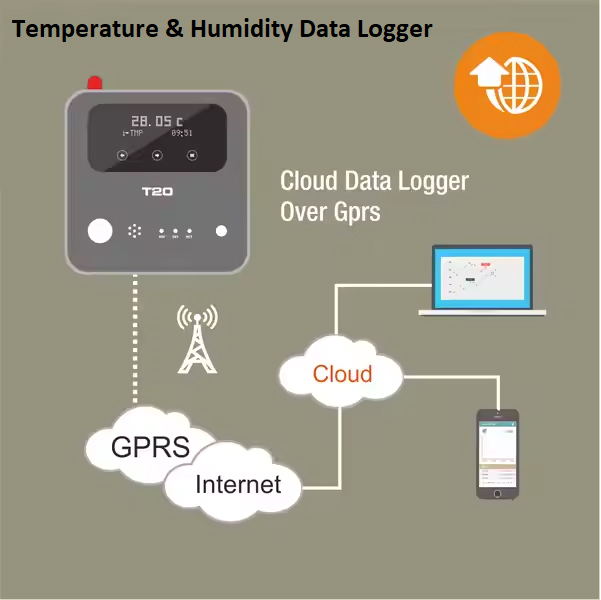

Wireless Tempreture and Humidity Data Logger
Wireless temperature Humidity Data Logger
Provide Cellular or Wi-Fi version
Temperature Humidity Measurement
- Temperature measurement range: - 40° C to + 80° C (±0.3 0 C)
- Humidity measurement range: 0% to 100%RH (±2RH%)
- Support up to 2 temperature probes or 2 temperature & humidity probes
Display
- OLED display screen
- Touch key switch menu
Data Logger
- Wireless record to Cloud, optional cellular or Wi-Fi version
- Memory data storage capacity: 15000 readings
- Automatically data store when network connection lost
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Application
Specification
| MCU | Cortex-M3, 32-bit ARM |
| Power Supply | 12 V DC (Standard adapter: DC 12 V / 1.5 A) |
| Power Consumption | 12 V input: Max. 340 mA |
| Measurement Range |
Temperature: −40 °C to +80 °C (±0.3 °C) Humidity: 0% to 100% RH (±2% RH) |
| Probe Support |
Max. 2 probes (standard packing: 1 probe) Probe options: Temperature, Temperature & Humidity |
| Wireless Network | Either cellular (SIM required) or Wi-Fi (SIM not required) |
| Cellular |
GSM / GPRS (850 / 900 / 1800 / 1900 MHz) FDD-LTE (4G) |
| Wi-Fi | 802.11 b/g, security: WEP / WPA / WPA2 |
| GPS | Optional (available for 4G version) |
| Antenna Interface | Standard SMA female (50 Ω) |
| Display | OLED |
| Keypad | Touch keys |
| Digital Input | 2 channels |
| Digital Output |
3 relay outputs (NO) DC 220 V / 2 A, AC 125 V / 2 A |
| Alarm Indicator | Red LED light |
| Alarm Sound | Internal buzzer, loudness: 85 dB |
| Configuration Port | Mini USB (Windows supported) |
| Battery | Li-polymer, 500 mAh / 3.7 V (approx. 6 hours) |
| Operating Temperature | −30 °C ~ +70 °C |
| Operating Humidity | Relative humidity 95% |
| Dimensions | 130 × 130 × 20 mm |
| Weight | 265 g |
| Housing | Aluminum front panel, ABS back case |
