NT-L1T
NT-L1T
GPRS/4G/Wi-Fi Tempreture Transmitter

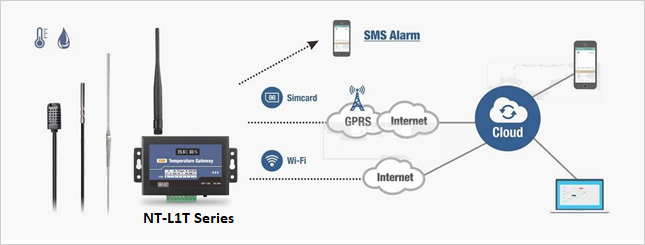

NT-L1T series temperature transmitter is designed for temperature humidity of logging, monitoring,alert and control. It comes with temperature probe, and transmit data by GPRS/4G or Wi-Fi. NT provide free cloud service, real-time data dashboard, graph, history records can be shown on web and APP. And alert by email or sms. With output, it supports temperature control by remote or local.
Features
- Temperature wireless transmission
- Temperature monitoring on Cloud
- Temperature alarm
- Temperature Control
- Power lost alarm
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Application
Specification
| System | |
| CPU | STM32 |
| Power Supply | 9–28 V DC |
| Power Consumption | 12 V input: Max. 150 mA / Average 50 mA |
| Working Environment | -30 °C ~ +70 °C, 5% ~ 95% RH (non-condensing) |
| RTC | Updates automatically via NTP or manually |
| Communicationt | |
| Ethernet Port | 1 × RJ45, 10/100M adaptive |
| RS-485 Ports | 2 ports, baud rate: 1200~115200 bps, default 9600, N, 8, 1 |
| USB | Configuration port, connects to PC, provides configuration software |
| IO Ports | |
| Digital Input |
Dry contact trigger Can act as pulse counter (counting frequency: 50Hz) |
| Digital Output (Transistor) |
Drive voltage = power supply voltage Drive current ≤ 500mA Normal open |
| Digital Output (Relay) |
Normal open Contact load: 5A / 250VAC, 30VDC |
| Analog Input |
Receive 4-20mA Sampling frequency: 33Hz, 16-bit precision |
| Temperature Input |
Connect DS18B20 temperature probe Measurement range: -55℃ ~ 125℃ |
| Physical | |
|---|---|
| Dimension | 128 × 77 × 33 mm |
| Weight | 390 g |
| Protection | IP30 |
| Installation | DIN rail mounting or screw fixing |
| 4G Options | |
|---|---|
| Frequency Options |
Option 1 – EU: LTE-FDD B1/3/5/7/8/20/28, LTE-TDD B38/40/41, WCDMA B1/5/8, GSM/EDGE B3/8 Option 2 – AU: LTE-FDD B1/2/3/4/5/7/8/28/66, LTE-TDD B40, WCDMA B1/2/4/5/8, GSM/EDGE B2/3/5/8 Option 3 – A: LTE-FDD B2/4/12, LTE-TDD —, WCDMA B2/4/5, GSM/EDGE — |
| 4G Working Area |
Option 1 – EU: Europe, Middle East, Africa, Korea, Thailand, Southeast Asia Option 2 – AU: Australia, New Zealand, Latin America, Taiwan Option 3 – A: The United States, Canada |
