NT-L Series
NT-L Series
IOT M2M Gateway

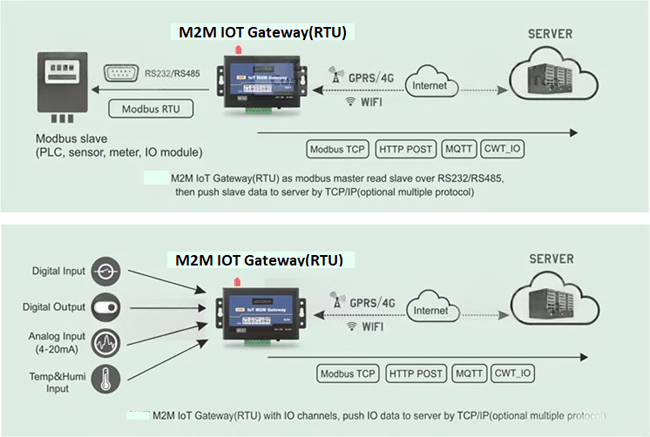

For acquiring the remote operating parameters and process management, NT-L series IOT M2M Gateway help machine to access internet via GPRS/4G/ and establish TCP/IP connection with server. NT-L Series can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.
System Features
- Adopted highly integrated industrial 32-bit ARM MCU
- Reliable performance with built-in double watchdog, 24×7 operation
- With signal filtering mechanisms
- Network-reconnect and retransmission to ensure data accurately transmit
- Update RTC automatically or manually, clock source support Sms, NTP, NT IO Server
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Application
Specification
| Core | MCU | Cortex M3 32-bit ARM |
| Power supply | 9-28V DC (Standard adapter: DC 12V/1.5A) | |
| Consumption | 12V input Max. 150mA/Average 50mA | |
| Network | Optional Network | GSM/GPRS (4 band 850/900/1800/1900Mhz) FDD LTE(4G) Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 |
| Config port | Mini USB | PL2303 chip |
| Other interface | SIM/UIM | Standard user card interface |
| Antenna | Standard SMA female interface (50Ω) | |
| Others | Optional Battery | lithium-polymer, 500mAh/3.7V，life:8-20 hours |
| Working Environment | Temperature | -30℃~+70℃ |
| Humidity | 5~95%(non-condensing) | |
| Physical | Terminals | 1×8pin 3.81mm spacing, pluggable |
| Housing | Providing IP30 protection | |
| Dimension | 88×60×25mm | |
| Weight | 150G |
