NT-5018

NT-5018

Cellular RTU Module With 4DI, 2DO and 4AI

Features

  • IO state-monitoring and data acquisition
  • SMS alarm
  • Email alarm
  • Optional GPRS/3G/4G Communication
  • Ethernet communication
  • NT cloud
  • 7x24 operation

  • Introduction
  • Application
  • Specification
  • Download
  • Get A Quote

Introduction

NT-5018 cellular RTU with DI, DO, AI, RS232/RS485 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/Ethernet communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

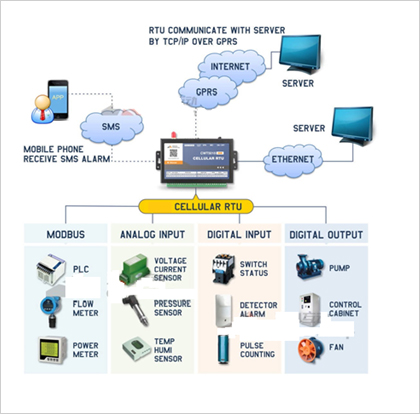

Application

NT-5018

Specification

MCU Cortex-M3, 32-bit ARM
Power Supply 9–28 V DC (Standard adapter: DC 12 V / 1.5 A)
Power Consumption 12 V input: Max. 150 mA / Average 50 mA
Cellular Module Default: GSM (2G, quad-band 850 / 900 / 1800 / 1900 MHz)
Optional: WCDMA (3G), FDD-LTE (4G)
SIM / UIM Standard user card interface
Antenna Interface Standard SMA female (50 Ω)
Working Temperature −30 ℃ ~ +70 ℃
Working Humidity Relative humidity up to 95%
Dimensions 130 × 80 × 25 mm
Weight 390 g
Housing Iron housing, IP30 protection
Terminals 2 × 14-pin, 3.81 mm spacing, pluggable
