NT-5005
NT-5005
Industrial Dual-SIM 4G/LTE Router with 1 x LAN & DB9 Serial RS-232 & RS-485
• Simple and easy to use
• GSM alarm and controller

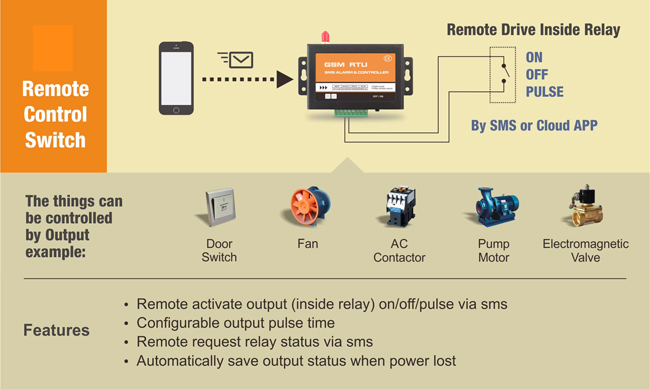

• GSM remote switch
• Monitor 2 digital inputs alarm via sms
• Control 2 outputs via sms
Features
- Configurable for alarm and recover sms
- Automatically report the status of itself on schedule
- Internal battery (Optional)
- Support remote setting via sms commands
- Preset 10phone numbers (can be distributed authority)
- Remote add/edit/delete phone group
- Automatically update internal clock via sms
- Time stamped in alarm or recover messages
- Adopted highly integated industrial CPU
- Reliable performance with built-in double watchdog
- Low maintenance, 24x7 operation
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Application
Specification
| DC Power Supply | 12–24 V DC (Standard adapter: DC 12 V / 1.5 A) |
| Power Consumption | 12 V input: Max. 150 mA / Average 50 mA |
| Frequency Range | Quad-band 900 / 1800 / 850 / 1900 MHz |
| SIM Card | Supports 3 V & 1.8 V SIM card |
| Antenna | 50 Ω SMA antenna interface |
| Communication Interface | RS-232C |
| Working Temperature | −30 °C ~ +70 °C |
| Working Humidity | Relative humidity up to 95% |
| Digital Input | 2 digital inputs (dry contact) |
| Output | NT-5005A: 2 drivable relay outputs (open-collector) |
| Output | NT-5005B: 1 relay output (3 A, 220 VAC) |
| Output Drive Voltage | Equal to input DC voltage |
| Output Drive Power | Drive voltage 35 V, drive current ≤ 500 mA |
| Exterior Dimensions | 88 × 60 × 25 mm |
| Weight | 150 g |
