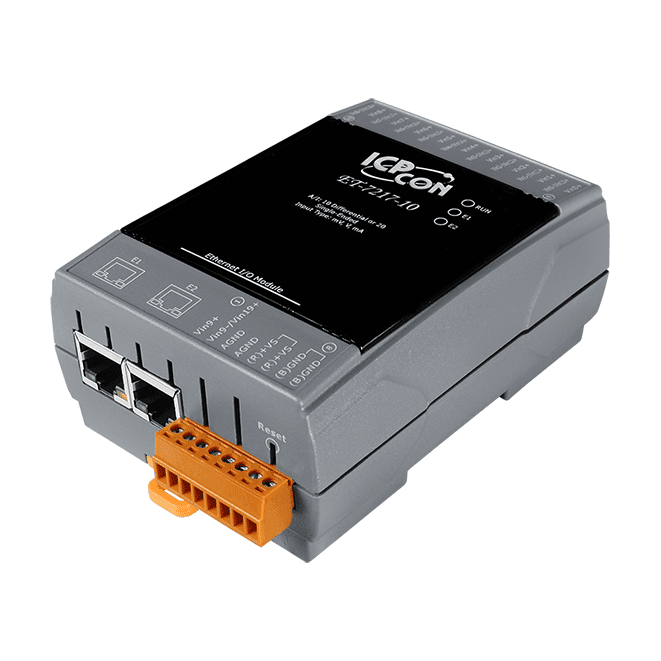

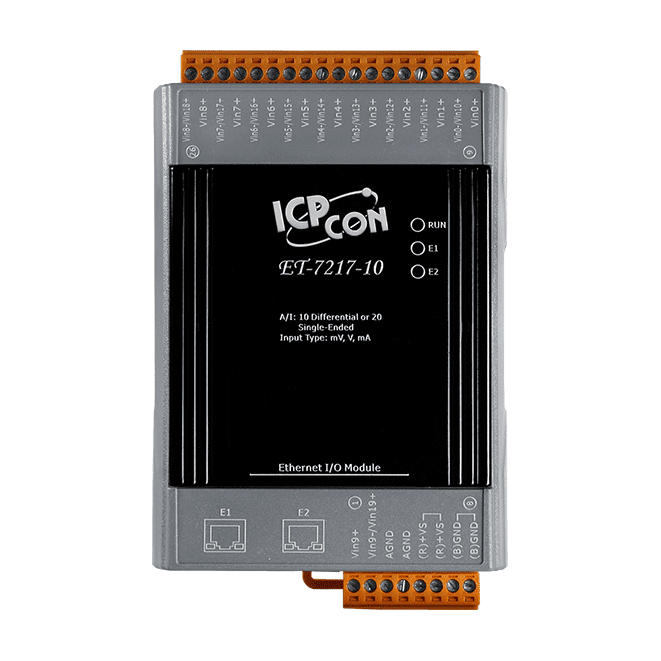

Ethernet I/O Module with 2-port Ethernet Switch, 10/20-ch AI
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch (LAN bypass) for Daisy-chain Topology
- Dual Watchdog
- Built-in I/O
- AI: 10/20 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ET-7217-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of ET-7217-10 has two modes; fast mode and normal mode for your consideration. ET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.
| Analog Input | |||||||
|---|---|---|---|---|---|---|---|
| Model | AI | DO | |||||
| Channel | Voltage & Current Input | Sensor Input | Channel | Type | Sink/Source (NPN/PNP) | ||
| ET-7005 | – | 8 | – | Thermistor | 4 | Open Collector | Sink (NPN) |
| PET-7005 | – | ||||||
| ET-7015 | ET-7215 | 7 | – | RTD: Pt100, Pt1000, Ni120, Cu100, Cu1000 |
– | – | – |
| PET-7015 | PET-7215 | ||||||
| ET-7017 | ET-7217 | 8 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA |
– | 4 | Open Collector | Sink (NPN) |
| PET-7017 | PET-7217 | ||||||
| ET-7017-10 | ET-7217-10 | 10/20 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA |
– | – | – | – |
| PET-7017-10 | PET-7217-10 | ||||||
| – | ET-7217-A5 | 8 | ±50 V, ±150 V | – | 4 | Open Collector | Sink (NPN) |
| – | PET-7217-A5 | ||||||
| – | ET-7217RMS | 8 |
0~+10 Vrms, 0~+5 Vrms, 0~+1 Vrms, 0~+500 mVrms, 0~+150 mVrms |
– | 4 | Open Collector | Sink (NPN) |
| – | PET-7217RMS | ||||||
|
