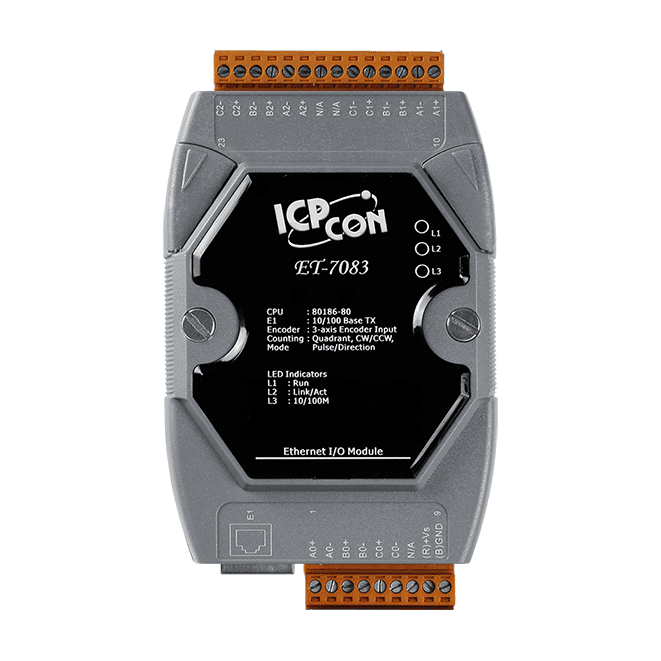

ET-7083
ET-7083
Ethernet I/O Module with 3-ch Encoder/Counter Input
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Built-in I/O
- 3-Axis 32-bit encoder/counter inputs
- 1 MHz max. for Quadrant mode
- 4 MHz max. for CW/CCW, Pulse/Direction mode
- Counter Value Retention
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ET-7083 is a 3-axis high speed encoder/counter module. Each axis can be individually configured for Quadrant, Pulse/Direction, or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz. The encoder/counter module is equipped with a FRAM to retain the counter value after it is powered off. FRAM is a nonvolatile memory that can hold written data even after it is powered off. The data retention can be 10 years. And the feature can be configured as enabled or disabled.
| Encoder / Counter Input | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Encoder / Frequency / Counter Input | DO | |||||||
| Channel | Encoder | Counter | Frequency | Retention | Max Rate | Channel | Type | ||
| ET-7083 | – | 3 |
CW/CCW, Dir/Pulse, AB Phase |
– | – | Yes | 1 MHz | – | – |
| PET-7083 | |||||||||
| – | ET-7284 | 4 / 8 | Up or Up/Down | Yes | 200 kHz | 4 | Open Collector | ||
| PET-7284 | |||||||||
Application
Specification
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation |
Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Counter / Frequency / Encoder Input | |
|---|---|
| Channels | 3-axis |
| Counter Mode |
Quadrant CW/CCW Pulse/Direction |
| Bits | 32-bit |
| ON Voltage Level |
5 V: +3.5 ~ +5 VDC 12 V with 1 kΩ External Resistor: +5 ~ +12 VDC 24 V with 2 kΩ External Resistor: +7 ~ +24 VDC |
| OFF Voltage Level | +2 VDC (max.) |
| Individual Channel Configuration | Yes |
| Max. Speed |
Quadrant mode: 1 MHz CW/CCW mode: 4 MHz Pulse/Direction mode: 4 MHz |
| Counter Value Retention | Yes |
| Ethernet | |
|---|---|
| Ports | 1 × RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 2.7 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 × 123 × 35 (W × L × H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
