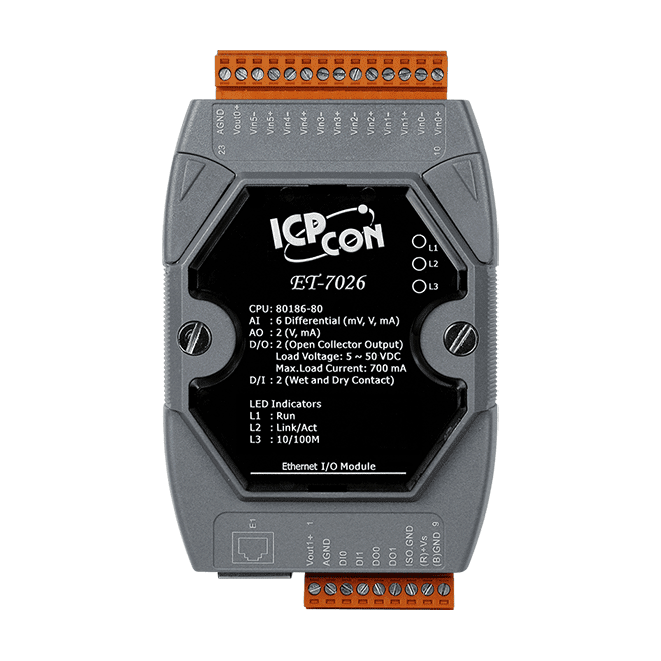

Ethernet I/O Module with 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- AI: 6 Channels
- AO: 2 Channels
- DI/Counter: 2 Channels
- DO: 2 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ET-7026 is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of the corresponding jumper.
| Multifunction I/O | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | AI | AO | DI / Counter | DO | ||||||
| Channel | Voltage & Current Input | Sensor Input | Channel | Voltage & Current Output | Channel | Type | Channel | Type | ||
| ET-7002 | ET-7202 | 3 |
±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, 0~20 mA, ±20 mA, 4~20 mA |
– | – | – | 6 | Wet (Sink, Source) | 3 | Power Relay (Form A) |
| PET-7002 | PET-7202 | |||||||||
| – | ET-7204 | 4 |
±500 mV, ±1V, ±5 V, ±10 V, 0~20 mA, ±20 mA, 4~20 mA |
– | 4 |
0~5 V, ±5 V, 0~10 V, ±10 V, 0~20 mA, 4~20 mA |
4 | Dry (Source), Wet (Sink) | – | – |
| PET-7204 | ||||||||||
| ET-7016 | – | 2 |
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, 0~20 mA, ±20 mA, 4~20 mA |
Strain Gauge, Load Cell, Full-Bridge, Half-Bridge, Quarter-Bridge |
1 | 0~10 V | 2 | Wet (Sink, Source) | 2 | Open Collector (Sink) |
| PET-7016 | ||||||||||
| ET-7024 | ET-7224 | – | – | – | 4 |
0~5 V, ±5 V, 0~10 V, ±10 V, 0~20 mA, 4~20 mA |
5 | Dry (Source), Wet (Sink, Source) | 5 | Open Collector (Sink) |
| PET-7024 | PET-7224 | |||||||||
| ET-7026 | ET-7226 | 6 |
±500 mV, ±1 V, ±5 V, ±10 V, 0~20 mA, ±20 mA, 4~20 mA |
– | 2 |
0~5 V, ±5 V, 0~10 V, ±10 V, 0~20 mA, 4~20 mA |
2 | Dry (Source), Wet (Sink, Source) | 2 | Open Collector (Sink) |
| PET-7026 | PET-7226 | |||||||||
| Note: The AO is configured as a voltage excitation source for the strain gauge. | ||||||||||
Application
Specification
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation |
Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Analog Input | |
|---|---|
| Channels | 6 (Differential) |
| Type |
Voltage Current |
| Range | ±500 mV, ±1V, ±5 V, ±10 V 0 ~ 20 mA, ±20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy |
Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate |
Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance |
Voltage: 2 MΩ Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type |
Voltage Current |
| Range |
+0 ~ +5 VDC, ±5 VDC, +0 ~ +10 VDC, ±10 VDC 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input / Counter | |
|---|---|
| Channels | 2 |
| Type |
Dry Contact Wet Contact |
| ON Voltage Level |
Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level |
Dry: Open Wet: +3.5 ~ +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500 m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink / Source (NPN / PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA / channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
