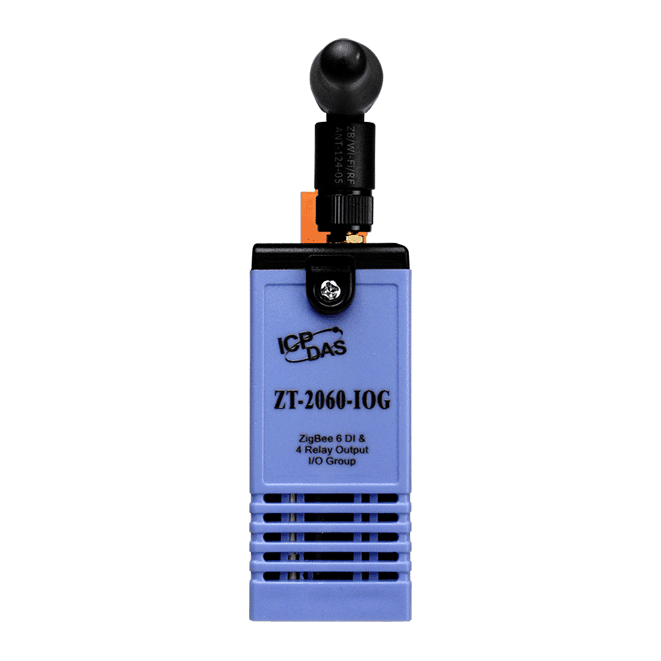

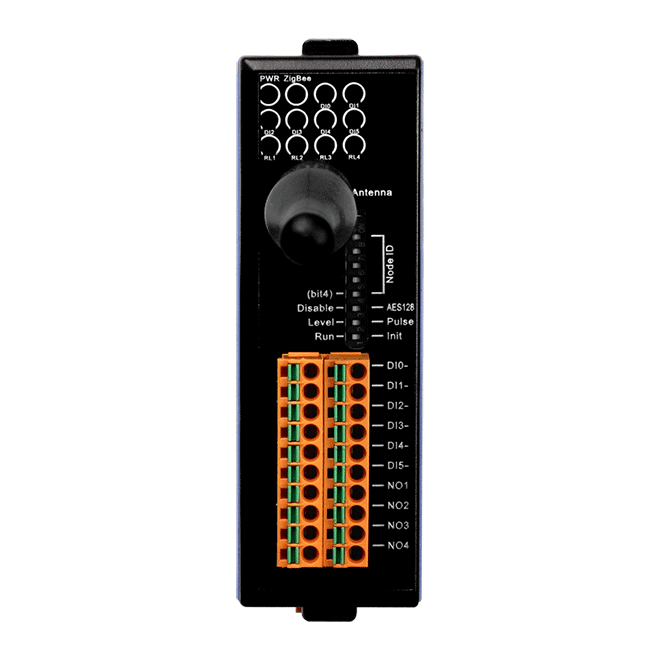

ZT-2060-IOG
ZT-2060-IOG
ZigBee I/O Group (Pair-connection) Module with 6-ch Isolated DI and 4-ch Power Relay (Full-function)(Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
- Supports AES-128 Encryption for the Wireless Communication
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- Physical Pair-connection Channels of 6 Digital Input and 4 Relay Output
- 280 Logical Pair-connection Channels Supported
- Configurable I/O Pairing Relationship
- DO Safe Value Setting for Wireless Disconnection Monitoring
- Surge and ESD Protection
- DIN-Rail Mountable
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
ZT-20xx-IOG series (referred to as ZT-IOG) is a series of ZigBee wireless communication module with Digital Input and Digital Output channels. The “IOG” in the ZT-IOG is the abbreviation for the I/O Group and means the multi-to-multi Pair-connection I/O modules. The ZT-2060-IOG module is one of the ZT-20xx-IOG series that provides both 6 digital input channels and 4 relay output channels. User can easily configure it as either a ZigBee Coordinator or a ZigBee Router via the external switches. The ZigBee Coordinator will serve as a message processing and distribution center. In other words, as long as any DI of any ZT-IOG module changes its channel state, it will immediately trigger an event and upload it to the ZigBee Coordinator for I/O updating logic calculations to determine the DO output states of the ZT-IOG system. Then, the ZigBee Coordinator will broadcast a message periodically to all ZT-IOG ZigBee Router modules for synchronizing all DO channel states to achieve the multi-to-multi I/O Pair-connection function.
| ZigBee I/O Group Module (Full Function) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Digital Input | Digital Output | |||||
| Channels | Contact | Sink/Source | Channels | Type | Sink/Source | ||
| ZT-2043-IOG | - | - | - | 14 | Open Collector | Sink | |
| ZT-2053-IOG | 14 | Dry/Wet | Sink/Source | - | - | - | |
| ZT-2055-IOG | 8 | Dry/Wet | Sink/Source | 8 | Open Collector | Sink | |
| ZT-2060-IOG | 6 | Wet | Sink/Source | 4 | Power Relay | - | |

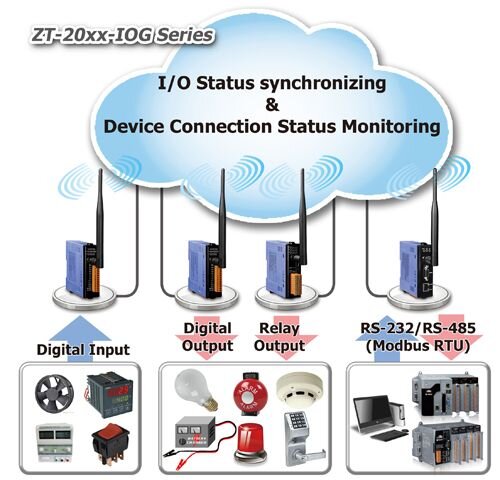

Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, Communication Line and Each Channel ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status |
1 × Power and Communication 4 × Relay Output |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz, 5 dBi Omni-directional |
| Max. Slaves | 255 |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (Default, FCC Certificated); Max. 19 dBm |
| Transmission Distance (LoS) | 700 m (Typical) |
| Digital Input | |
|---|---|
| Channels | 6 |
| Type | Isolated, Wet Contact |
| Sink / Source (NPN / PNP) | Sink / Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | Wet: Max. +1 VDC |
| Input Impedance | 3 kΩ, 0.33 W |
| Relay Output | |
|---|---|
| Channels | 4 |
| Type | Power Relay, Form A |
| Contact Rating | 5 A @ 250 VAC / 30 VDC |
| Release Time | Max. 5 ms at Rated Voltage |
| Electrical Endurance | Resistive Load: 100,000 ops. min. (10 ops / minute) |
| Mechanical Endurance | At No Load: 20,000,000 ops. min. (300 ops / minute) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 1.4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 94 × 110 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | −25 °C ~ +75 °C |
| Storage Temperature | −30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
