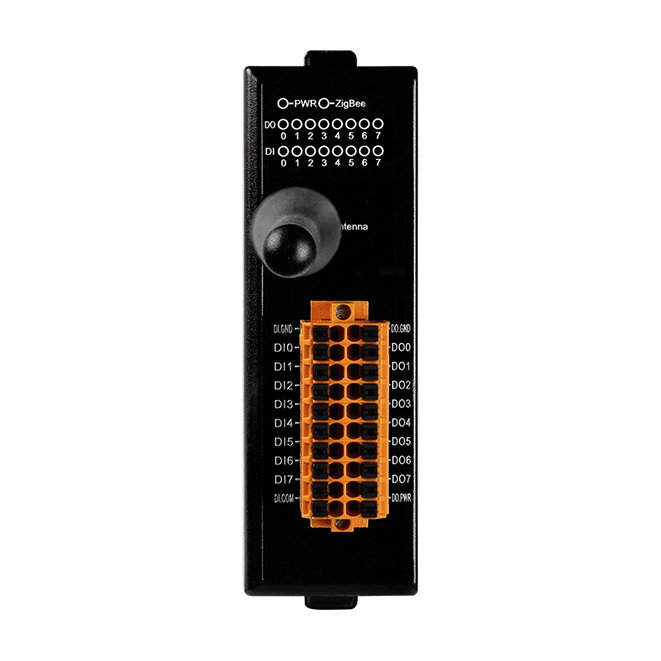

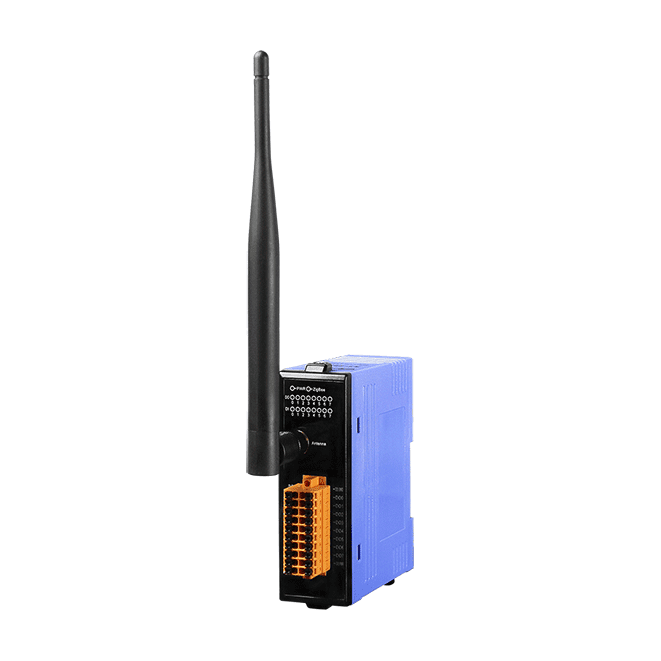

ZigBee Wireless 8-ch Isolated DI and 8-ch Isolated DO Module (ZigBee Router)(Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- Supports AES-128 Encryption for the Wireless Communication (Passive)
- Supports ZigBee Repeater Function
- 8 Digital Input Channels and 8 Digital Output Channels
- All Digital Input Channels can be used as 16-bit Counters
- Sink-type Digital Output Channels with Overload Protection
- Surge and ESD Protection
- Configurable Power-on Value and Safe Value Settings
- DIN-Rail Mountable
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ZT-2055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The ZT-2055 supports source-type output with short circuit protection. There are options for configuring power-on and safe digital output values. The ZT-2055 has 16 LED indicators to display the channel status, and has 4 kV ESD protection and 2500 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
| ZigBee I/O Module (Router) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Digital Input | Digital Output | |||||
| Channels | Contact | Type | Channels | Type | Mode | ||
| ZT-2042 | - | - | - | 4 | PhotoMOS Relay | - | |
| 4 | Open Collector | Sink | |||||
| ZT-2043 | - | - | - | 14 | Open Collector | Sink | |
| ZT-2052 | 8 | Wet | Sink / Source | - | - | - | |
| ZT-2053 | 14 | Dry / Wet | Sink / Source | - | - | - | |
| ZT-2055 | 8 | Dry / Wet | Sink / Source | 8 | Open Collector | Sink | |
| ZT-2060 | 6 | Wet | Sink / Source | 4 | Power Relay | - | |
| tZT-P4C4 | 4 | Wet | Source | 4 | Open Collector | Sink | |
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | 4 kV for Power Line |
| ESD (IEC 61000-4-2) |
4 kV Contact for Power Line, Communication Line and each Channel 8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | 3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status |
1 × Power and Communication 8 × Digital Input 8 × Digital Output |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz, 5 dBi Omni-Directional |
| Max. Slaves | 255 |
| Protocol | Supports DCON and Modbus RTU Protocols |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Digital Input / Counter | |
|---|---|
| Channels | 8 |
| Type |
Dry Contact Wet Contact |
| Sink / Source (NPN / PNP) |
Dry: Source Wet: Sink / Source |
| ON Voltage Level |
Dry: Open Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level |
Dry: Close to GND Wet: Max. +4 VDC |
| Max. Counts | 16-bit (65,535) |
| Frequency | 100 Hz Max. |
| Min. Pulse Width | 5 ms |
| Effective Distance | Max. 500 meters |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | ±70 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Open Collector |
| Sink / Source (NPN / PNP) | Sink |
| Load Voltage | +3.5 ~ 50 VDC |
| Load Current | 650 mA / Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Power On Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 96 × 110 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
