ZT-2052-IOP
ZT-2052-IOP

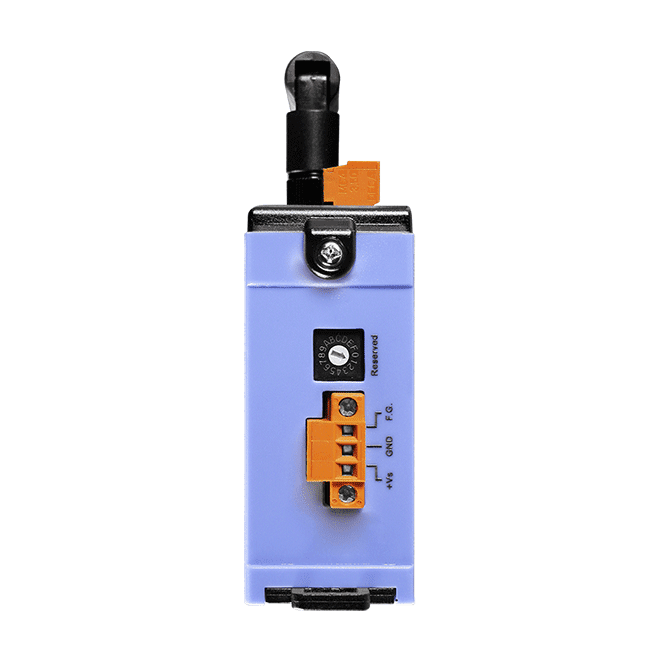

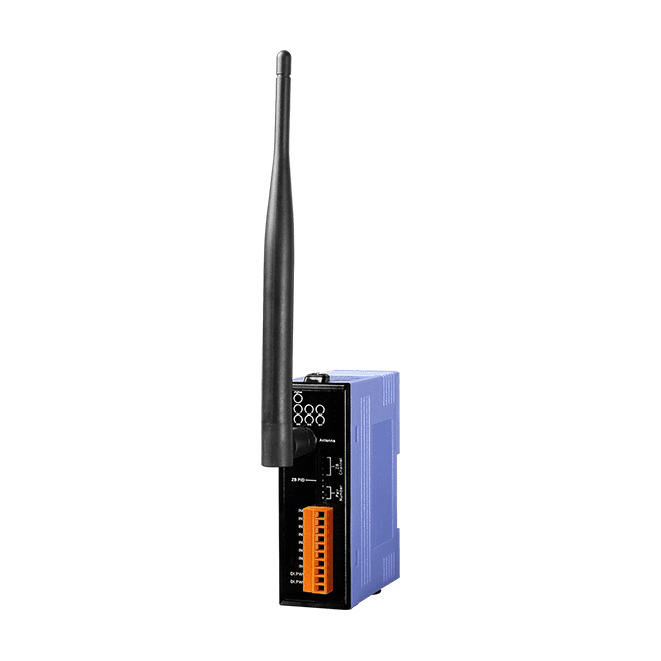

ZigBee I/O Pair-connection Module with 8-ch Isolated DI (ZigBee Coordinator)(Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- 8 Channels Pair-connection of the Digital Input
- DO Safe Value setting for Wireless Disconnection Monitoring
- Configurable I/O Pairing Number
- Surge and ESD Protection
- Supports AES-128 Encryption for the Wireless Communication
- DIN-Rail Mountable
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized. The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
| ZigBee I/O Pair-connection Module (Coordinator) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Digital Input | Digital Output | |||||
| Channels | Contact | Sink/Source | Channels | Type | Sink/Source | ||
| ZT-2052-IOP | 8 | Wet | Sink/Source | - | - | - | |
| ZT-2053-IOP | 14 | Dry/Wet | Sink/Source | - | - | - | |
| ZT-2055-IOP | 8 | Dry/Wet | Sink/Source | 8 | Open Collector | Sink | |
| ZT-2060-IOP | 4 | Wet | Sink/Source | 4 | Power Relay | - | |

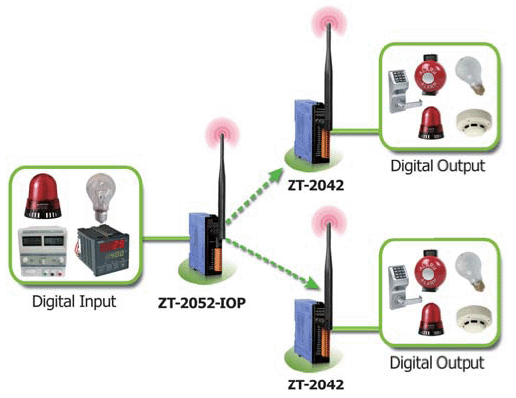

Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 Vrms |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Channel |
| LED Indicators | |
|---|---|
| Status |
1 × Power and Communication 8 × Digital Input |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz, 5 dBi Omni-directional |
| Max. Slaves | 255 |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | Wet: Max. +1 VDC |
| Input Impedance | 3 kΩ, 0.33 W |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 88 × 110 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
