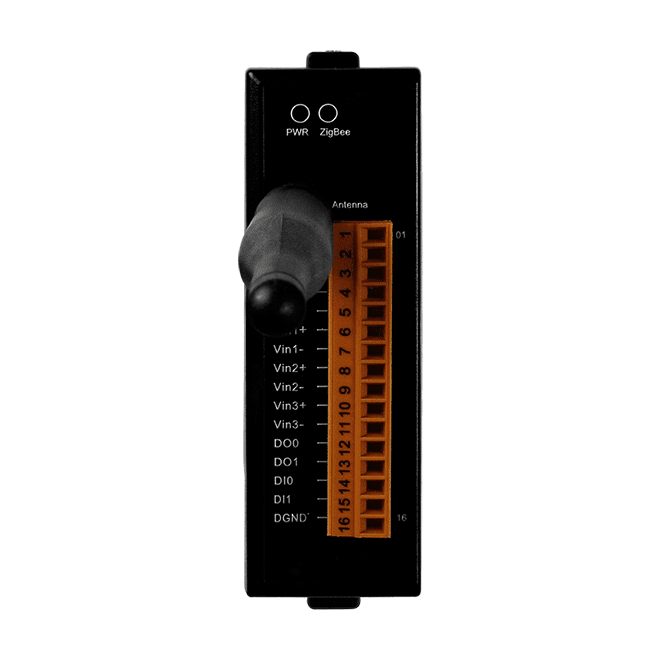

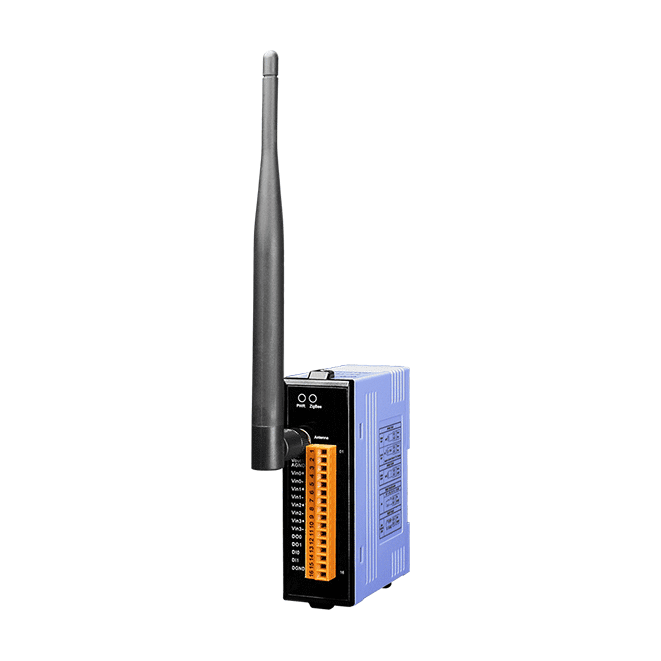

ZigBee Wireless 4-ch Voltage Input, 2-ch Voltage Output, 2-ch DI and 2-ch DO Module (ZigBee Router) (Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 4 AI, 2 AO, 2 DI and 2 DO Channels
- Individual Channel Configuration
- Overvoltage Protection is up to 240 Vrms
- Configurable Safe Value Settings
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
- Introduction

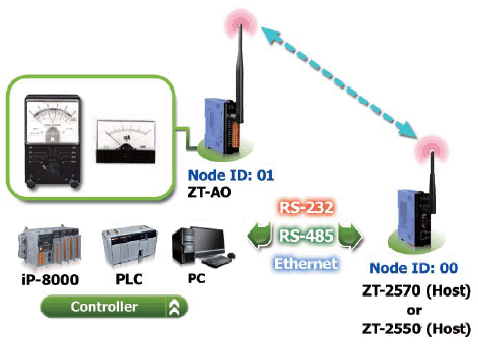

- Application
- Specification
- Download
- Get A Quote
Introduction
The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels(Current input requires optional external 125 Ω resistor), 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms overvoltage protection. There are also options for a power-on value and a safe value. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
Application
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC (for AI, AO, DI and DO) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, Communication Line and each Channel ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 × Power and Communication |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz – 5 dBi Omni-directional Antenna |
| Max. Slaves | 255 |
| Protocol | Supports DCON and Modbus RTU Protocols |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Analog Input | |
|---|---|
| Channels | 4 Differential |
| Type |
±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV or −20 mA ~ +20 mA (Requires Optional External 125 Ω Resistor) |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Samples / Second (Total) |
| Bandwidth | 15.7 Hz |
| Input Impedance | > 2 MΩ |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type | ±10 VDC, ±5 VDC, 0 ~ 10 VDC or 0 ~ 5 VDC |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Programmable Output Slope | 0.0625 ~ 512 V / Second |
| Voltage Output Capability | 20 mA @ 10 V |
| Power-on Value | Yes |
| Safe Value | Yes |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Wet Contact |
| Sink / Source (NPN / PNP) | Sink |
| ON Voltage Level | Wet: +3.5 VDC ~ +50 VDC |
| OFF Voltage Level | Wet: Max. +1 VDC |
| Input Impedance | 10 KΩ |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink / Source (NPN / PNP) | Sink |
| Load Voltage | +5 VDC ~ +50 VDC |
| Load Current | 700 mA / Channel |
| Power-on Value | Yes |
| Safe Value | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Reverse Polarity Protection) |
| Consumption | Max. 2.1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 87 × 110 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | −25 °C ~ +75 °C |
| Storage Temperature | −30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
