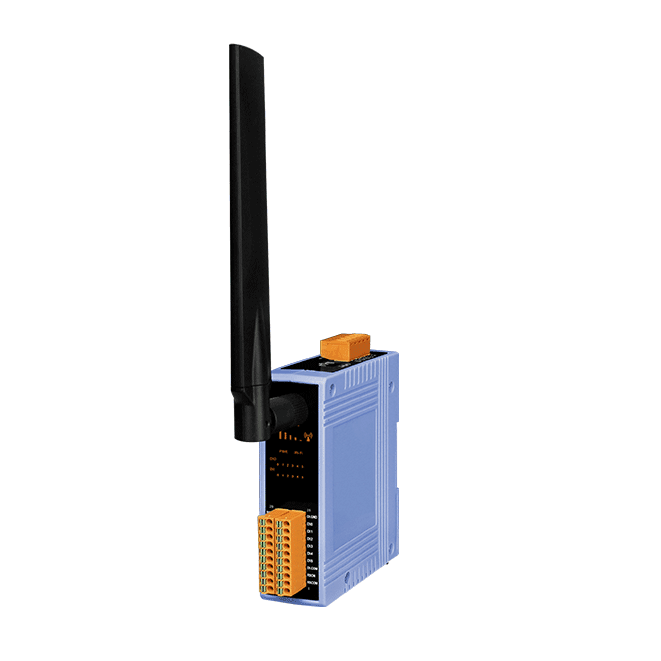

WF-2260
WF-2260
Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only)
Features
- Compatible with IEEE 802.11a/b/g/n standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus TCP protocols
- Support I/O pair connection mode
- Built-in Watchdog
- DI/Counter: 6 Channels
- Power Relay: 6 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The WF-2260 is a dual bands 2.4/5 GHz Wi-Fi interface and 8-channel isolated digital input with 32-bit counters, 8-channel sink type isolated digital output module. With the popularity of 802.11 network infrastructure, the WF-2260 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2260 also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
| Relay I/O | |||||||
|---|---|---|---|---|---|---|---|
| Model | WiFi | DI / Counter | Relay Output | ||||
| Frequency | Channel | Type | Sink / Source | Channel | Type | Max. Load Current @ 25°C | |
| WF-2060 | 2.4 GHz | 6 | Dry, Wet |
Dry: Source Wet: Sink / Source |
6 | Power Relay (Form A) | 5 A / channel |
| WFM-R14 | 2.4 GHz | - | - | - | 14 |
2 Power Relays (Form A) 12 Power Relays (Form C) |
5 A / channel (Form A) 6 A / channel (Form C) |
| WF-2260 | 2.4 / 5 GHz | 6 | Dry, Wet |
Dry: Source Wet: Sink / Source |
6 | Power Relay (Form A) | 5 A / channel |

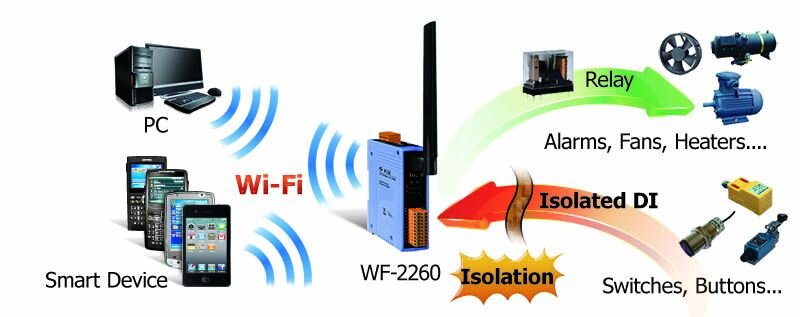

Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | DI: 3750 VDC |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 a/b/g/n |
| RX Sensitivity |
-95 dBm @ 2.4 GHz -90 dBm @ 5 GHz |
| Output Power | 15 dBm (Max.) |
| Mode | Infrastructure & Limit-AP |
| Encryption | WEP, WPA and WPA2 |
| Antenna |
Omni-Directional 3 dBi @ 2.4 GHz 5.5 dBi @ 5 GHz |
| Digital Input / Counter | |
|---|---|
| Channels |
6 Counters: 6 |
| Type |
Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND Wet: +10 ~ 50 VDC |
| OFF Voltage Level |
Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 8K Hz Max. |
| Relay Output | |
|---|---|
| Channels | 6 |
| Type | Power Relay (SPST-NO) |
| Contact Rating |
Form A: 5 A 250 VAC (47 ~ 63 Hz) 5 A 30 VDC |
| Operate Time | Form A: 10 ms |
| Release Time | Form A: 5 ms |
| Electrical Endurance | 100,000 times min. |
| Mechanical Endurance | 20,000,000 times min. |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.6 W |
| Mechanical | |
|---|---|
| Dimensions (mm) |
33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | 25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
