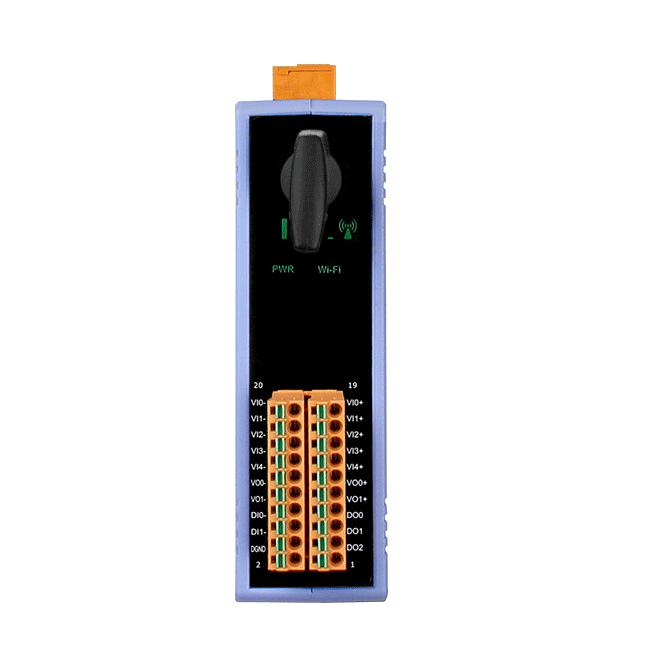

WF-2226
WF-2226
Wi-Fi I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO (Asia Only)
Features
- Compatible with IEEE 802.11a/b/g/n standards
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus TCP protocols
- Built-in Watchdog
- Built-in I/O
AI: 5 Channels
AO: 2 Channels
DI/Counter: 2 Channels
DO: 3 Channels
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The WF-2226 is a multifunction module with dual bands 2.4/5 GHz Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current. With the popularity of 802.11 network infrastructure, the WF-2226 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2226 also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
| Multifunction I/O (Asia Only) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | WiFi | AI | AO | DI | DO | ||||
| Frequency | Channel | Voltage & Current Input | Channel | Voltage & Current Output | Channel | Type | Channel | Type | |
| WF-2026 | 2.4 GHz | 5 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA |
2 |
+0 ~ +5 V, +0 ~ +10 V, ±5 V, ±10 V +0 ~ +20 mA, +4 ~ +20 mA |
2 | Dry (Source) | 3 | Open Collector (Sink) |
| WF-2226 | 2.4 / 5 GHz | 5 |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA |
2 |
+0 ~ +5 V, +0 ~ +10 V, ±5 V, ±10 V +0 ~ +20 mA, +4 ~ +20 mA |
2 | Dry (Source) | 3 | Open Collector (Sink) |

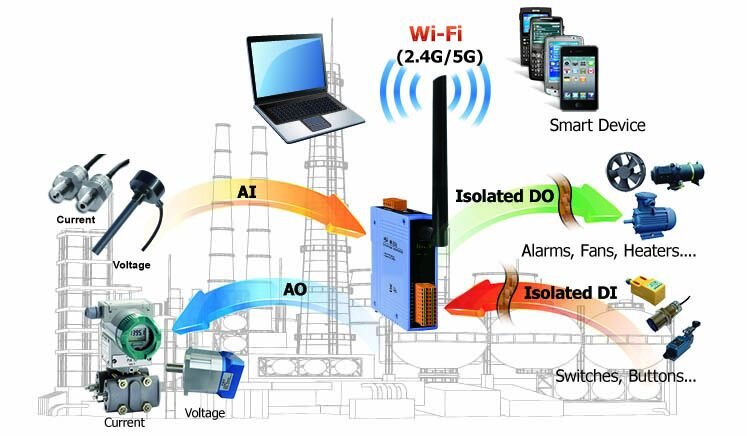

Application
Specification
| Isolation | |
|---|---|
| Intra-module Isolation |
Power: 3000 VDC DO: 3750 VDC DI: 3750 VDC |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 a/b/g/n |
| RX Sensitivity |
-95 dBm @ 2.4 GHz -90 dBm @ 5 GHz |
| Output Power | 15 dBm (Max.) |
| Mode | Infrastructure & Limit-AP |
| Encryption | WEP, WPA and WPA2 |
| Antenna | Omni-Directional 3 dBi @ 2.4 GHz; 5.5 dBi @ 5 GHz |
| Analog Input | |
|---|---|
| Channels | 5 (Differential) |
| Type |
Voltage Current |
| Range |
Voltage: ±150 mVDC, ±500 mVDC, ±1 VDC, ±5 VDC, ±10 VDC Current: 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable) |
| Resolution | 6-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance |
Voltage: 2 MΩ Current: 140 Ω |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | Yes, 50 mA @ 110 VDC |
| Individual Channel Configuration | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type |
Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC Current: +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Voltage Output Capability | 10 VDC @ 20 mA |
| Power-on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| Digital Input/Counter | |
|---|---|
| Channels | 2 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
|---|---|
| Channels | 3 |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | +3.5 ~ +50 V |
| Load Current | 700 mA per channel |
| Overvoltage Protection | 60 VDC |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| Power | |
|---|---|
| Reverse Polarity Protection | +10 VDC ~ +30 VDC |
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) |
33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
