tNS-200GIN
tNS-200GIN
10/100/1000 Base-TX PoE Injector, +48 VDC input, PoE 30W
Features
- Auto-detection of PD (powered devices)
- Over-temperature, over-current and over/under-voltage detection
- tNS-200GIN supplies up to 30W
- Tiny packaging fi ts on your DIN-Rail Mounting
- +46 ~ +53 VDC power input
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The tNS-200GIN Single Port PoE Injector supports PoE powered devices in industrial environments. The tNS-200GIN delivers both data and power over a single standard Ethernet cable to a PoE Powered Device designed to receive both Data and Power through its RJ-45 port connector.

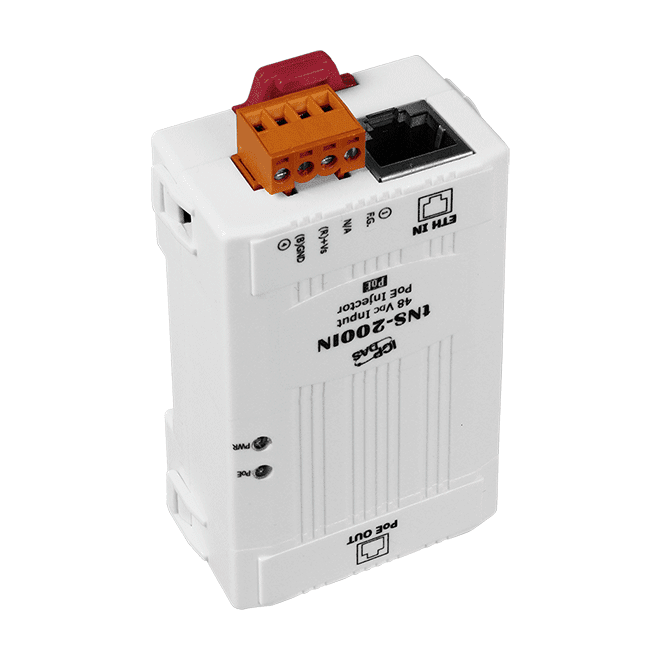

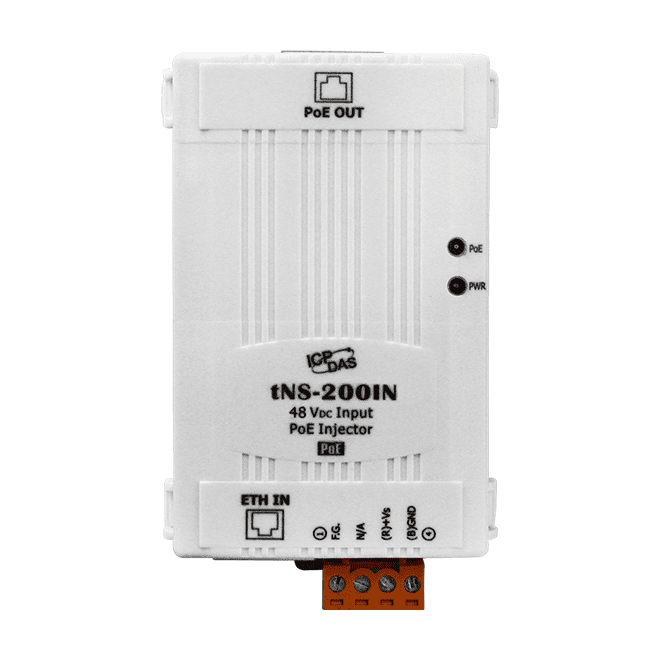

| PoE Injector | |||||
|---|---|---|---|---|---|
| Model | Ethernet | PoE | Power Input | ||
| Port | Speed | Port | Power | ||
| tNS-200IN | 1 x RJ-45 Input | 10/100 M | 1 x PSE Output | Up to 15.4 W | +46 ~ +53 VDC |
| tNS-200IN-24V | +18 ~ +32 VDC | ||||
| tNS-200GIN | 10/100/1000 M | Up to 30 W | +46 ~ +53 VDC | ||
| tNS-200GIN-24V | +18 ~ +32 VDC | ||||

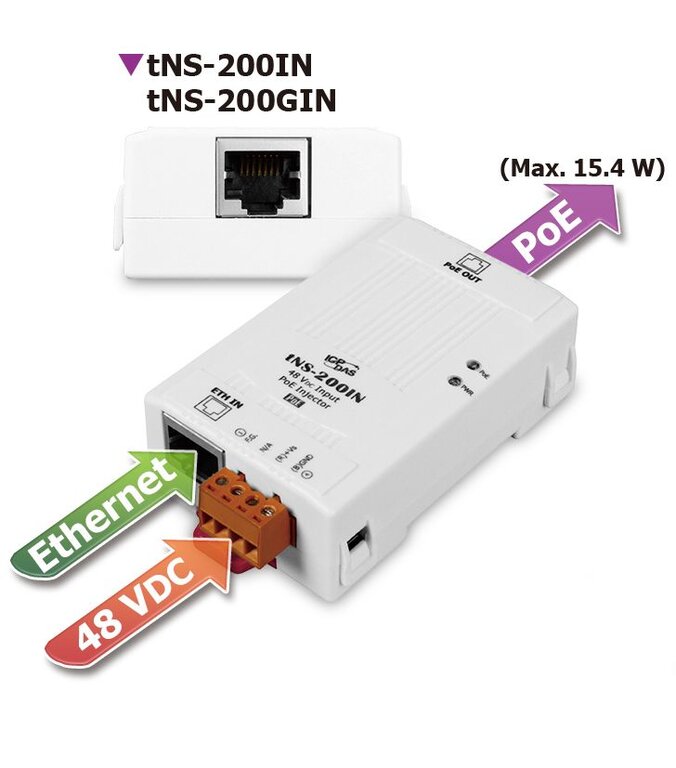

Application
Specification
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
|---|---|
| Ports |
1 × RJ-45 in, 1 × PoE out, 10/100/1000Base-T(X) |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +53 VDC |
| Consumption | 0.7 A @ 48 VDC with PD full loading |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 52 × 86 × 27 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 % ~ 90 % RH, non-condensing |
