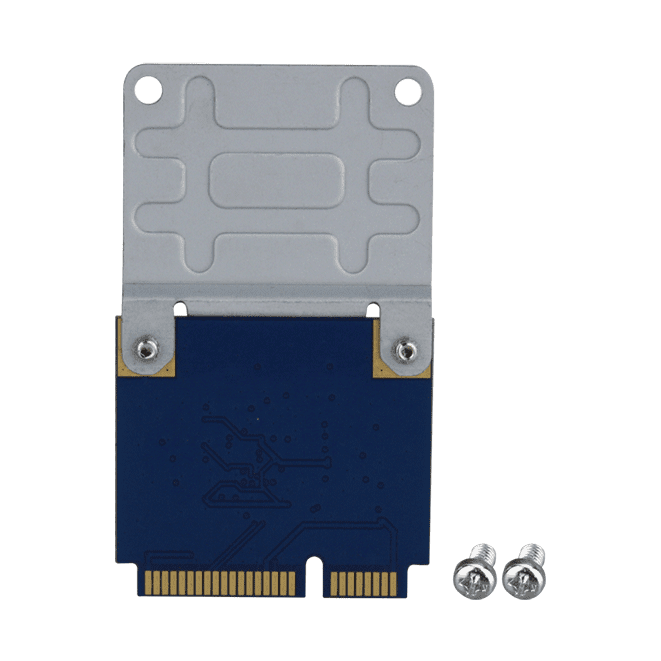

RYWDB00
RYWDB00
Wi-Fi wireless expansion card (Asia Only)
Features
- Compliant to single-spatial stream IEEE 802.11 a/b/g/n with dual band (2.4 and 5 GHz) support
- Support for 20 MHz and 40 MHz channel bandwidths
- Transmit power up to +18 dBm with integrated PA Receive sensitivity as low as -96.5 dBm
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
RYWDB00 is a wireless network expansion card that provides a comprehensive multi-protocol wireless connectivity solution, including 802.11 a/b/g/n (2.4 GHz and 5 GHz), and supports mini PCIe slot (signal type USB2.0 HS).
| Wireless Modules | ||||||
|---|---|---|---|---|---|---|
| Model | Standard | Number of Connections | Transmission Power | Receive Sensitivity | Interface | Related Products |
| RYWDB00 | IEEE 802.11a/b/g/n | Max. 16 Clients (AP Mode) |
2.4 GHz: 18 dBm 5 GHz: 13.5 dBm |
2.4 GHz: -96.5 dBm 5 GHz: -89 dBm |
miniPCIe (USB 2.0 HS) |
GRP-2841M GRP-2841M-5GE |
| M2-JODY-W377-00C | 802.11a/b/g/n/ac/ax | Max. 64 Clients (AP Mode) |
2.4 GHz: 19 dBm 5 GHz: 16 dBm |
2.4 GHz: -97 dBm 5 GHz: -90 dBm |
M.2 / Mini PCIe (adapter) (PCIe) |
GRP-2841M GRP-2841M-5GE |
Application
Specification
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11a/b/g/n |
| Encryption | Open / WPA / WPA2 |
| Data Transmission Rate |
802.11b: 1, 2, 5.5, 11 Mbps 802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: MCS0 to MCS7 |
| Client | Max. 16 Clients (AP mode) |
| Channels |
2.4 GHz: 1–13 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 |
| Power | |
|---|---|
| Input Range | +3.1 VDC ~ +3.5 VDC |
| Consumption | 1.5 W (0.45 A @ 3.3 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30.0 × 26.8 × 3.0 (W × L × H) |
| Environment | |
|---|---|
| Operating Temperature | -40 ~ +85 °C |
