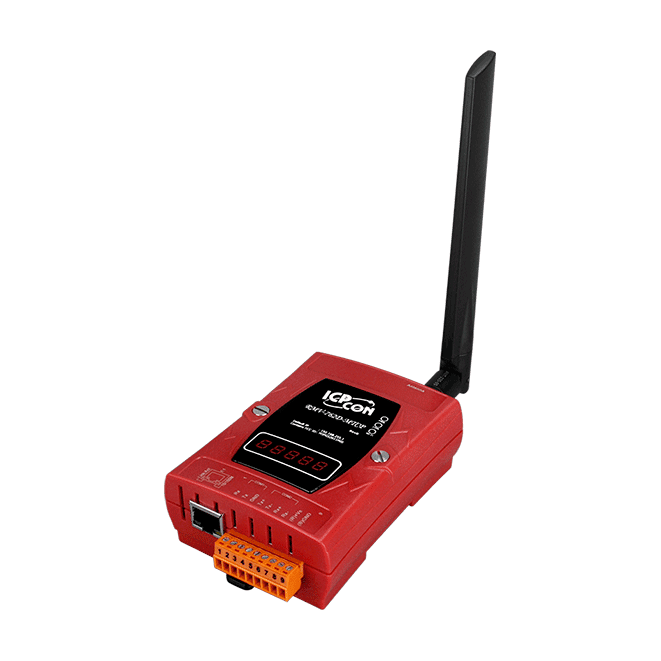

RMV-762D-MTCP
RMV-762D-MTCP
MB TCP/RTU Data-Exchange With Wi-Fi Interface Gateway (Asia Only)
Features
- Supports pair-connection applications
- Supports Virtual COM applications
- Application Modes: Virtual COM, MB TCP Server/Client, MB RTU Master/Slave
- Full compatible with IEEE 802.11 a/b/g
- Frequency: 2.4/5 GHz.
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Support Wi-Fi Limit-AP and Infrastructure mode.
- Easy firmware update via Ethernet
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
RMV-762D-MTCP is a wireless Modbus TCP/RTU gateway. The IEEE 802.11 a/b/g 2.4GHz and 5GHz are available on the Wi-Fi interface. It exchanges Modbus command from Modbus TCP/RTU master to Modbus RTU/TCP slave. Modbus TCP command can be transceived not only Ethernet port but also Wi-Fi interface. It supports VxComm and Pair-Connection functions. Users can choose Ethernet mode or Wi-Fi mode to do the pair connection, which provides TCP data tunneling between two serial devices.

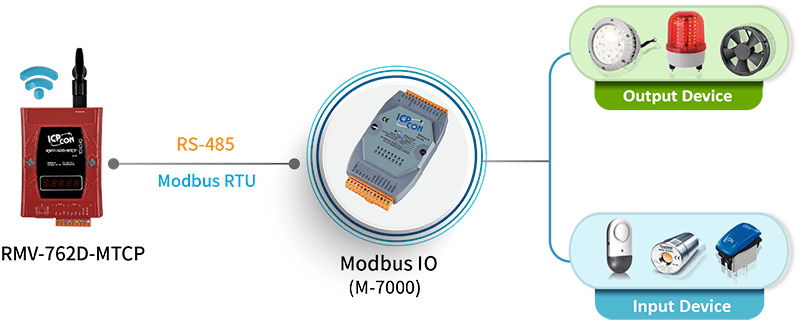

Application
Specification
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 m (LOS) |
| Standard | IEEE 802.11 a/b/g |
| Mode | Limit-AP & Infrastructure |
| Encryption | WEP, WPA, WPA2 |
| Channels |
2.4 GHz: CH1–11 5 GHz: CH36, 40, 44, 48 |
| Antenna |
Omni-Directional 3 dBi @ 2.4 GHz 5.5 dBi @ 5 GHz |
| Ethernet | |
|---|---|
| Ports | 1 × RJ-45, 10/100 Base-TX, 8-pin |
| COM Ports | |
|---|---|
| Ports |
1 × RS-232 1 × RS-485 1 × RS-422 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 0.05 A @ 24 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 106 × 120 (W × L × H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 95% (non-condensing) |
