PROFI-2541-SC
PROFI-2541-SC

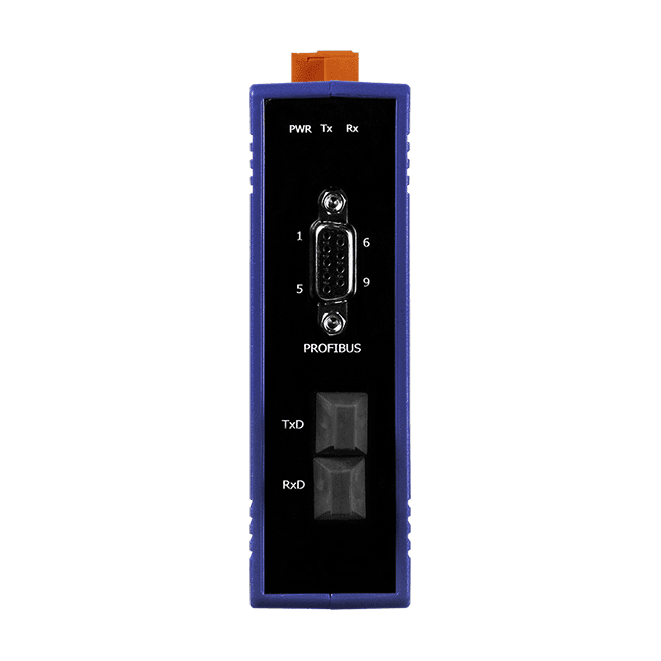

PROFIBUS to Multi-mode Fiber Converter
Features
- Support for PROFIBUS DP protocol
- Detect transmission rate automatically(Max. 3Mbps)
- Transparency on both side
- Transparency on both side
- Fiber Wave Length: 850 nm
- Network Isolation Protection
- 3000VDC isolation protection on PROFIBUS side
- 4KV ESD Protection (contact for any terminal)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, PROFI-2541 is specially designed for converting PROFIBUS signal to fiber optic cables. The fiber length between two PROFI-2541s can be up to 1.4km (4593ft). PROFI-2541 is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.
| Model Name | I-7550-B | I-7550E | PROFI-2510 | PROFI-2541 | PROFI-2541-SC | PROFI-2542 | PROFI-2542-SC |
|---|---|---|---|---|---|---|---|
| I-7550-M | I-7550E-M | ||||||
| Description | PROFIBUS → RS-232/422/485 Converter | PROFIBUS → Ethernet Converter | Isolated PROFIBUS Repeater | PROFIBUS → Fiber Converter | |||
| PROFIBUS Channel | 1 | 2 | 1 | ||||
| PROFIBUS Baud Rate (bps) | 9.6 kbps ~ 12 Mbps | 9.6 kbps ~ 3 Mbps | 9.6 kbps ~ 12 Mbps (DIP switch) | ||||
| PROFIBUS Protocol | DP-V0 Slave | DP-V0 / DP-V1 / DP-V2 | |||||
| PROFIBUS Address | 0 ~ 126 (DIP switch) | — | |||||
| Transmission Distance (m) | Depends on baud rate | ||||||
| COM 1 | RS-232 / RS-422 / RS-485 | RS-232 | — | ||||
| COM 1 Baud Rate (bps) | 1.2 kbps ~ 115.2 kbps | 115.2 kbps | — | ||||
| Fiber Interface | |||||||
| Fiber Channel | — | 1 | |||||
| Fiber Connector | — | ST (Multi-mode) | SC (Multi-mode) | ST (Single-mode) | SC (Single-mode) | ||
| Fiber Transmission Distance (m) | — | 1.4 km (62.5/125 μm) | 10 km (9/125 μm) | ||||
| Ethernet Interface | |||||||
| Ethernet Speed | — | 10 / 100 Mbps | — | ||||
| Ethernet Protocol | — |
TCP / UDP Server / Client |
— | ||||

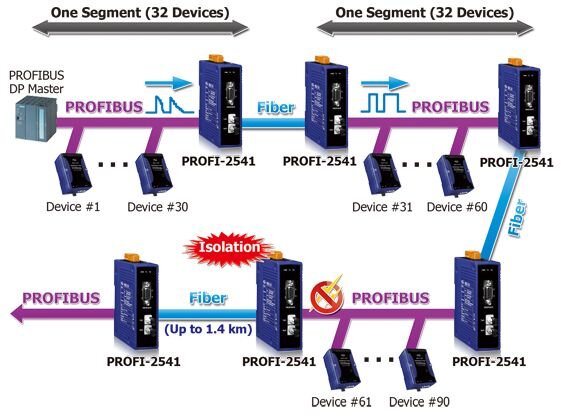

Application
Specification
| LED Indicators | |
|---|---|
| Status | PWR LED, TxD LED, RxD LED |
| Fiber | |
|---|---|
| Fiber Cable | 62.5 / 125 µm |
| Wavelength | 850 nm |
| PROFIBUS | |
|---|---|
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps |
| Isolation | 3000 VDC (DC-to-DC), 2500 Vrms (bus-to-logic) |
| Power | |
|---|---|
| Consumption | 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33.0 × 126.8 × 104.5 (W × L × H) |
| Installation | DIN Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 °C to +75 °C |
| Storage Temperature | -30 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
Download
