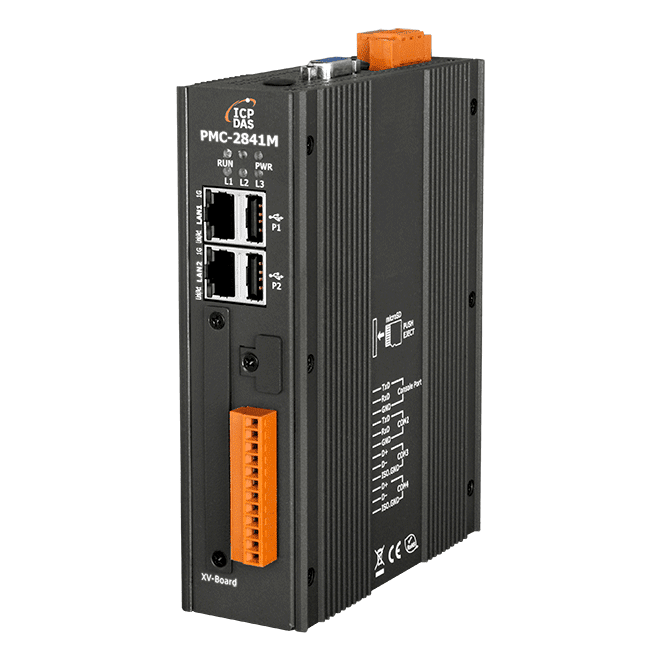

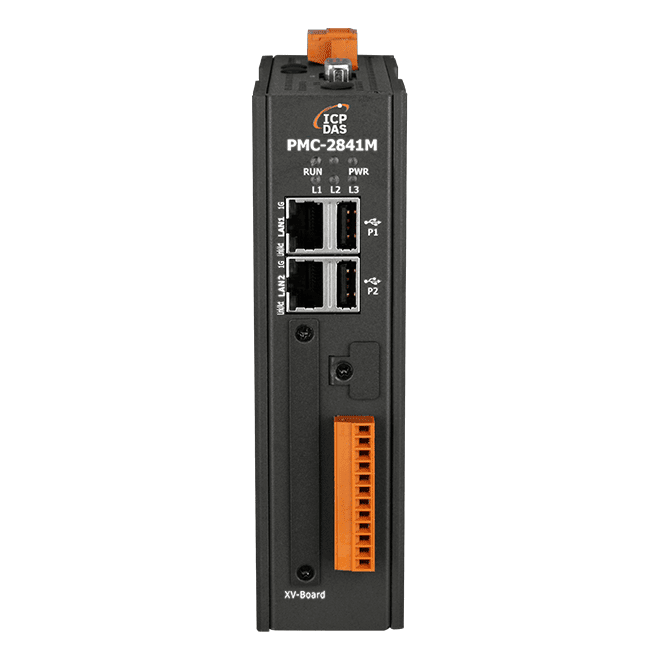

Advanced Industrial IoT Power Meter Concentrator
Features
- No extra software tool is required, using browsers to perform system operations
- No more programming, Web pages provided for control logic editing.
- Support at most 48 modules (Include ICP DAS Modbus Power Meters and Modbus I/O modules)
• COM3 and COM4 can connect to Max. 16 Modbus RTU modules individually.
• LAN can connect to Max. 16 Modbus TCP modules.
• Support at most 4 ICP DAS PM-4324 series Power Meters - Display real-time or historical power data by browser. Provide power data statistics report by browser.
- Power data logger and data files send back function supported.
- Built-in IF-THEN-ELSE logic engine for power demand management
- Support LINE, Telegram, WeChat and Email message notification
- Support Modbus TCP/RTU, SNMP, MQTT, FTP and CGI protocols.
- Support connection with IoT Cloud Platform (Microsoft Azure, IBM Bluemix, Amazon Web Services) and IoTstar Cloud Management Software
- Complete information security protection mechanism - HTTPS, VPN, SNMP v3,SFTP, FTPS, and Blacklist/Whitelist.
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
PMC-2841M is the IIoT Power Meter Concentrator ICP DAS provide for the era of IoT and Cloud computing. It provides flexible integration with the ICP DAS power meters via RS-485 or Ethernet interface, and features various functions such as: measure the power consumption of the devices, energy usage analysis, power data log operation, power demand management and alarm notification functions. PMC-2841M offers a user-friendly and intuitive web site interface that allows users to implement the Energy monitoring system just a few clicks away; no programming is required. By working with the power meters, IF-THEN-ELSE logic rule execution ability, and LINE/WeChat/Telegram/Email alarm message notification functions, PMC-2841M offers more thought-out power demand management functions, and is able to perform load shedding of the devices if required. In addition, PMC-2841M supports VPN Client, SNMP agent v3, SFTP, FTPS and HTTPS. With a variety of Security mechanism and protocols provided by PMC-2841M, it can meet the requirements of information Security when building an IoT Cloud power monitoring system.
Application
Specification
| Software | |
|---|---|
| Protocol |
• Modbus TCP & Modbus RTU • FTP Client (SFTP/FTPS) & Server (TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Publish & Subscribe; SSL/TLS) • CGI Command (Send & Receive) • Active I/O (Modbus TCP Master / MQTT Publish / SNMP Trap) • DDNS • VPN |
| Function |
• Web Interface for Configuration • IF-THEN-ELSE Logic (Unlimited rules) • Power meters & I/O monitoring and control • Data Logger operation • Timer operation (Unlimited sets) • Schedule operation (Advanced, Unlimited sets) • Internal Register operation (70 sets) • Instant messaging (LINE, Telegram, WeChat) • Email sending (SSL & non-SSL) • SNTP Time Synchronization |
| Power Management |
• Power Data Display • Historical Power Reports • Power Demand Management • PUE Setting and Display |
| IoT Service Integration |
• ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Platform • IBM Bluemix IoT Platform |
| CPU Module | |
|---|---|
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | microSD socket with 4 GB microSD card (supports up to 2 TB microSDHC card) |
| LED Indicators | |
|---|---|
| Status |
• 1 x Power • 1 x Running |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| Remote Module Support |
• M-7000/DL/IR Series Module • Modbus RTU Slave Module • Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports |
• COM 1: Reserved • COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. • COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. • COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
|---|---|
| Input Range | 12 ~ 48 VDC |
| Consumption | 10 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 42 × 164 × 129 (W × L × H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
