PM-3114-CPS series
PM-3114-CPS series
Single-phase Smart Power Meter, CANopen Series
Features
- True RMS Power Measurements
- Single-phase 4 Loops Energy Analysis for 1P2W
- Two Independent Loops Reference Voltages
- Current Measurements Up to 200 A with Different CT Ratio
- Voltage Measurements Up to 300 V
- Clip-on CT for Easy Installation
- W Accuracy Better than 0.5% (PF=1)
- Supports 2 Power Relay Output (Form A)
- IEC 61010-1 and EN 61010-1
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3114 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3114 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages.
|
Single-phase / Three-phase / Multi-circuit Smart Power Meters (EtherNet/IP, CANopen)
|
||||||||||
| Model | Phase | Loops | Bi-directional Energy | CT Included | Max. Voltage | Max. Current | Max. CT Inner Diameter | CT Cable Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EtherNet/IP | CANopen | |||||||||
| - | PM-3112-xxx-CPS | Single | 2 | - | Yes | 300V | 200A | 24mm | 1.8m | |
| - | PM-3114-xxx-CPS | Single | 4 | - | Yes | 300V | 200A | 24mm | 1.8m | |
| - | PM-3112-xxxP-CPS | Single | 2 | - | Yes | 300V | 200A | 24mm | 4m | |
| - | PM-3114-xxxP-CPS | Single | 4 | - | Yes | 300V | 200A | 24mm | 4m | |
| - | PM-3033-CPS | Three | 1 | Yes | - | 500V | 5A | - | - | |
| PM-3133-xxxP-EIP | PM-3133-xxxP-CPS | Three | 1 | Yes | Yes | 500V | 400A | 36mm | 4m | |
| - | PM-3133P-CPS | Three | 1 | Yes | - | 500V | Depends on selected CT (333 mV input) | |||
| PM-3133-RCTxxxP-EIP | PM-3133-RCTxxxP-CPS | Three | 1 | Yes | Yes | 500V | 4000A | 185mm | 4m | |
| PM-3133i-xxxP-EIP | PM-3133i-xxxP-CPS | Three | 1 | Yes | Yes | 600V | 400A | 185mm | 4m | |
| PM-4324-xxxP-EIP (1 main circuit) |
PM-4324-xxxP-CPS (1 main circuit) |
Single / Three | 24/8 | Yes | Yes | 500V | 400A | 36mm | 4m | |

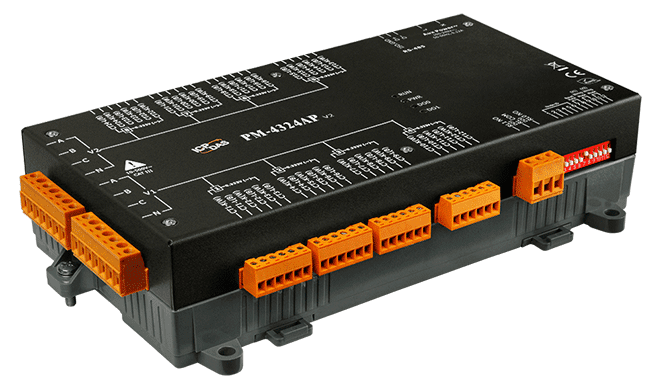

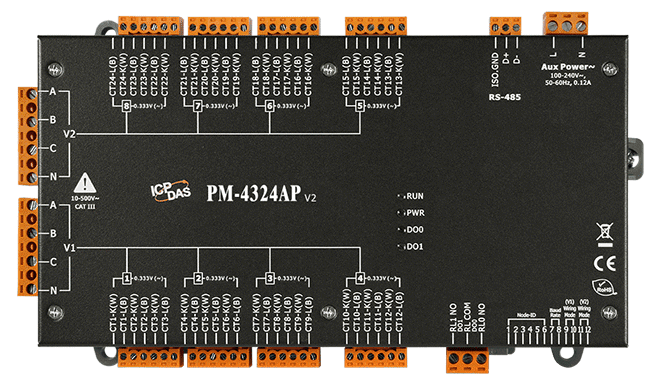

| PM-4324A-xxxP-EIP>br> (1 or 2 main circuit) | PM-4324A-xxxP-CPS (1 or 2 main circuit) |
Single / Three | 24/8 | Yes | - | 500V | Depends on selected CT (333 mV input) | |||
Application
Specification
| AC Power Measurement | |
|---|---|
| Wiring | 1P2W-1CT |
| Loops | 1-phase: 4 |
| Input Voltage | 10 ~ 300 V |
| Input Current |
PM-3114-100-CPS: CTØ10 mm (0.05 A ~ 60 A) PM-3114-100P-CPS: CTØ10 mm (0.05 A ~ 60 A) PM-3114-160-CPS: CTØ16 mm (0.1 A ~ 100 A) PM-3114-160P-CPS: CTØ16 mm (0.1 A ~ 100 A) PM-3114-240-CPS: CTØ24 mm (0.15 A ~ 200 A) PM-3114-240P-CPS: CTØ24 mm (0.15 A ~ 200 A) |
| Input Frequency | 50/60 Hz |
| Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
|---|---|
| Channels | 2 |
| Type | Power Relay |
| Contact Rating |
Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| CANopen | |
|---|---|
| Baud Rate |
125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable |
| Protocol | CANopen |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
