PM-2133D-RCT-MTCP series
PM-2133D-RCT-MTCP series

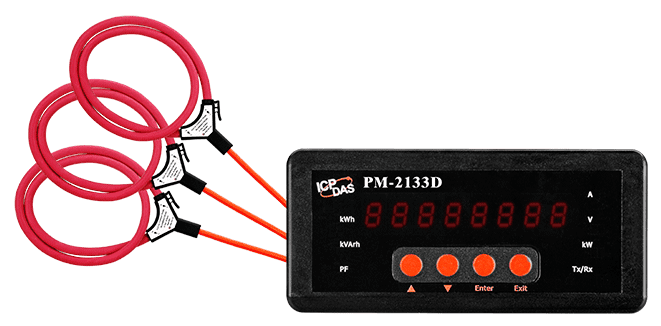

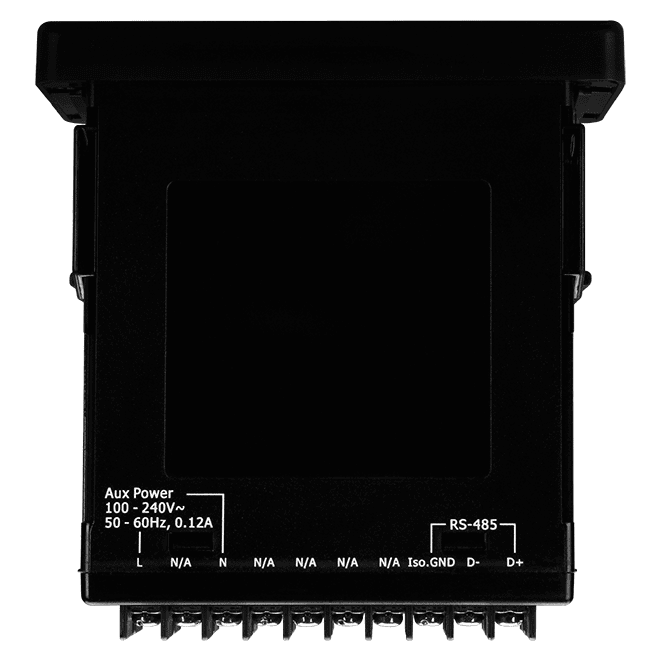

3-phase Smart Power Meter with LED Display, Modbus TCP Series, With Rogowski Coil CT
Features
- Bi-directional Energy
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 4000 A
- Voltage Measurements Up to 500 V
- Rogowski Coil Soft CT for Easy Installation
- Accuracy Better than 2% (PF=1; Input Current >50A; for -500P and -1000P)
- Accuracy Better than 2% (PF=1; Input Current >200A; for -2000P and -4000P)
- Total Harmonic Distortion (THD)
- 8-Digit LED Display
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
ICP DAS brings the most powerful, cost-effective Smart Power Meters PM-2133D-RCT series that access real-time electric usage for three-phase power measurement. The PM-2133D-RCT series can be applied to the low voltage primary side and/or medium/high voltage secondary side, and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipment in real-time under operation. In addition to its compact size and cost performance, the additional Rogowski Coil CT is suitable for high current measurements from 500A to 4000A, large wire diameters (e.g. busway conductor), and for installation in tight spaces. It operates over a wide input voltage range of 10 ~ 500 VAC which allows worldwide compatibility.This meter has LED display shows power.
|
Single-phase / Three-phase / Multi-circuit Smart Power Meters (Modbus-RTU / Modbus-TCP)
|
|||||||||
| Model | Phase | Loops | Bi-directional Energy | CT Included | Max. Voltage | Max. Current | Max. CT Inner Diameter | CT Cable Length | |
|---|---|---|---|---|---|---|---|---|---|
| Modbus/RTU | Modbus/TCP | ||||||||
| PM-2133D-xxxP (with LED Display) |
PM-2133D-xxxP-MTCP (with LED Display) |
Three | 1 | Yes | Yes | 500V | 400A | 36mm | 4m |
| PM-2133DP (with LED Display) |
PM-2133DP-MTCP (with LED Display) |
Three | 1 | Yes | - | 500V | Depends on selected CT (333 mV input) | ||
| PM-2133D-RCTxxxP (with LED Display) |
PM-2133D-RCTxxxP-MTCP (with LED Display) |
Three | 1 | Yes | Yes | 500V | 4000A | 185mm | 4m |
| PM-5133-xxxP (with LCD Display) |
- | Three | 1 | Yes | Yes | 500V | 400A | 36mm | 4m |
| PM-5133-RCTxxxP (with LCD Display) |
- | Three | 1 | Yes | Yes | 500V | 4000A | 185mm | 4m |

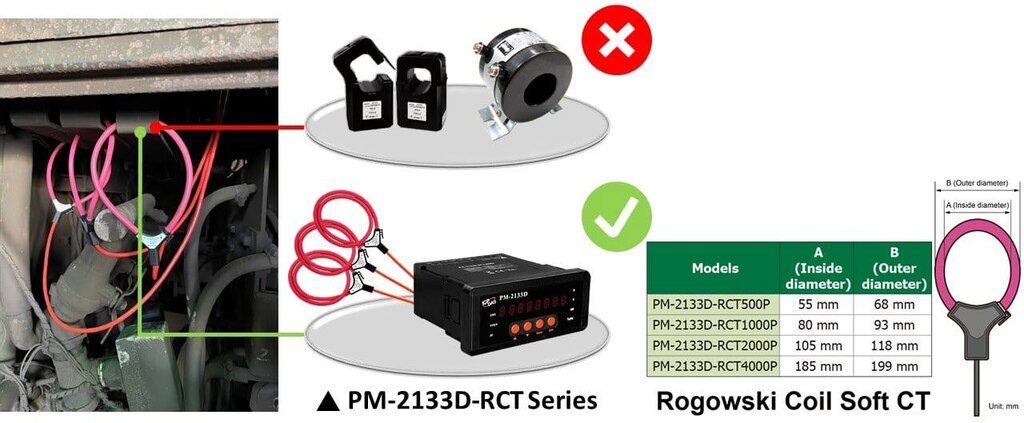

Application
Specification
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops |
3-phase: 1; 1-phase: 3 @ 1P2W-1CT, 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current |
PM-2133D-RCT500P-MTCP: CTØ55 mm (5 A ~ 500 A) PM-2133D-RCT1000P-MTCP: CTØ80 mm (5 A ~ 1000 A) PM-2133D-RCT2000P-MTCP: CTØ105 mm (5 A ~ 2000 A) PM-2133D-RCT4000P-MTCP: CTØ185 mm (5 A ~ 4000 A) |
| Input Frequency | 50 Hz (Range 45 ~ 55 Hz) / 60 Hz (Range 55 ~ 65 Hz) |
| W Accuracy |
Better than 2% (PF=1) Condition: Input current > 50A (For -500P, -1000P) Input current > 200A (For -2000P, -4000P) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz) |
| 1 Second | |
| LED Display | Yes, 8-digit |
| Ethernet | |
|---|---|
| Ports | 1x RJ45, 10/100 Base-TX |
| Protocol | Modbus TCP |
| Power | |
|---|---|
| Input Range | +85 ~ +264 VAC (277 VAC available) |
| Consumption | 6 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 110 x 115 x 50 (W x L x H) |
| Installation | Panel Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
