PISO-CAN400U-D
PISO-CAN400U-D

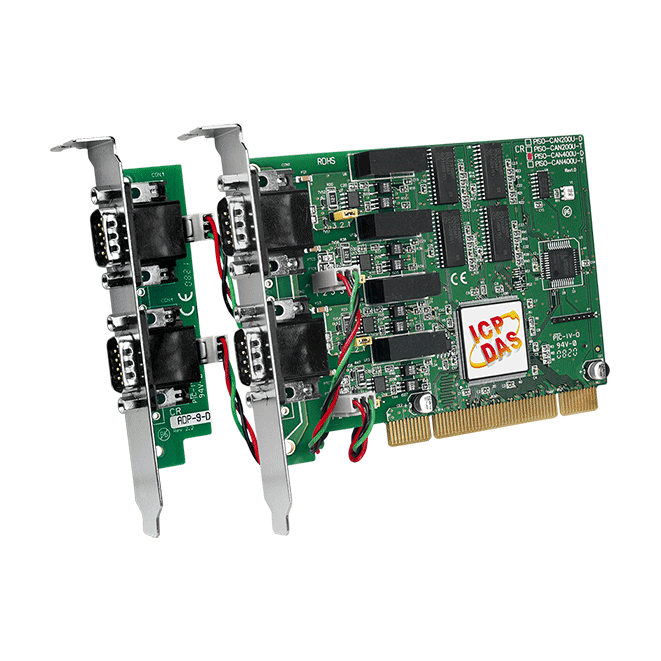

4-Port CAN Universal PCI board with 9-pin D-sub Connectors (9-pin D-Sub Connector)
Features
- Four independent CAN bus 2.0A/2.0B communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120Ω terminal resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play
- Universal PCI card, supports both 5V and 3.3V PCI bus
- We have verified to drive 100 CAN nodes at the same time
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN400U-D can represents an economic solution of an active CAN board. It has two or four independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN400U-Duses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.
| Model | High Performance CAN FD Card | |
|---|---|---|
| Module Name | PISO-CAN200U-FD-D | PISO-CAN400U-FD-D |
| PISO-CAN200U-FD-T | PISO-CAN400U-FD-T | |
| Hardware | ||
| PC Bus Interface | Universal PCI | Universal PCI |
| On-board CPU | None | None |
| CAN Interface | ||
| Channel Number | 2 | 4 |
| Baud Rate |
CAN: 10 ~ 1000 kbps CAN FD (data): 100 ~ 10000 kbps |
|
| CAN Filter | Yes | |
| CAN Isolation |
3000 VDC (DC-DC) 2500 Vrms (photo-coupler) |
- |
| Terminal Resistor | Built-in 120Ω | |
| Driver | ||
| DLL Library | C#, VB.NET, VC++.NET | |
| Windows Driver | Windows 7 / 8 / 10 (32/64-bit) | |
| Linux Driver | No | No |
| InduSoft Driver | No | No |
| LabVIEW Driver | No | No |
| Software & Toolkit | ||
| PISO-CANFD Utility | Yes | Yes |
Application
Specification
| Software | |
|---|---|
| Driver |
Windows XP / 7 / 8 / 10 (32/64-bit) Linux 2.6.x ~ 5.4.0 LabVIEW, DASYLab, InduSoft |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#, VB.NET |
| PC Bus | |
|---|---|
| Type |
Universal PCI 3.3 V / 5 V, 33 MHz, 32-bit Plug and Play |
| CAN | |
|---|---|
| Controller | NXP SJA1000T (16 MHz clock) |
| Ports | 4 |
| Baud Rate | 10 kbps ~ 1 Mbps |
| Isolation |
3000 VDC (DC-to-DC) 2500 Vrms (photo-coupler) |
| Terminal Resistor | Jumper selectable 120 Ω termination |
| Power | |
|---|---|
| Consumption | 300 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 126 × 85 × 22 (W × L × D) |
| Environment | |
|---|---|
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -20 to +70 °C |
| Humidity | 5 to 85% RH (non-condensing) |
