PFN-2019/S
PFN-2019/S

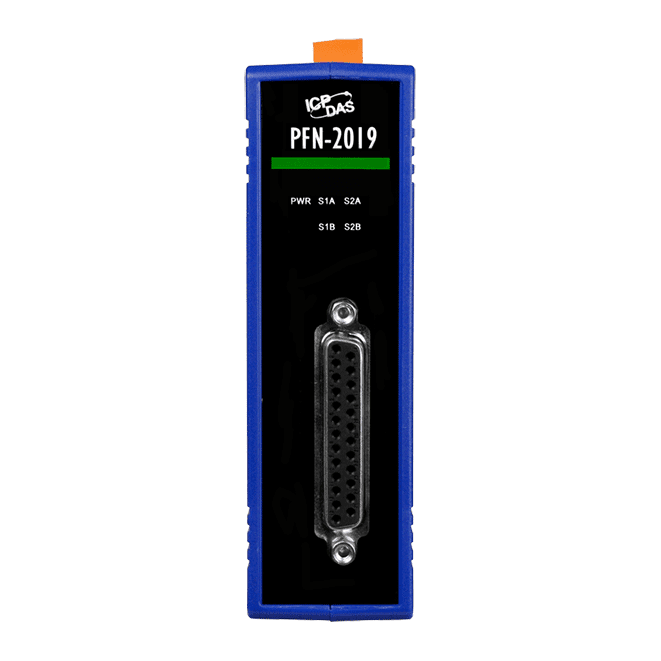

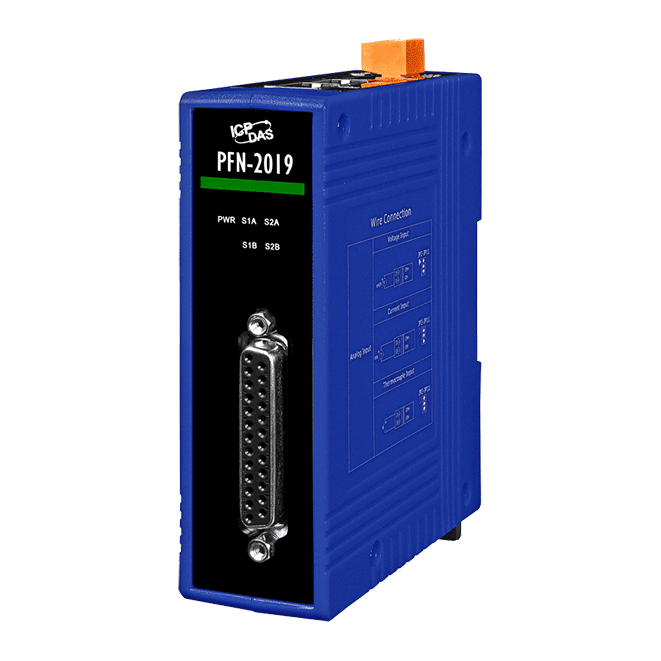

PROFINET I/O Module (10-channel Universal Analog Input Module)
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution & 10Hz sample rate
- Supports thermocouple devices with J,K,T,E,R,S,B,N,C
- 4 kV Contact ESD protection for any terminal
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
| Model | Analog Input Modules |
|---|---|
| Module Name |
PFN-2019/S
|
| Channels | 10 (Differential) |
| Sensor Type | Thermocouple (J, K, T, E, R, S, B, N, C) |
| Voltage Input Range | ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V |
| Current Input Range | ±20 mA, 0 ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Sampling Rate | 10 Hz |
| Accuracy | ±0.1% of FSR |
| EDS Protection | 4 kV Contact for each channel |
| Model | Analog Input Modules |
|---|---|
| Module Name | PFN-2019/S |
| Channels | 10 (Differential) |
| Sensor Type | Thermocouple (J, K, T, E, R, S, B, N, C) |
| Voltage Input Range | ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V |
| Current Input Range | ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Sampling Rate | 10 Hz |
| Accuracy | ±0.1% of FSR |
| ESD Protection | 4 kV Contact for each channel |

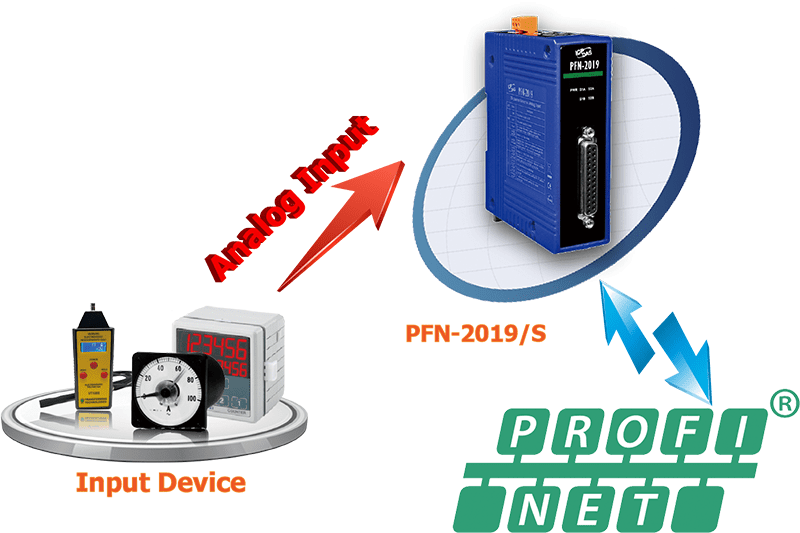

Application
Specification
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash Memory | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | Built-in (CPU) |
| LED Indicators | |
|---|---|
| Status Indicators | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Analog Input | |
|---|---|
| Channels | 10-channel differential |
| Input Range |
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0–20 mA, 4–20 mA (Jumper Selectable), Thermocouple Types: J, K, T, E, R, S, B, N, C |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Open Wire Detection | Yes |
| Ethernet | |
|---|---|
| Supported Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
|---|---|
| Conformance Class | Class B |
| Supported Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | Min. 1 ms |
| Protocol Type | PROFINET IO Device |
| Power | |
|---|---|
| Power Consumption | 5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 × 93 × 126 (W × L × H) |
| Installation | DIN-Rail Mount |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
