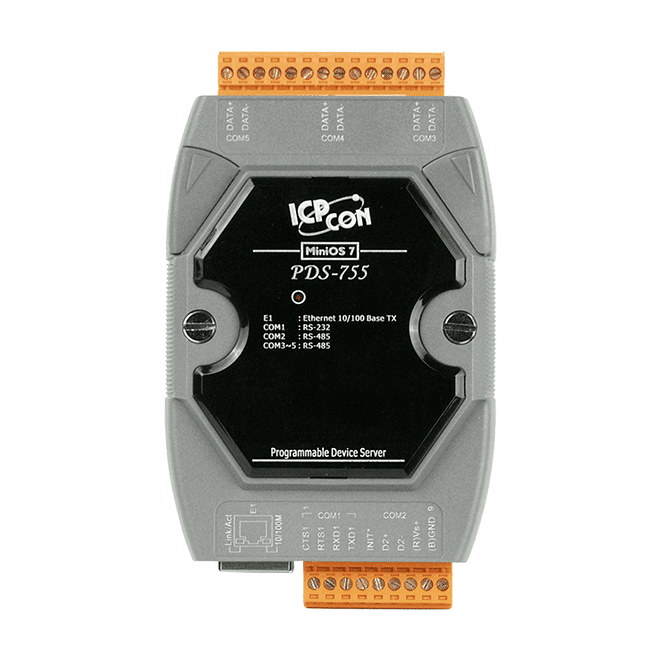

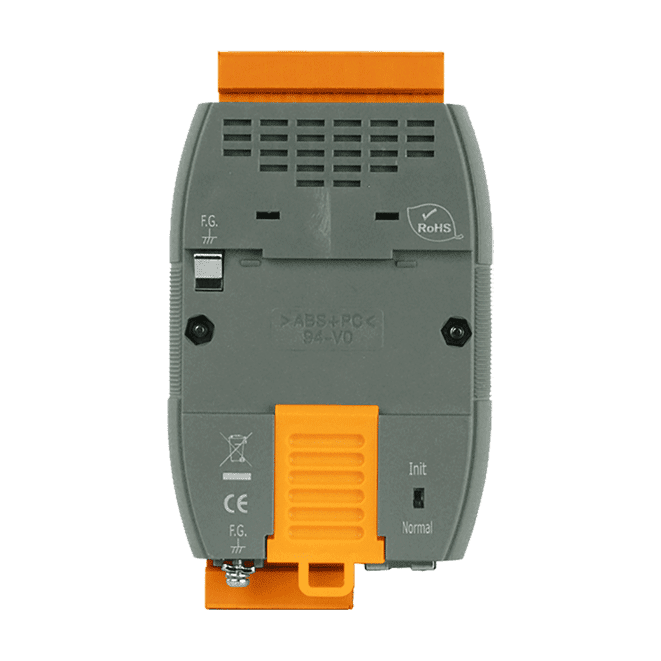

PDS-755
PDS-755
Programmable (1x RS-232 and 4x RS-485) Serial-to-Ethernet Device Server
Features
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
- Supports Modbus TCP to RTU/ASCII Gateway
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- Built-in High Performance MiniOS7 from ICP DAS
- Palm-Sized with multiple Serial Ports
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses. It also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus TCP protocol.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.
The PDS(M)-755(D) and PPDS(M)-755(D)-MTCP is equipped with 1 RS-232 port and 4 RS-485 ports. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
| PDS-700 Series Programmable Device Servers | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RS-232 | RS-485 | RS-422/485 | DI/DO | Ethernet | COM1 | COM2 | COM3 | COM4 | COM5 | COM6 | COM7 | COM8 | Similar |
| PDS-720(D) | 1 | 1 | – | – | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | – | – | – | – | – | – | I-7188E2(D) |
| PDS-721(D) | 1 | 1 | – | 6/7 | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | – | – | – | – | – | – | I-7188EA(D) |
| PDSM-721(D) | Same as PDS-721 (metal version) | – | ||||||||||||
| PDS-732(D) | 2 | 1 | – | 4/4 | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | 5-wire RS-232 | – | – | – | – | – | I-7188E3(D)-232 |
| PDS-734(D) | 1 | 1 | 1 | 4/4 | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | RS-422/485 | – | – | – | – | – | I-7188E3(D) |
| PDS-742(D) | 3 | 1 | – | – | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | 5-wire RS-232 | 9-wire RS-232 | – | – | – | – | I-7188E4(D) |
| PDS-752(D) | 4 | 1 | – | – | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | 5-wire RS-232 | 5-wire RS-232 | 5-wire RS-232 | – | – | – | I-7188E5(D) |
| PDS-755(D) | 1 | 4 | – | – | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | 2-wire RS-485 | 2-wire RS-485 | 2-wire RS-485 | – | – | – | I-7188E5(D)-485 |
| PDS-782(D) | 7 | 1 | – | – | 10/100 M | 5-wire RS-232 | 2-wire RS-485 | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | I-7188E8(D) |
|
Note: 1. D version modules include a 7-segment LED display. 2. M version modules use a metal case. 3. DI/DO column shows channel counts. 4. Some models do not support DIO. |
||||||||||||||
Application
Specification
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash |
512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
|---|---|
| Ports | 1 x 5-wire RS-232 4 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity |
None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit |
7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM5 |
| Stop Bit | 1, 2: for COM1 ~ COM5 |
| Node Address | 254 (max.) |
| Power | |
|---|---|
| Consumption | 2.0 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
