NTS-201-E
NTS-201-E
Ethernet (Modbus) TCP To LoRa Interface Converter
Features
- NTS-201-E : Ethernet TCP to LoRa
- NTS-201-E-Modbus : Ethernet Modbus TCP to LoRa
- CPU : 32 bits MCU ,40 MHz , 16KB SRAM, 128KB Flash ROM
- LoRa : Semtech SX1272
- Freq. : ISM band 862 ~ 936MHz
- Receiver Sensitivity : -137 dBm
- Transmit Output Power : 20 dBm
- Sleep Current : 3uA (at power down state)
- TX current < 140 mA@20 dbm , RX current < 10 mA
- Security processor ( 128/192/256 bits AES )
- Packet engine up to 256 bytes with CRC
- Antenna : SMA Type , 2 dBi , changeable
- Distance : Up To 1500~7500 Meters in free space
- Data Rate : 0.244 ~ 18.2K bps (LoRa) / 300 K bps (FSK) Application mode : Star
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction

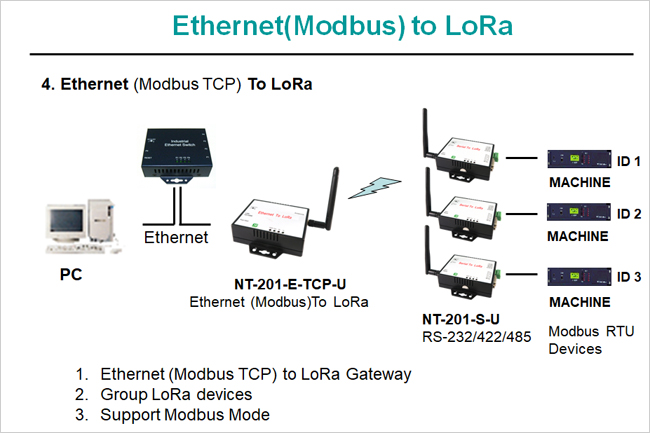

Application
Specification
|
NTS-201-E : Ethernet TCP to LoRa NTS-201-E-Modbus : Ethernet Modbus TCP to LoRa |
|
|---|---|
| General | |
| CPU | 32-bit MCU, 40 MHz, 16 KB SRAM, 128 KB Flash ROM |
| Protocol | Supports Modbus or Transparent mode (configurable) |
| LoRa Specifications | |
| Chipset | Semtech SX1272 |
| Frequency | ISM band 862 ~ 936 MHz |
| Receiver Sensitivity | -137 dBm |
| Transmit Power | 20 dBm |
| Sleep Current | 3 µA (power-down state) |
| Current Consumption | TX < 140 mA @ 20 dBm, RX < 10 mA |
| Security | AES 128 / 192 / 256-bit |
| Packet Engine | Up to 256 bytes with CRC |
| Antenna | SMA type, 2 dBi, replaceable |
| Range | Up to 1500 ~ 7500 m (free space) |
| Data Rate | 0.244 ~ 18.2 Kbps (LoRa) / 300 Kbps (FSK) |
| Application Mode | Star topology |
| Ethernet Port | |
| Port Type | RJ-45 connector |
| Speed | 10 / 100 Mbps (auto-detect) |
| Protocols | ARP, IP, ICMP, UDP, TCP, HTTP, DHCP |
| Modes | TCP Server / TCP Client / UDP / Virtual COM / Pairing |
| Setup | HTTP browser configuration |
| Security | Login password protection |
| Isolation | Built-in 1.5 KV magnetic isolation |
| Modbus Support | Modbus TCP ↔ RTU / ASCII (Slave modes supported) |
| Other Details | |
| Setup Tool | Windows utility |
| Power | DC 9 ~ 24 V / 150 mA @ 9 V, 60 mA @ 24 V |
| LED Indicators | SYS (green), Rx (red), Tx (green) |
| Operating Temp | -10°C ~ 70°C |
| Storage Temp | -20°C ~ 80°C |
| Dimensions | 100 × 90 × 25 mm (W × D × H) |
| Weight | 150 g (excluding power) |
