NT-AIDI-MOD16
NT-AIDI-MOD16
Low Power 4G Data Logger
Power Options
- Option C1: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 20000mAH), 5 year life (note 1)
- Option C2: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 8000mAH) 2 year life (note 2)
- Option C3: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 5000mAH) 1year life (note 3)
- Introduction
- Application
- Specification
- Download
- Get A Quote
Introduction
Power Options
- Option C1: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 20000mAH), 5 year life (note 1)
- Option C2: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 8000mAH) 2 year life (note 2)
- Option C3: External Solar Panel Built in Controller & Li-Ion Rechargeable Battery Pack (3.7VDC, 5000mAH) 1year life (note 3)

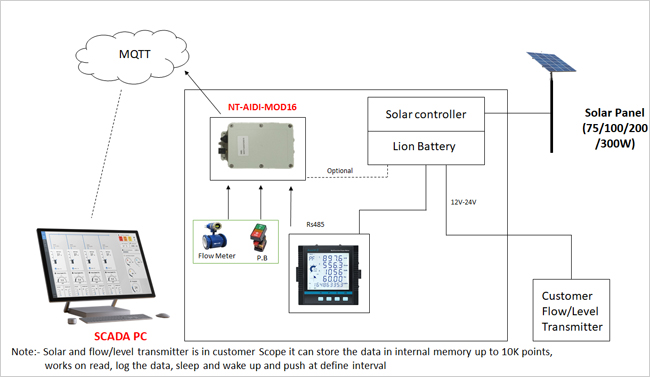

Application
Specification
| Model Selection | 5000mA | 8000mA | 20000mA |
|---|---|---|---|
| Poly Carbonate Waterproof | IP67 | IP67 | IP67 |
| High Capacity Battery (20Ah) | — | — | ✔ |
| 8Ah Rechargeable Battery | — | ✔ | — |
| 5Ah Rechargeable Battery | ✔ | — | — |
| Low Power Sleep Mode | ✔ | ✔ | ✔ |
| Low Voltage Alert | ✔ | ✔ | ✔ |
| Solar Panel Controller | ✔ | ✔ | ✔ |
| Built-in 12VDC Output | ✔ | ✔ | ✔ |
| AD Channel-1 (4-20mA) | 1 | 1 | 1 |
| Pulse Channel | 0 | 0 | 0 |
| Alarm Input (DI) | 1 | 1 | 1 |
| Relay Output (DO) | 0 | 0 | 0 |
| Modbus Device Support | 16 | 16 | 16 |
| Modbus Interface | RS-485 | ||
| Modbus Meter Support | ANY | ||
| Floating Point Registers | 16 | ||
| Integer Registers | 16 | ||
| Internal Memory | 512KB | ||
| SMS Alarm | Text Data Only | ||
| Data Logging Interval | 1–60 minutes, 2 hours | ||
| Data Upload Interval | 5 minutes – 24 hours | ||
| Protocol | CWT / TCP / MQTT | ||
| Data Transmission | 4G Data | ||
| PC Communication Port | USB | ||
| Local Setup | USB – Web Browser | ||
| Remote Command | SMS or GPRS | ||
| GSM Module | Cinterion MC55i Quad Band (850/900/1800/1900 MHz) | ||
| Setup Software | Web Browser | ||
| Centre Software | VSPE, RTU Center (99 data loggers) | ||
| Optional Software | King View SCADA | ||
